Energy Wizard Reporter - Grid

To display this form select : Store Data\Grid

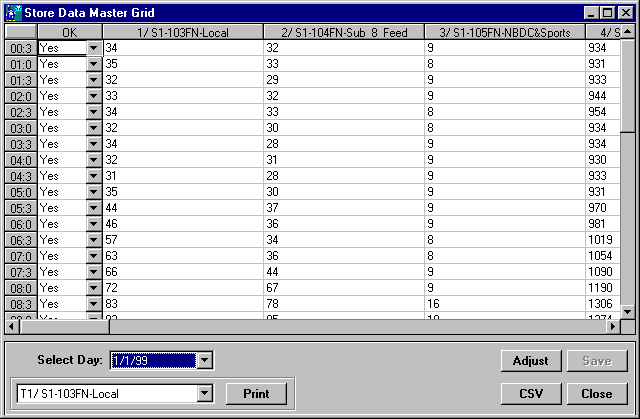

The master grid allows the viewing, editing and exporting of the Energy Wizard store data.

The data is displayed in a grid or spread sheet style format, one day's data being displayed at a time.

The "OK" column is the flag for "Outage" data. If it is set to "Yes" then the data is considered to be good and is not Outage data. If it is set to "No" then the data is considered to be not good and so is considered to be Outage data which would normally be replaced by the respective composite data in a costing calculation.

Each subsequent column holds the store data for an Energy Wizard Tag.

The Master Grid form includes the following:

• "Select Day" combo box: Select the day as required
• "Print" button and Tag Select combo box: To print all of the store data for a Tag for the month, first select the required tag and then click on the "Print" button.
• "Adjust" button: This will permanently replace all Outage data with the respective Composite data.
• "CSV" button: This will export all of the store data to a *.csv file for analysis in another program such as Excel.
• "Save" button: If making changes to the store data, click on the Save button to permanently save the changes.
