| Station Setup |
| 2300-D16 |
Station Summary

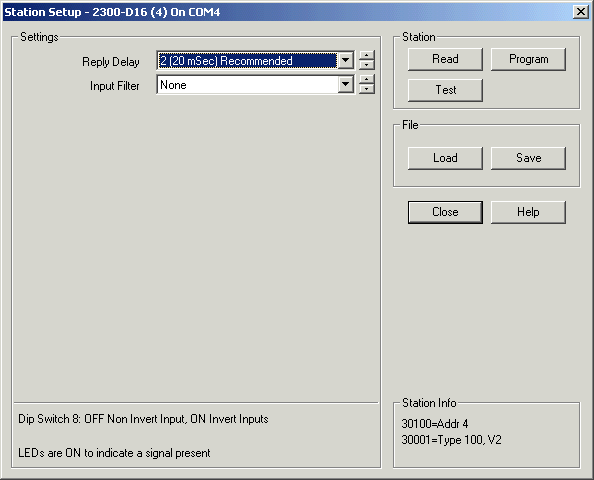

Station Programming dialog
After changes are made, click "Program" to write changes to station.
Settings Table
| COMS Reply Delay | 0 to 990 mSec (20 mSec recommended) |
| Input Filter | None 1 (10 mSec) to 999 (9990 mSec) Use to filter out noise on DI signals. If set to too high a value will reduce frequency of inputs that can be read. |
DIP Switch Table
| Switch 1-7 | Address (See Address Table) |
| Switch 8 | Input Invert OFF = No Invert ON = Invert Input |
| Switch 9 | No Action, Leave OFF |
| Switch 10 | No Action, Leave OFF |
LED Indications
| 1-16 INPUT LED OFF | Input OFF |
| 1-16 INPUT LED ON | Input ON |
| P | Flashing - Station is Powered up and working |
| R | Flashes to indicate good modbus message arrived for this station |
| T | Flashes to indicate reply message has been sent from this station |
Station Info (Read from station)
| 30100 | Dip Switch settings |
| 30001 | Station Type and Software Version (Type = 100) |

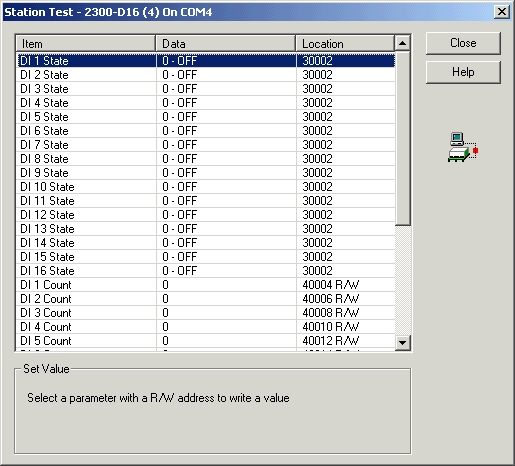

Station Test Dialog

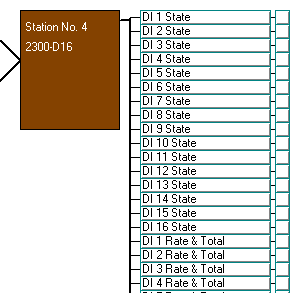

Station Map Display
Note : Use DI Rate & Total for counter input rate and totaliser information into lines and tags
