You make 2300-NET settings, by using a web browser and pointing to the ip.htm page of the 2300 NET as follows:

http:\\192.168.0.112\ip.htm for the default address use the tools in MicroScan Setup Tools, Configure 2300-NET

Example Recommended settings for parts of ip.htm for the 2300-NET

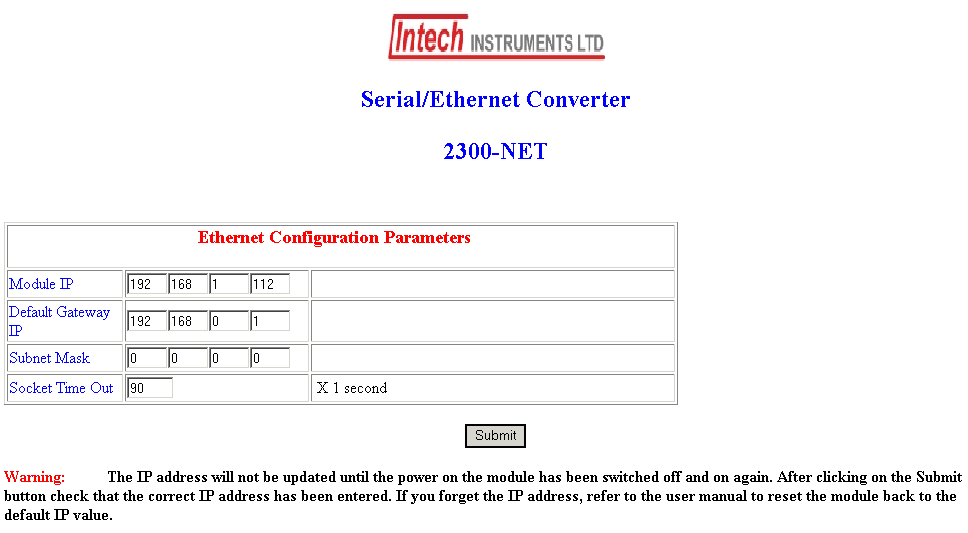

IP Settings

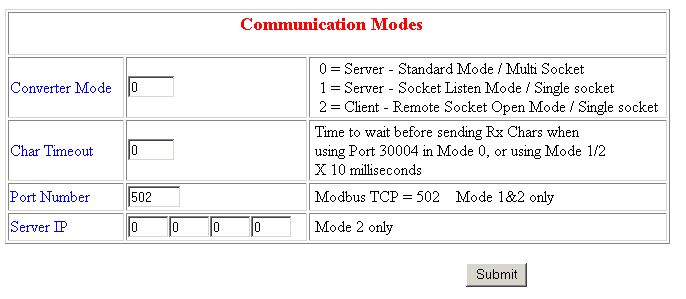

Communications Modes

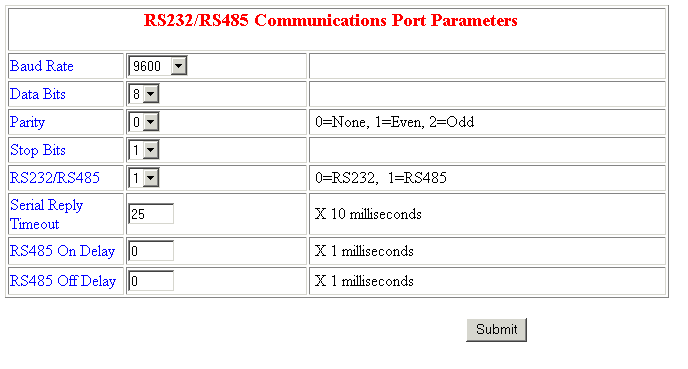

RS232/RS485 Settings
