You use the 2300 Station Programming dialogs to setup, and test 2300-XX stations.

To access:

• On Setup Tools, Click Program Station Setups

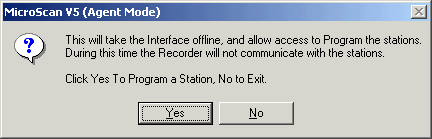

  Click Yes.

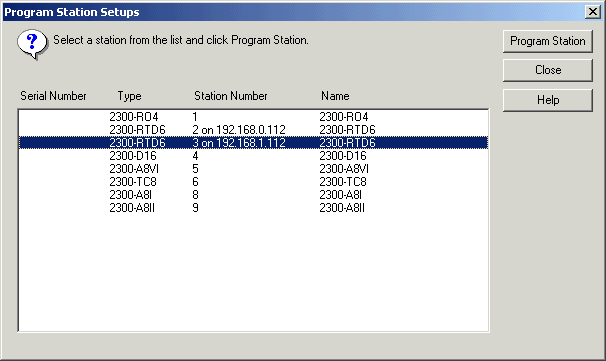

  On the Program Station Setups dialog, select the station required and click Program Station.


• On Configure Pages and Lines, select the station required on the station map shown on the right of the window (use next, prev buttons or click a line attached to the station) and click Program Setup

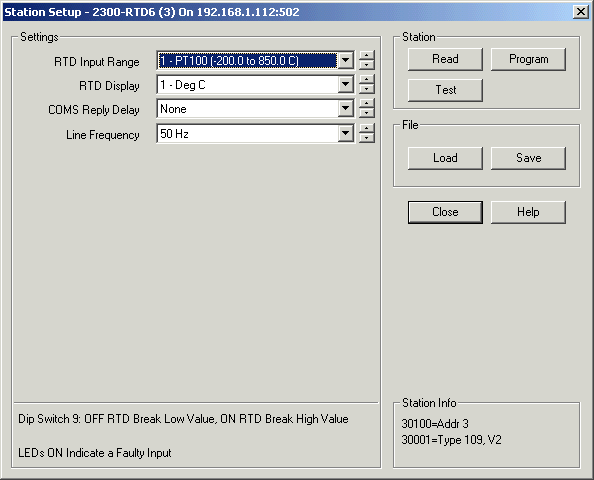

In either way, the 2300 station programming dialog is displayed (example for 2300-RTD6)

When first displayed, the settings are read from the station.

To make changes, change the items in "Settings" and click "Program" to write to the station.

To Test the station, click the Test button

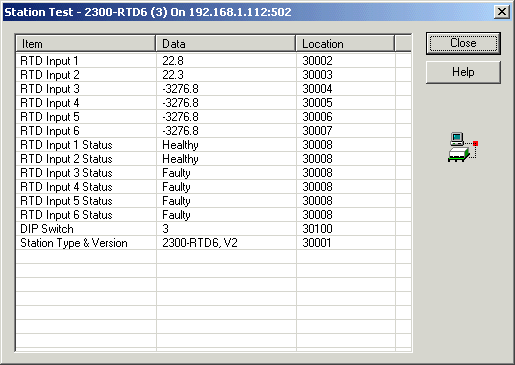

 The stations test dialog is shown. Click Close to end the test.
