2300 TC8

Station Setup

2300-TC8

Station Summary

8 TC Inputs Isolated (2300-TC8N non isolated version)
All Inputs set to one common range J,K,E,T,N,B,S,R,C,D,G (see table below)
Resolution 0.1 Deg C, Scaling is done in station and does not need to be scaled in Lines or Tags.
CJC Offset calibration -9.9 to +9.9 Deg C
Sensor Break Status Indicators
Sensor Break High Value or Low value set by DIP Switch
Display either Deg C or Deg F

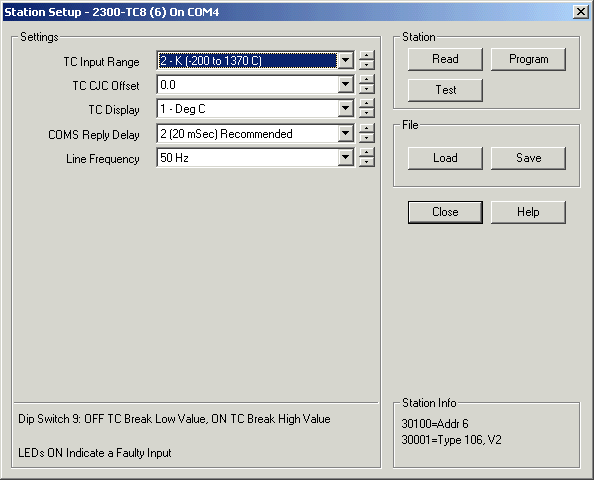

Station Programming dialog

After changes are made, click "Program" to write changes to station.

Settings Table

TC Input Range	1 - J (-150 to 760 C) 2 - K (-200 to 1370 C) 3 - E (0 to 600 C) 4 - T (-200 to 400 C) 5 - N (0 to 1300 C) 6 - B (400 to 1820 C) 7 - S (-50 to 1767 C) 8 - R (-50 to 1767 C) 9 - mV (0 to 50 mV)* 10 - C (0 to 2315 C) 11 - D (0 to 2315 C) 12 - G (0 to 2315 C) 13 - mV (-100 to +100 mV)*
TC CJC Offset	-9.9 to +9.9
TC Display	1 - Deg C 2 - Deg F Note: CJC sensor always reads in Deg C.
COMS Reply Delay	0 to 990 mSec (20 mSec recommended)
Line Frequency	50 Hz 60 Hz

* Must be read into tags and scaled by a tag.

DIP Switch Table

Switch 1-7	Address (See Address Table)
Switch 8	No Action, Leave OFF
Switch 9	Sensor Break - OFF = TC break = low value ON = TC break = high value
Switch 10	No Action, Leave OFF

LED Indications

1-8 INPUT LED OFF	Input Normal
1-8 INPUT LED ON	Input Faulty
P	Flashing - Station is Powered up and working
R	Flashes to indicate good modbus message arrived for this station
T	Flashes to indicate reply message has been sent from this station

Station Info (Read from station)

30100	Dip Switch settings
30001	Station Type and Software Version (Type = 106)

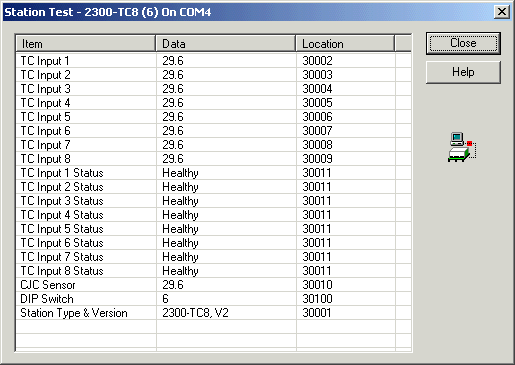

Station Test Dialog

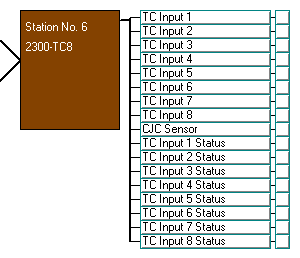

Station Map Display

Note:

The 2300-TC CJC Sensor will not show a correct value unless at least one TC input is connected to the station. If no TC inputs are connected the reading will be an undefined negative value.
