| Custom Report Contents Add/Edit |

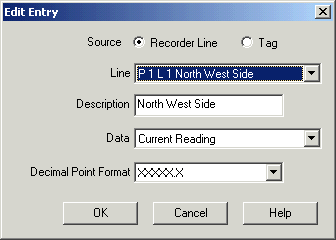

This dialog box is used when adding, inserting or editing a report entry.
To select the Line for the current entry, make a selection from the Line Combo box. Lines are identified by the Page "P" and Line number "L" and by the line's name.
As a line is chosen, the description field will be filled in by the lines name, this description may be edited and filled in with any required text.
The Data type defines what data from the line is included in this report entry. One of the following selections can be made.
|
Data Type |
Notes |
|
Current Reading |
Analogue Line = value of line, Digital Line = Healthy/Faulty |
|
Daily Total |
|
|
Grand Total |
|
|
Daily Min Value |
|
|
Daily Max Value |
|
|
Grand Min Value |
|
|
Grand Max Value |
|
|
Daily Min Time |
fixed data format = hh:mm:ss dd/mm/yyyy |
|
Daily Max Time |
fixed data format = hh:mm:ss dd/mm/yyyy |
|
Grand Min Time |
fixed data format = hh:mm:ss dd/mm/yyyy |
|
Grand Max Time |
fixed data format = hh:mm:ss dd/mm/yyyy |
|
Alarm State |
|
|
Daily Alarm Count |
|
|
Daily Alarm Duration |
|
|
Grand Alarm Count |
|
|
Grand Alarm Duration |
|
|
Line Average Value |
|
|
24 Hour Average Value |
|
|
Batch Average Value |
|
The Decimal Point Format determines how the value will be saved in the report.
|
Decimal
Point Format |
Notes |
|
XXXXXX |
No decimal points |
|
XXXXX.X |
One decimal point |
|
XXXX.XX |
Two decimal points |
|
XXX.XXX |
Three decimal points |
|
XX.XXXX |
Four decimal points |
|
X.XXXXX |
Five decimal points |
|
X.XXXXeXXX |
Scientific Format |
|
hh:mm:ss |
hours,minutes,seconds |
Click OK to save the data and Cancel to abandon changes.
