Step 1

a) Setup a line to be used to read in the temperature Value

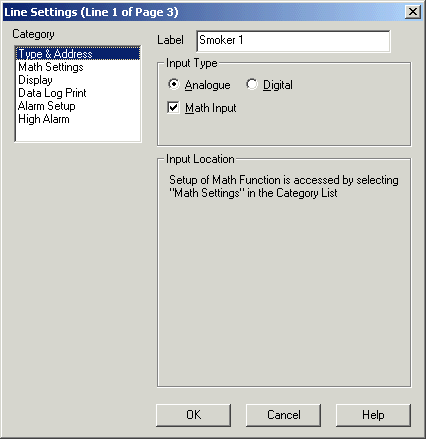

2. Create a new line, that will be a Math Copy of the temperature input, but will use the low cut off to start and stop the batch

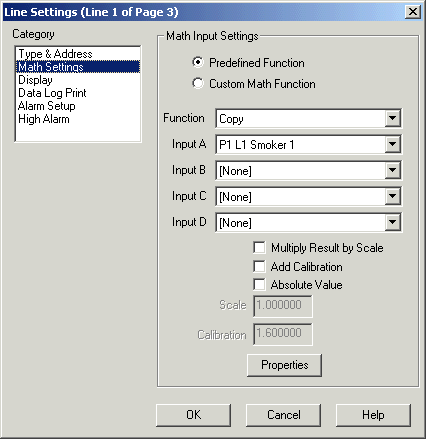

Set Math settings to copy the temperature value

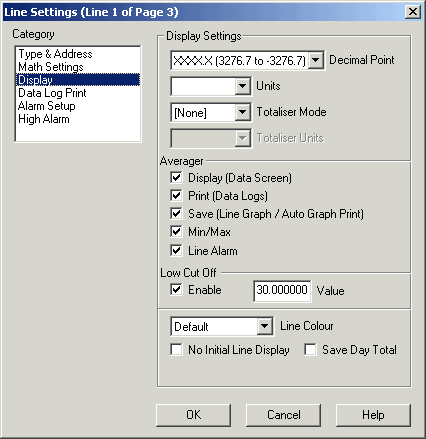

Set the Display category to set the batch run temperature (in this case 30 Deg C).

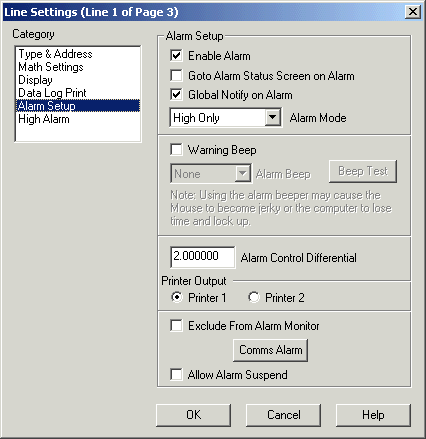

The alarm control differential is used to filter noise and allow the batch to end correctly

The Batch will start at above 30 Deg C and end at 28 Deg C.

3. Setup the page for Batch Recording

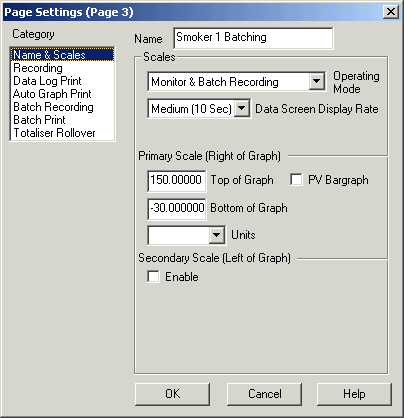

Set Operating Mode to Monitor & Batch Recording

Click Batch Recording Category

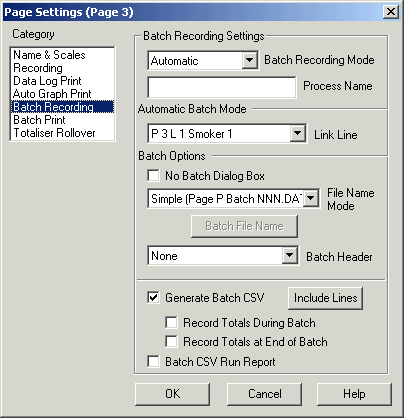

 Set the Batch Recording Mode to Automatic, and the batch Link Line to the Math Line setup in Step 2 above.
