| FAQ |
| What are the Version 4 Microscan passwords ? |
The MicroScan V4 default passwords are:
| Setup Manager start | setup |
| Recorder Level 1 | record1 |
| Recorder Level2 | level2 |
| Program Close | systemclose |
| Multiuser logon back door | Username intech Password level2 |
To find an unknown password for setup manager, click Start, Run. Type win.ini, click OK.
in the section [Setup.Manager]
Search for the line password=
this will be your setup manager password. Once this is known, start the Setup
Manager and enter the password.
See example section shown below.
When Setup Manager is started, click System Setup, and click "System
Passwords" and "Recorder Details" to view current passwords.

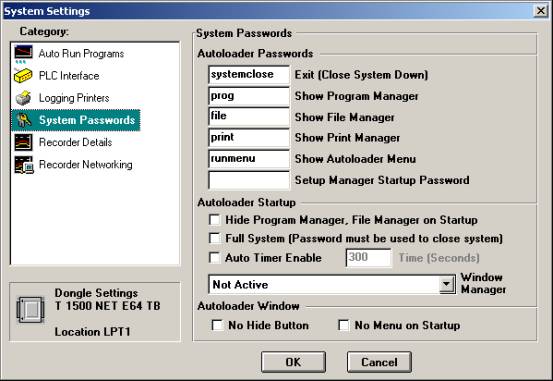

System Passwords

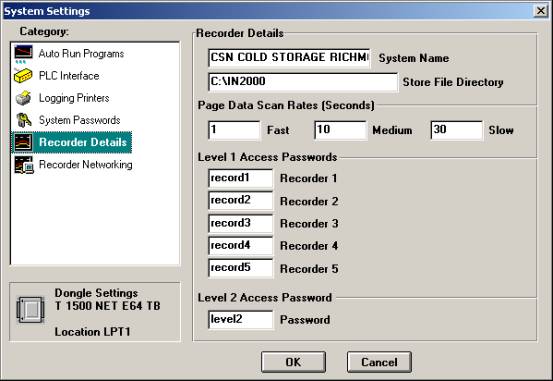

Recorder Details
Example win.ini Setup.Manager section
[setup.manager]
noplc=0
nomimic=1
nodde=1
nomdi=1
noin2000xx=1
norecord=0
nowatchdog=1
viewwindow=0
view=1
v4mode=1
tagonly=0
password=setup
This example shows the setup manager password = setup
