| Change the Serial PORT settings on a 2100-A16-NET/2100-NET |
To setup the port settings for a 2100-A16/ 2100-NET, the XPORT installer is used:
The PORT settings covers:
Ethernet Port number, onboard 2100-NET serial settings.

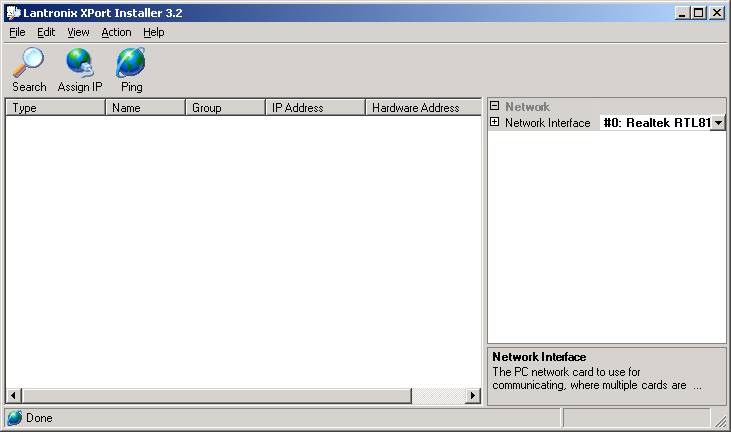

Add the device to the XPORT installer:
Click
Search
Select

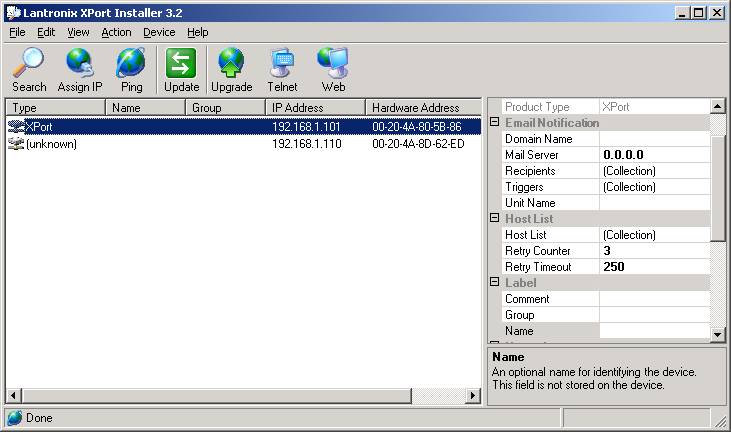

the device, settings are shown in the frame on the right.
Move

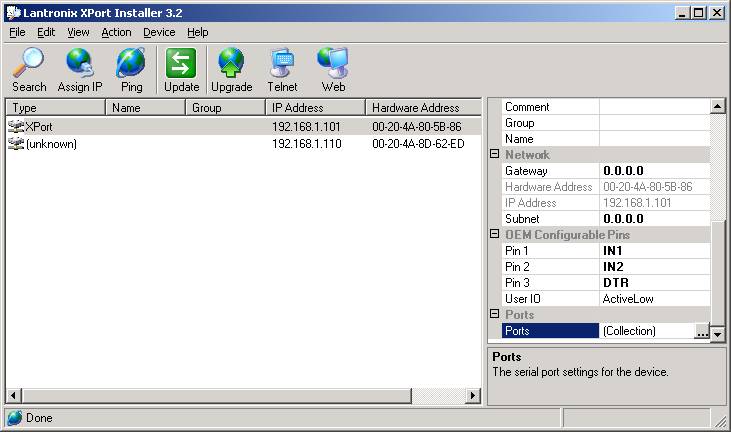

the scroll bar on the right down, so the "Ports" settings are visible.
Port
Settings.

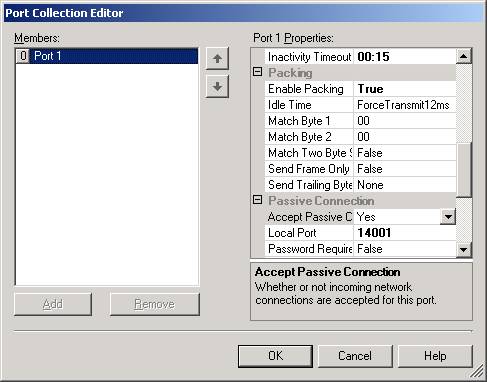

Common settings shown (inactivity timeout, Enable Packing, Local Port).

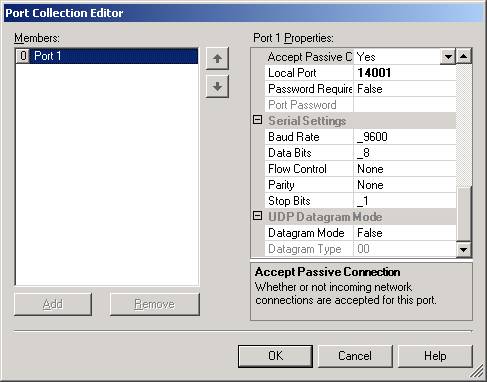

Port Settings
Baud, Data rate etc.
Click OK.
On the XPORT Installer, click Update to write the changes to the XPORT.
Required Default Settings:
| Setting | 2100-A16-NET | 2100-NET |
| Inactivity Timeout | 15 Sec | 15 Sec |
| Enable Packing | True | True |
| Local Port | 10001 Set to 502 for Modbus TCP |
14001 Set to 502 for Modbus TCP |
| Baud Rate | 9600 | 9600* |
| Data | 8 | 8* |
| Parity | None | None* |
* Settings for 2100-XX connected to 2100-NET, for other devices suchas Omron PLC, the could be 19200,e,2 for example.
