Reading 2 words and displaying as a two word hours run time.

1. Read Two tags.

Tag Hi is Hours run High Word, using BCD Word.
Tag Lo is Hours run Low Word, using BCD Word.

2. On the Mimic create two analogue objects.

The first one set to Tag Hi, and set to display XXXXX, Align Right.
The second on set to Tag Lo, and set to display NNNN, Align Left.

Position the objects so that Tag Lo is to the right of Tag Hi, but not overlapping.

Sample of Object Setup.

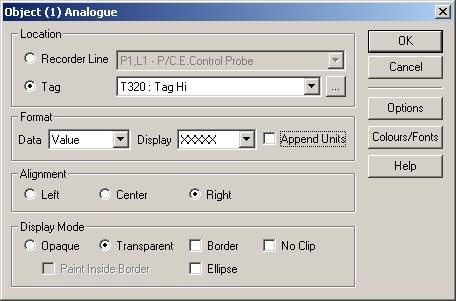

Tag Hi Object Settings

Display = XXXXX

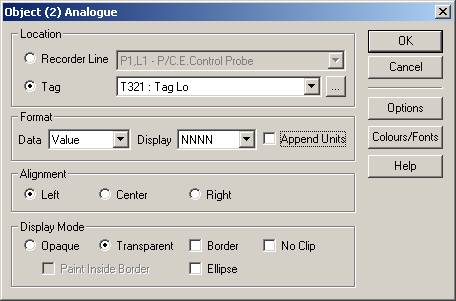

Tag Lo Object Settings

Display = NNNN

Display on Mimic

Tag Hi Object Selected

Tag Lo Object Selected
