When testing a 2300-XX station via a 2300-NET using IOStudio, you need to ensure the stations Serial Reply Timeout is set to a value of 30 or greater (this is with a station that has its comms delay set to 2 (20m Sec).

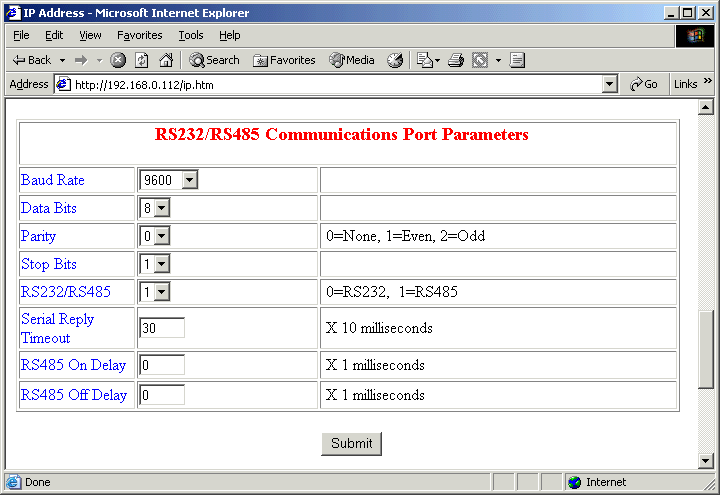

Settings made in ip.htm of the 2300-NET as below

Click Submit to write changes to the 2300-NET.
