To retransmit values from one tag to another, tag retransmission is used.

In this example, one tag is reading the value from Input 1 of a 2100-A16 and sending to AOUT1 of the same A16.

Steps to setup:

1. Create a tag that will be used as the output tag. This will be the tag used to write the value to.

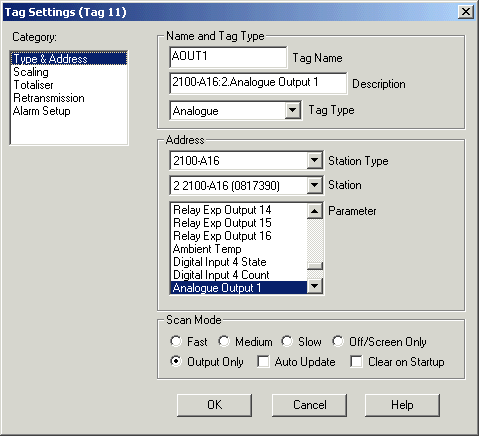

The Output tag is set to AOUT1.

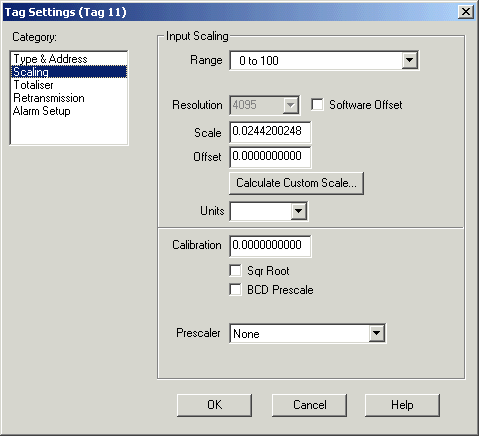

Scaling of the output tag set to suit the output (0-100 means 0-4095) in this example.

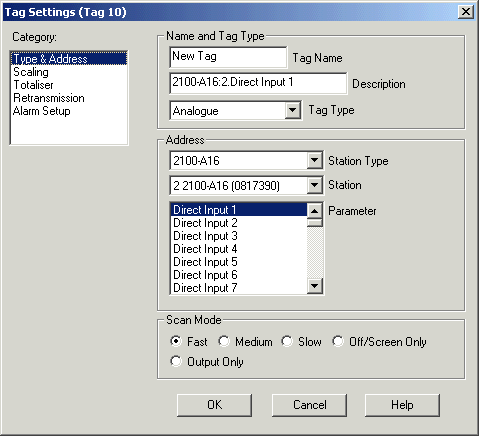

2. Create the Input tag to read the input

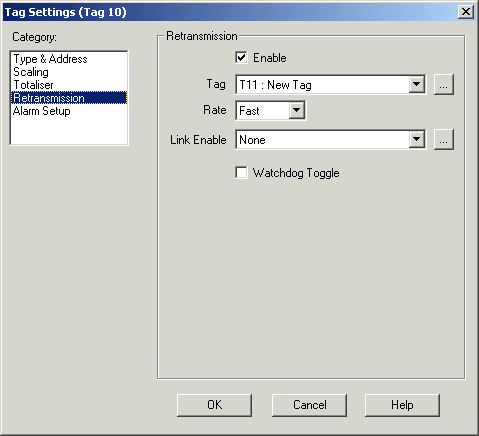

Setup the retransmission category to set the tag to write the value to.

Enable clicked on and Tag set to Output Tag required.

Note:
When using tag retransmission at least one tag in the tag data base should be set to read in a value.
