Recorder Overlay Setup

To Setup the Overlay, the Overlay settings dialog is used:

Click Recorder Overlay on the Mimics Edit Menu or
Click the Set Lock Window Details button on the Mimics Editing Bar. See Mimic Editing Toolbar.

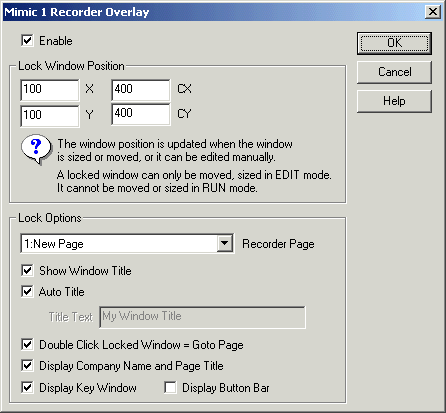

The following dialog is displayed:

Enable

Click Enable to enable a locked window on this mimic page.

Lock Window Position

You may enter Lock Window Position X,Y and CX,CY values or change these values by dragging the locked window around the mimic display.
When the mimic is in RUN mode, the locked window cannot be moved or sized within the mimic frame. (It will be moved automatically though if the splitter bar next to the navigation tree is moved).

Lock Option Settings

Item	Meaning	Default
Recorder Page	Allows the page to be displayed to be selected	Page 1
Show Window Title	Displays a title bar at top of locked window	On
Auto Title	If selected displays a standard page name for the window. Click off and use Title Text to enter custom text for window title.	On
Double Click Locked Window = Goto Page	If on, a double click on the locked window will switch to the Recorder View of this page.	On
Display Company Name and Page Title	If on, the Company Name, page title info will be shown at the bottom of the line graph.	On
Display Key Window	Click on to display a key window when the locked page is displayed.	Off
Display Button Bar	Click On to display a button bar featuring Select Page and Page selection buttons so alternative recorder pages can be viewed inside the locked window.	On
