| Mimic Setup |
| Utility Button Setup - Set Recorder Batch Header |
The Set Recorder Batch Header dialog box allows the user to enter details for a recorder batch header from a mimic page.

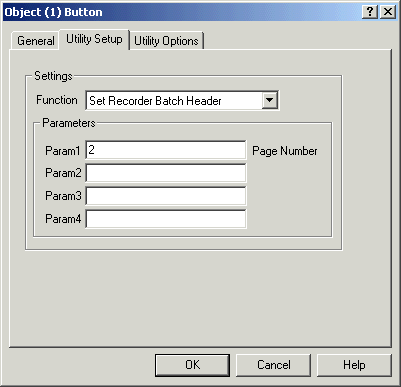

Parameter Settings
Param Settings
| Param | Range | Example |
| Param1 Page Number | 1 to 100 | 2 to Set Batch Header for Page 2. |
Action when button is pressed
The following dialog is displayed.

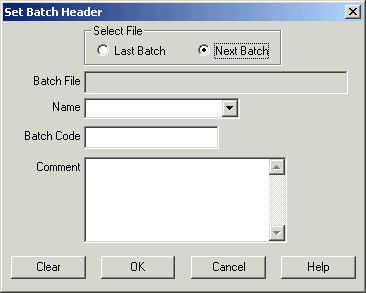

Short Batch Header (Determined by Pages Batch Header Setting)

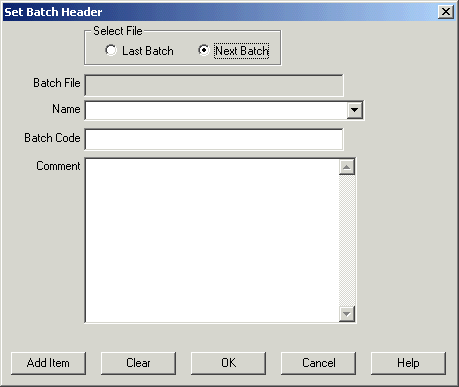

Long Batch Header (Determined by Pages Batch Header Setting)
