| Mimic Setup |
| Utility Button Setup - Set Setpoint Change Inhibit |
The Set Setpoint Change inhibit allows you to control the setpoint change inhibit for a tag.

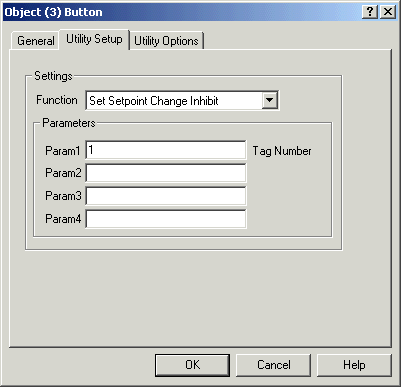

Parameter Settings
Param Settings
| Param | Range | Example |
| Param1 Tag Number | 1 to 5000 | 1 to enter Setpoint change inhibit value for tag 1. |
Action when button is pressed
The following dialog is displayed.
Once the setpoint change inhibit is ON, its timer will start counting down
and inhibit alarms on this tag until it reaches zero.
Click On to turn on the setpoint change inhibit and click OK.
Click Off to Cancel the current setpoint change time on this tag.
Once it has been set to on, it will count down and return to Off when the timer has expired. Thus it will never stay at the On value.

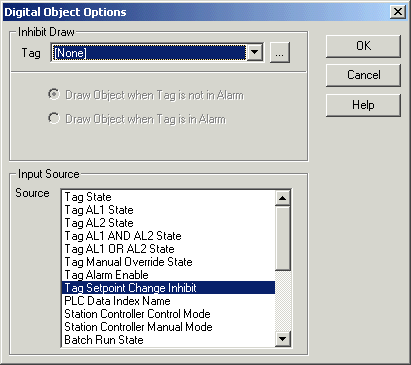

You can display the Setpoint Change Inhibit of a tag using a Digital Object as follows.
1. Create an digital Object and set its Location to the tag required.
2. Click the Options button and set the Input Source to Tag Setpoint Change Inhibit.
