| Mimic Setup |
| Utility Button Setup - Set Tag AL2 Setpoint/Deviation |
The Set Tag AL2 Setpoint/Deviation allows the user to set the Al2 Setpoint of a tag using a dialog.
Parameter Settings

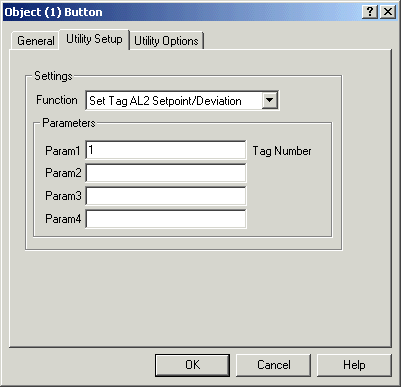

Param Settings
| Param | Range | Example |
| Param1 Tag Number | 1 to 5000 | 1 to enter AL2 Setpoint value for tag 1. |
Action when button is pressed
The following dialog is displayed.
Enter the new value and click OK.
Additional Settings

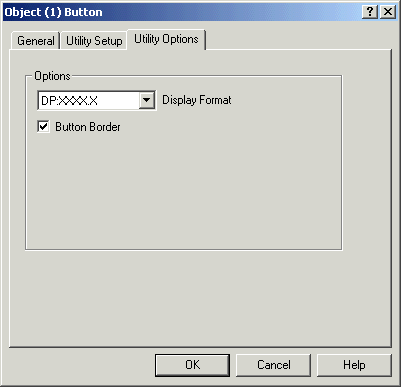

Use the Utility Options tag to set the Decimal Point position.
You can display the AL2 Setpoint of a tag using a Analogue Object as follows.

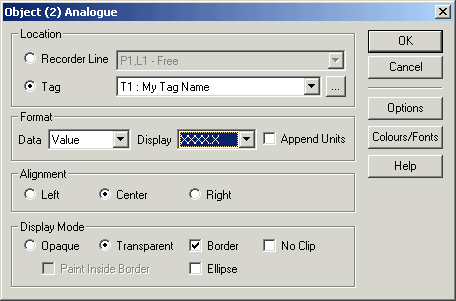

1. Create an analogue Object and set its Location to the tag required.

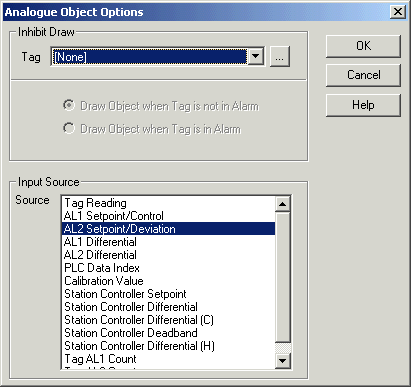

2. Click the Options button and set the Input Source to AL2 Setpoint/Deviation
