| Mimic Setup |
| Utility Button Setup - Set Tag Manual Override |
The Set Tag Manual Override sets the Manual Override state of a tag via a dialog box
Parameter Settings
Param Settings
| Param | Range | Example |
| Param1 Tag Number | 1 to 5000 | 1 to enter Manual Override value for tag 1. |
Action when button is pressed
The following dialog is displayed.
Click Manual Overide ON to enable the manual override, Off to allow normal control.
You can display the Manual Override of a tag using a Digital Object as follows.
1. Create an digital Object and set its Location to the tag required.

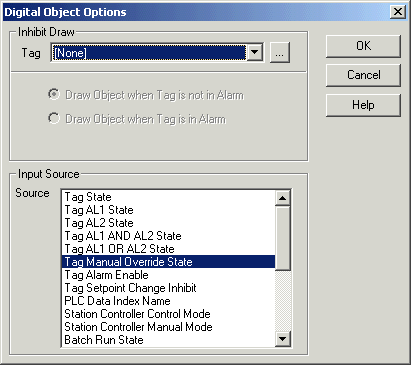

2. Click the Options button and set the Input Source to Tag Manual Override
