| Mimic Setup |
| Utility Button Setup - SetTagAL2Delay |
The Set Tag AL2 Delay allows the user to set the AL2 delay of a tag via a dialog box

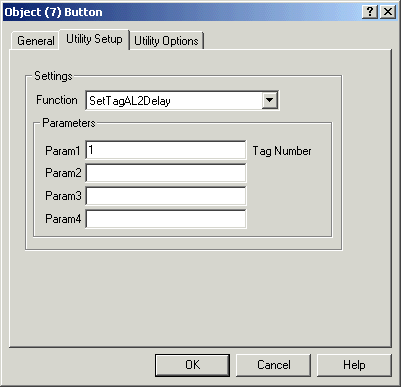

Parameter Settings
Param Settings
| Param | Range | Example |
| Param1 Tag Number | 1 to 5000 | 1 to Set Tag AL2 Delay for tag 1. |
Action when button is pressed
The following dialog is displayed.
Enter the new value and click OK.
Additional Info
The AL2 delay is saved to the tags setup file and retained on MicroScan restart.
The AL2 delay cannot be displayed by an object.
