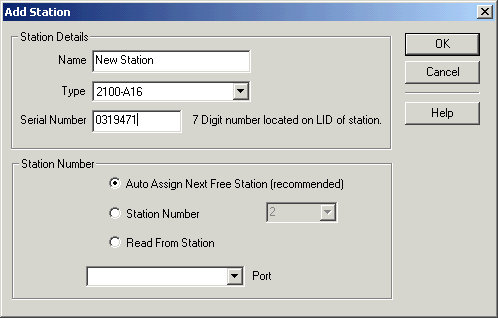

Add a 2100-XX station.

Under "Name" enter a name to identify the station.
In "Serial Number", enter the stations 7 digit serial number (written on the lid of the station).
For the station type 2100-A16 is selected. Once a station has been found, it will be auto assigned the correct station type.

Recommended: (Default setting)
Click "Auto Assign Next Free Station". The default new station number is station 2, and then 3,4,5 etc, This will help avoid conflicts when a new station is added, as its station number is factory set to 1.

Optional (For advanced users).
If you wish to assign a new station number, click "Station Number" and choose a station number to use.
If you wish to use the station number already programmed in the station, click "Read From Station".

Click OK to find and program the new station with the new station number.

When you add 2100-XX stations in sequence, the first station will be station number 2, the next one will be assigned station 3, and so on, as stations are added.

Add a IN2000-XX station.

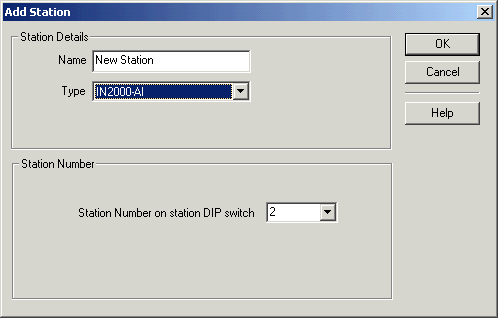

Under "Name" enter a name to identify the station.
Under Type, select the type of station, IN2000-AI, DI, DO, AO.

Enter the station number on the DIP switch (previously assigned, inside cover of station).

Click OK to add the station.

Note : no two stations should be assigned the same address.

Add a Shimaden Controller.

Under "Name" enter a name to identify the station.
Under Type, select the type of Shimaden Controller.

Enter the machine number to use (previously programmed via the front panel of the controller).

Click OK to add the station.

Note : no two stations should be assigned the same address.
