The remote clear alarm allows you to use a DI counter input on an 2100-A16, 2100-D or 2100-A4/A4e to clear the MicroScan alarms.

NOTE: Before using, set the line to be used as a counter first in Configure Pages and Lines.

To access:

• On the Recorders Alarm Menu, click "Remote Clear Alarm".
• On the Recorders Alarm Settings dialog, click Remote Clear.

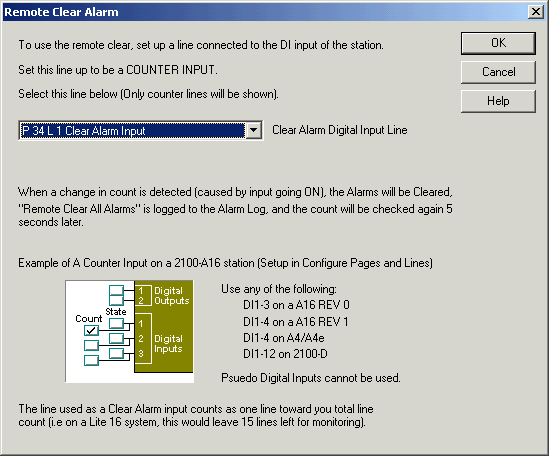

The following dialog will be displayed:

Select the line required and click OK.
