You use the Configure Tags link on the Setup Tools screen to Configure Tags.

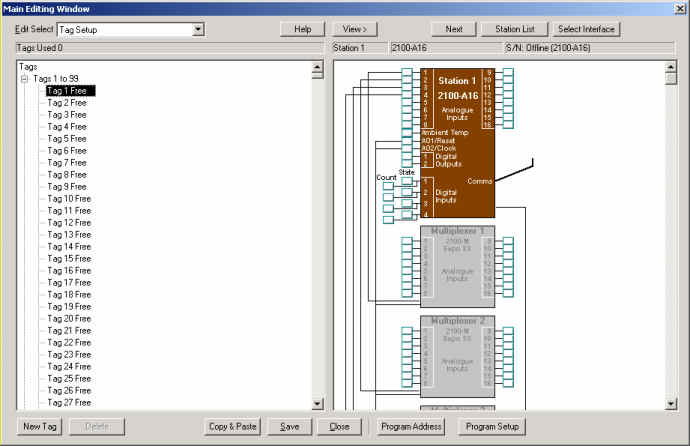

The Main Editing Window appears, ready to Edit Tag Settings

To Edit Tags:

• Select a Tag and click New Tag to create a tag.
• Double click on a Free tag to create a tag.
• Select a used tag and click Edit Tag to edit the tag.
• Double click on a used Tag to edit the tag.
• Drag an address point from the station map to a tag to create a tag to that point.

Dragging a 2100-XX station point to a tag

Click on the address point on the map (shown in black rectangle below)

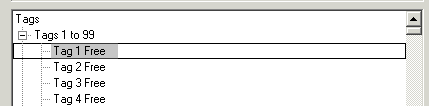

Drag over to a free tag, and release mouse button when on top of desired tag

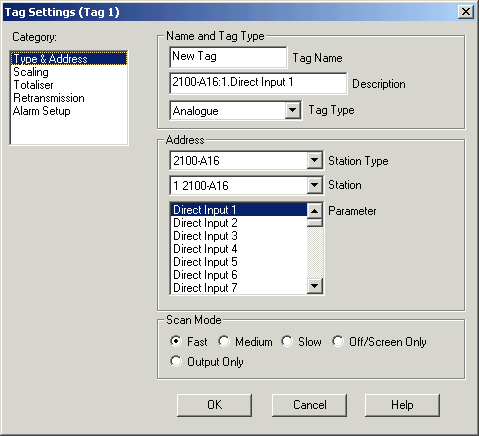

Then Enter the tag details required.

The Address information (Station Type, station and Parameter) are filled in from the station shown on the map, and the box dragged over that represents the location on the station. Click OK to create the tag.

To delete a tag

• To delete a tag, select it and click the Delete button.
• To delete a tag, select it and click the Delete key on the keyboard.

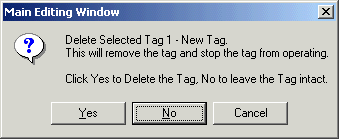

Click Yes to delete the tag.
