Setup Line Math Setting Properties

Setup MicroScan

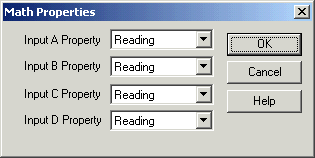

Line Setup: Math Settings Properties

Select a property for each of the 4 inputs as required.

Possible choices are

Reading*
Day Total
Grand Total
High Setpoint
Low Setpoint
Average Value
24 Hour Average Value
Batch Average Value

*If the averager is setup and Average Min/Max is setup on the line, the math calculation will use the Line Average value. This is supplied for compatibility with existing Version 4 jobs. New jobs should use "Average Value".
