Setup MicroScan

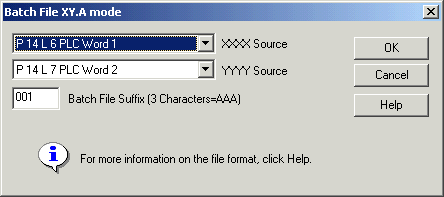

Page Setup: Batch Recording - Batch File XY.A mode

In this mode the file name comes from two lines values, line X and line Y, which are formed together with the AAA suffix to give a complete file name.

The file name is of the format

XXXXYYYY.AAA

XXXX = value of first line
YYYY = value of second line
AAA = suffix

If several batch pages are using the same locations for XXXX and YYYY, to make the file names unique use the AAA extension.
i.e 001 = page 1, 002 = page 2.

The lines values in XXXX and YYYY must be setup and read into the Recorder BEFORE the batch starts.
