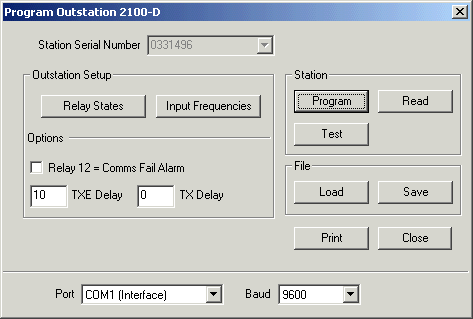

2100-D Programming screens

When the window is first displayed, the software will auto read the current settings from the station

Make changes and click Program to program to station.

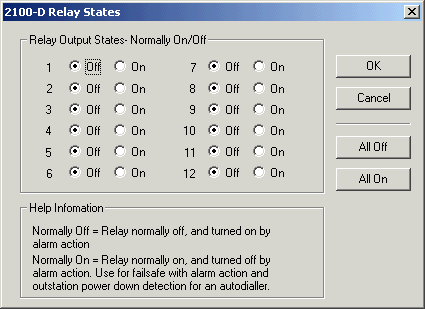

Relay States

Click Relay States

Choose states and click OK. Click Program to write changes to station.

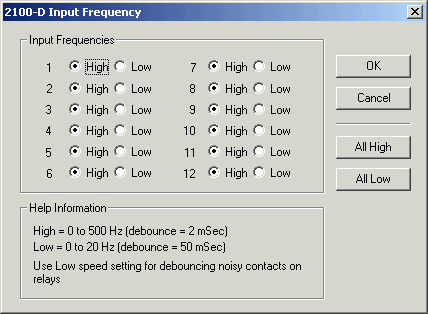

Input Frequencies

Click Input Frequencies

Choose the frequency required and click OK. Click Program to write changes to station.
Low speed limits top speed of measurement but adds extra filtering for noisy inputs.

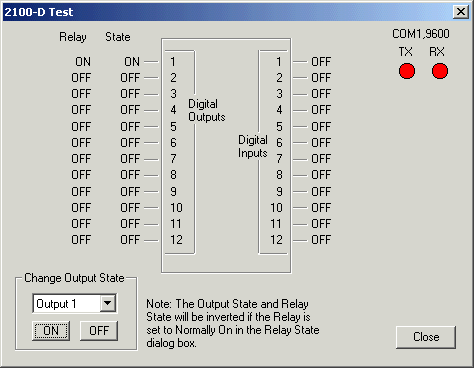

Station Test

Click Test button

The inputs on right will show the state of inputs.
The outputs on left can be turned on/off by selecting an output and clicking the ON/OFF buttons.
