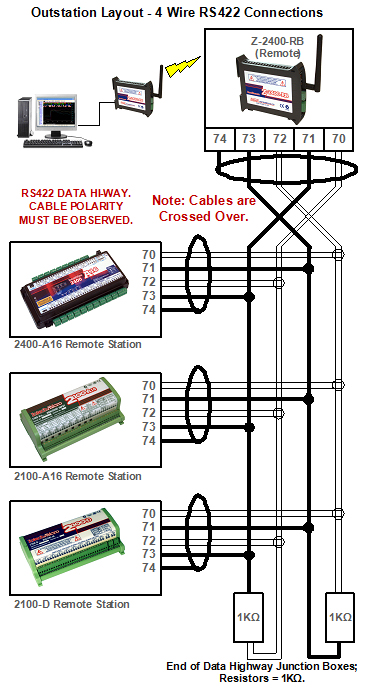

The Remote is wired to the RS422 stations as shown below using terminals 70,71,72,73 using crossover connections.

Additional reminder notes

• The Z-2400-RB is set to remote using DIP SW B 3 = ON.
• RS422/485 links on side of unit set to 422 position
• DIP SW B 2 = OFF (Base must also have B2 = OFF)
• NTWRK Status LEDs 1,2 toggle to indicate good ZigBee connection to base.
• Check to make sure all 2100-XX stations are linked to 422 position (L1,L2 in).
• Base DIP SW B 5 = ON for base to remote connections enabled

The gnd terminal 74 is on the RS232 connector.

Stations Not supported

The following stations are not supported on a  remote

• IN2000-XX stations (IN2000-AI, IN2000-DI, IN2000-AO, IN2000-DO)
• Shimaden FP21, Shimaden SR25, Shimaden SR253
• Shimaden SD20, Shimaden SR50, Shimaden SR70.
