Each remote allows several status signals to be accessed to indicate the remote's operation

• Connected
• Signal %
• Link Qual %

These figures can be seen in the list of parameters for the base, they are also "free access" and do not count toward dongle settings

Connected status shows Healthy (value=1) for connected and Faulty (value=0) for Not Connected
Signal % gives the RX signal at the remote in % (ranges from 0-about 99%). If the site has two or more remotes, it is possible for the RX signal to jump between different levels as the remote takes different signal paths back to the base.
Link Qual % gives the connection quality. This would normally be 100% unless the base and remotes are having difficulty connecting.

Using a Line to read a remotes connection status

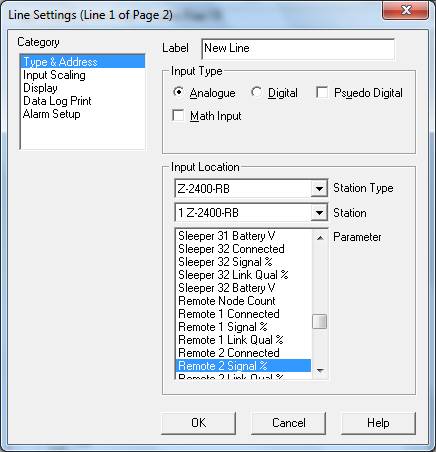

Using a line to read a remotes Signal

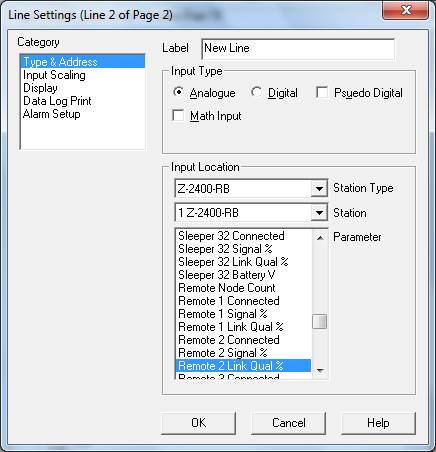

Using a line to read a remotes Link Quality

The RX signal/LQ values are read by the microscan driver and this has a 15 second cache on the values so continuous reads will only update every 15 seconds.
The Connected status is updated from the bases node list, read by the driver once per minute. A time delay is engaged after the remote is removed from the node list in case of random short duration losses.
