| 2000 Specifications | ||
| Housing | Brass | |
| Piston | Brass | |
| Spring | 316 SS | |
| Reed Switch | 50 Watt SPST N/O | |
| Wire | 18 AWG 24″ Lg. Polymeric | |
| Size | 1/2″ NPT | |
| Temperature | -28°C~120°C | |
| Pressure | 103 bar max | |
| Size Port | Flow Setting | Model No. |
| 1/2″ NPT | 1.89 l/m | 12666 |
| 3.78 l/m | 12667 | |
| 5.67 l/m | 12668 | |
| 7.57 l/m | 12669 | |
| 9.46 l/m | 12670 | |
| 11.3 l/m | 12671 |

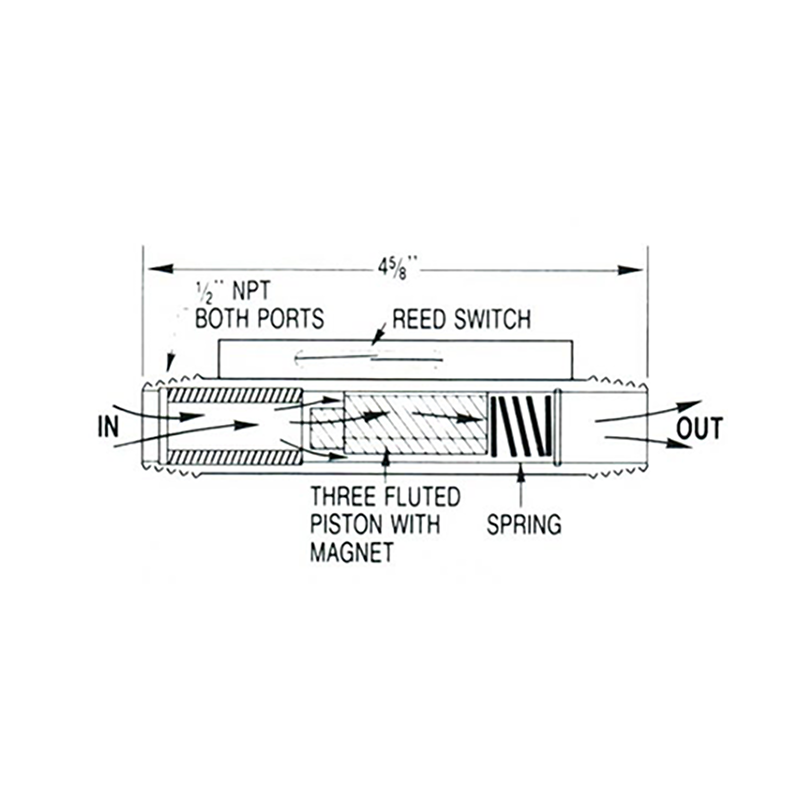

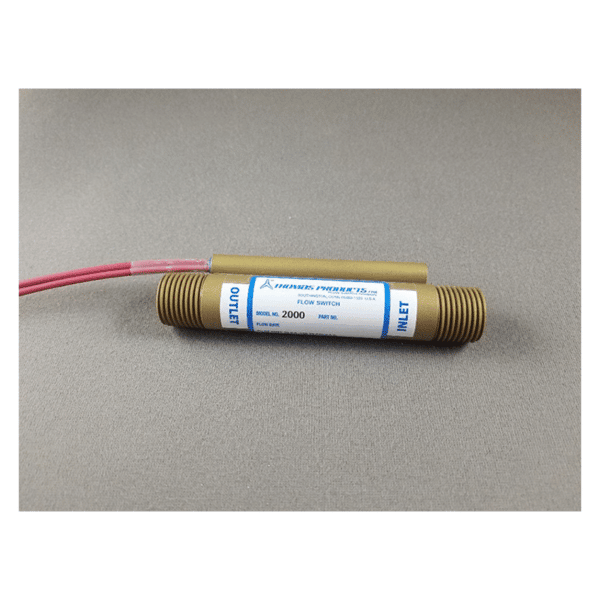

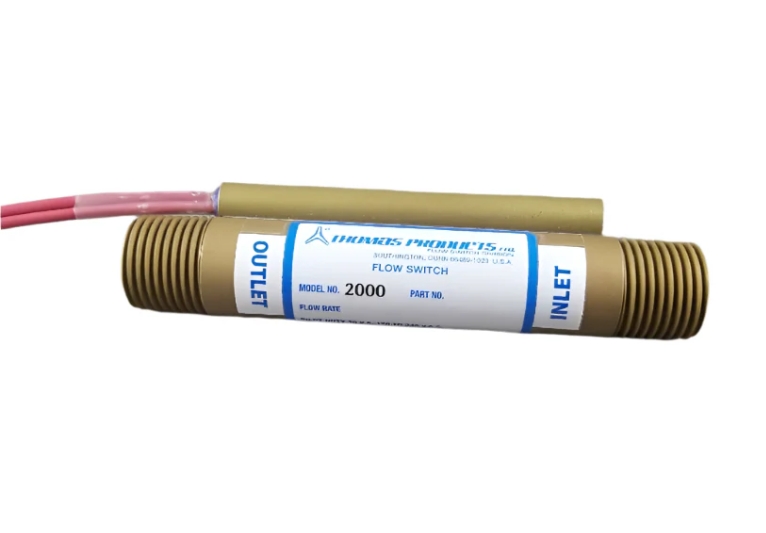

2000 – In Line Flow Switch - Fixed set point
Liquid Flow Switch 1/2" NPT

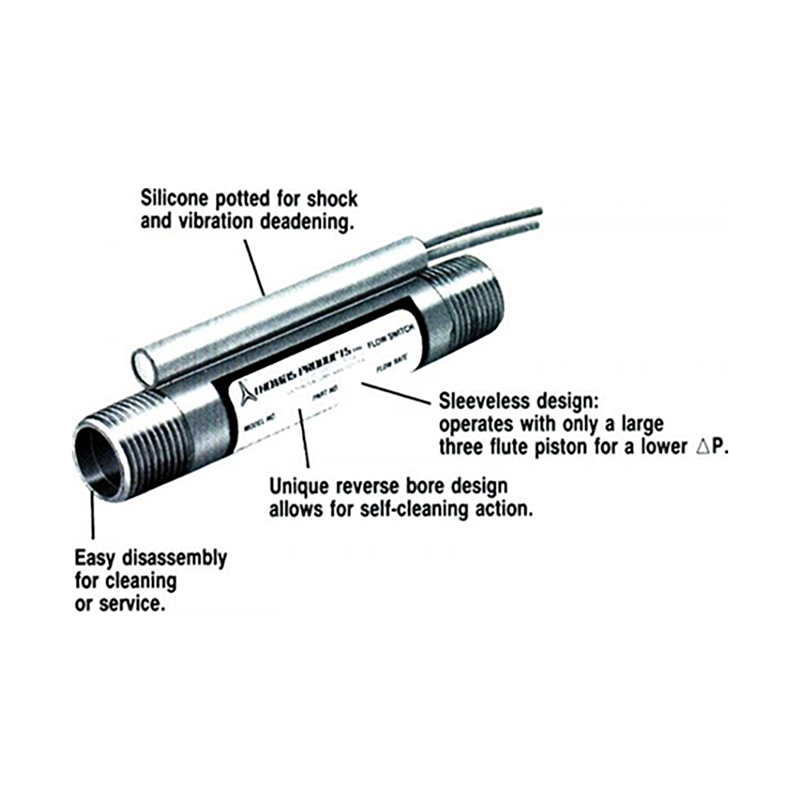

2000 Features
- Unique reverse bore design allows for self-cleaning
- Easy disassembly for cleaning or service
- Silicone potted for shock and vibration deadening
Brand: THOMAS PRODUCTS
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000-12666 | Liquid Flow Switch Brass 1.89 l/m NO | $332.00 | |||||||||
| 2000-12667 | Liquid Flow Switch Brass 3.78 l/m NO | $332.00 | |||||||||
| 2000-12668 | Liquid Flow Switch Brass 5.67 l/m NO | $332.00 | |||||||||
| 2000-12669 | Liquid Flow Switch Brass 7.57 l/m NO | $332.00 | |||||||||
| 2000-12670 | Liquid Flow Switch Brass 9.46 l/m NO | $332.00 | |||||||||
| 2000-12671 | Liquid Flow Switch Brass 11.3 l/m NO | $332.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech Instruments Ltd are New Zealand distributors for Thomas Products. Please contact the Thomas Products distributor in your country if you require sales or service support for Thomas Products.
Intech Instruments Ltd are New Zealand distributors for Thomas Products. Please contact the Thomas Products distributor in your country if you require sales or service support for Thomas Products.
