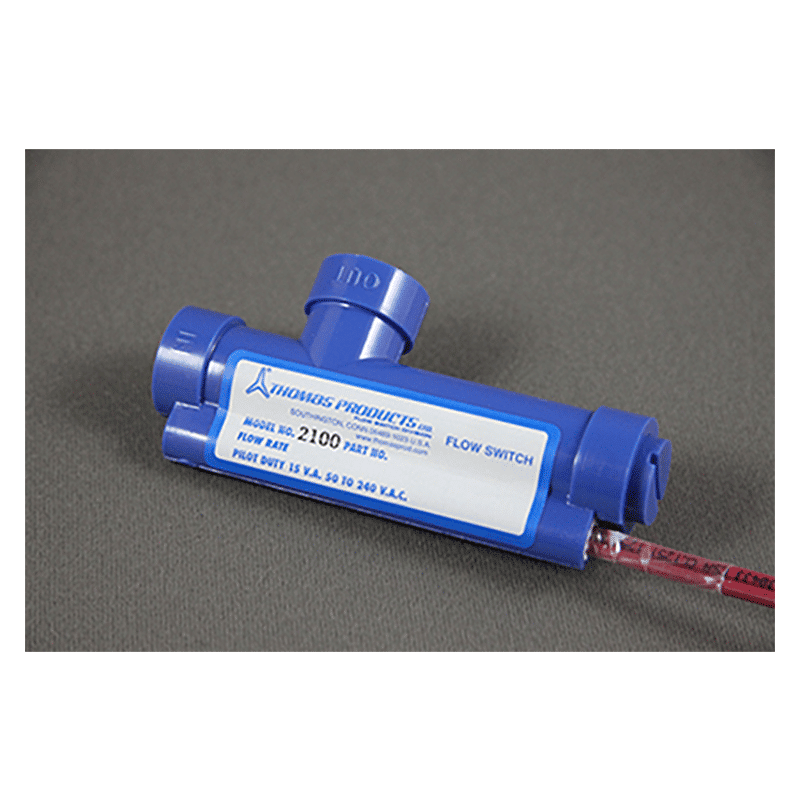

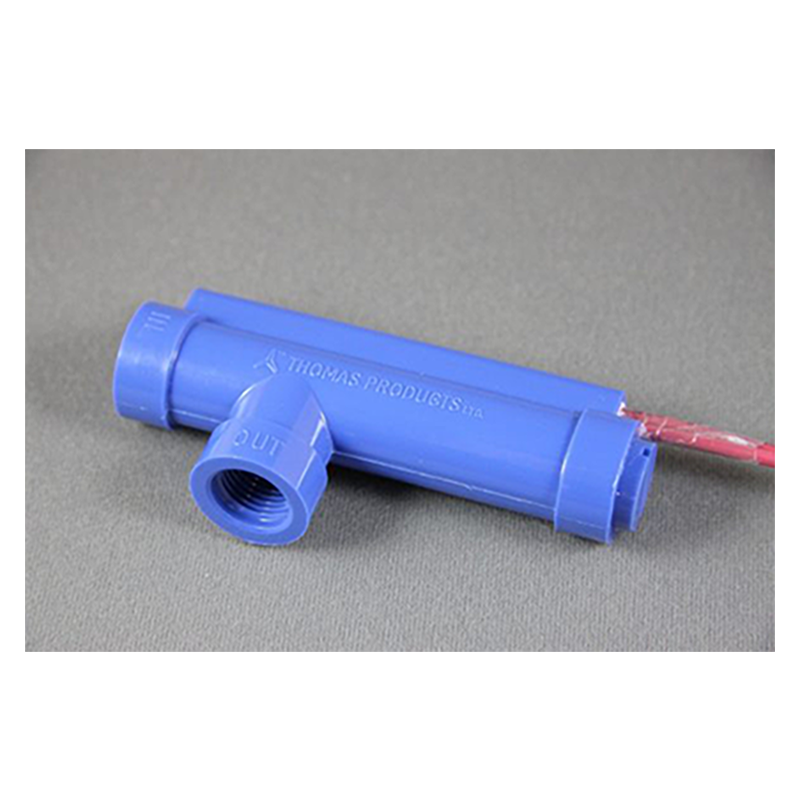

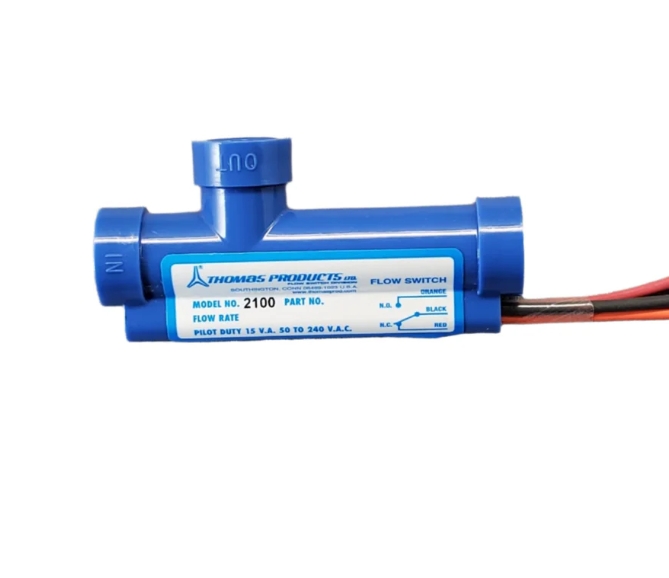

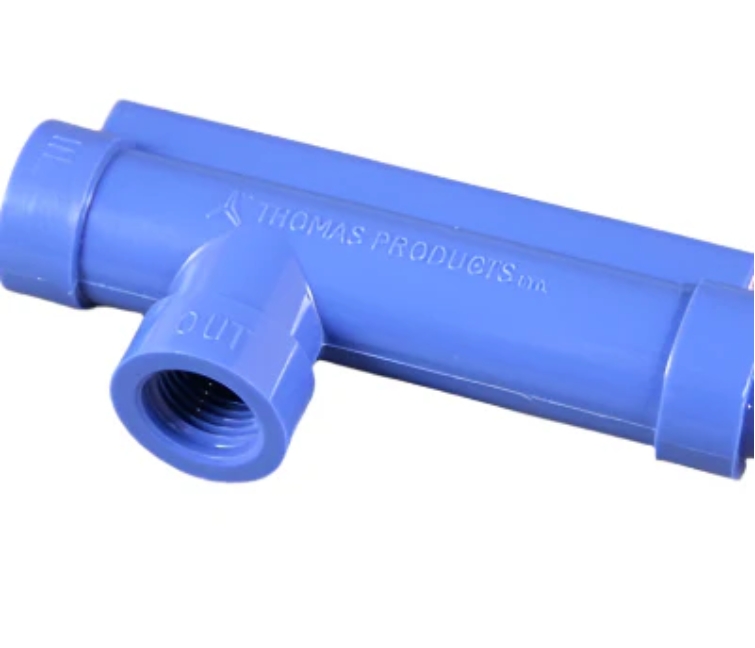

Liquid Flow Switch
2100 Features
| TYPE | 2100 |
|---|---|
| Housing | Polysulfone |
| Piston | Polysulfone |
| Spring | 316 SST |
| O Ring | Viton A |
| Reed Switch | 20 Watt SPST N/O. 2 Wire |
| Wire | 18 AWG 24″ Lg. Polymeric |
| Temperature | -28°C~107°C |
| Pressure | 17 bar at 20°C max |
| 103 bar at 20°C burst strength |
| Size Port | Flow Setting | Model No. |
|---|---|---|
| 9/16″ -18 UNF | 0.37l/m | 12686 |
| 0.94l/m | 12687 | |
| 1.89l/m | 12688 | |
| 2.83l/m | 12689 | |
| 3.78l/m | 12690 | |
| 5.67l/m | 12691 |
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2100-12686 | Liquid Flow Switch PSU 0.37 l/m | $182.00 | |||||||||
| 2100-12687 | Liquid Flow Switch PSU 0.94 l/m | $182.00 | |||||||||
| 2100-12688 | Liquid Flow Switch PSU 1.89 l/m | $182.00 | |||||||||
| 2100-12689 | Liquid Flow Switch PSU 2.83 l/m | $182.00 | |||||||||
| 2100-12690 | Liquid Flow Switch PSU 3.78 l/m | $182.00 | |||||||||
| 2100-12691 | Liquid Flow Switch PSU 5.67 l/m | $182.00 | |||||||||

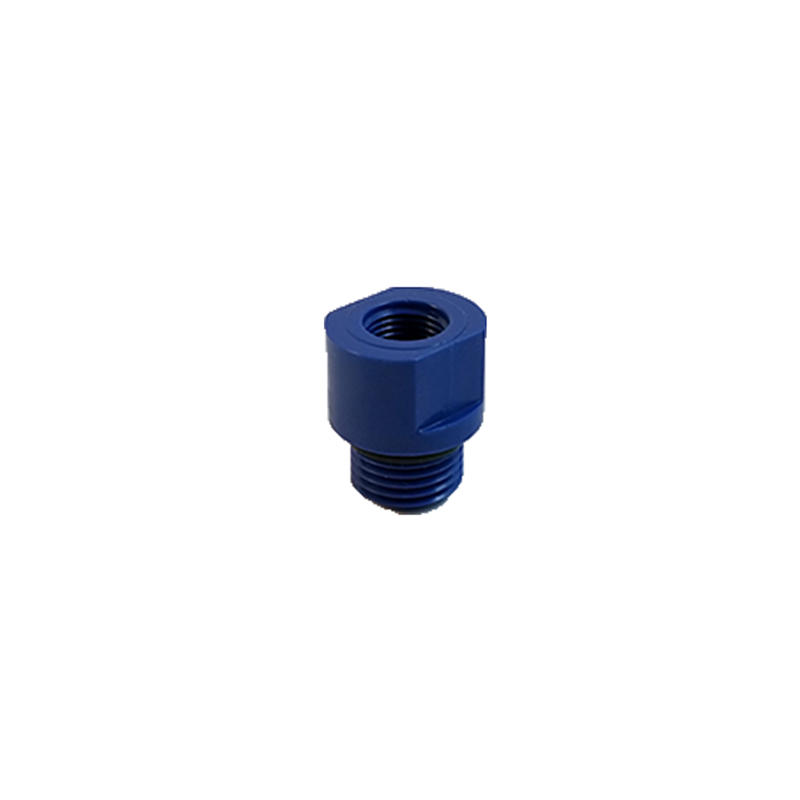

| 2100-12720 | Adapter for 2100 – 1/8″ NPT | $19.50 | |||||||||

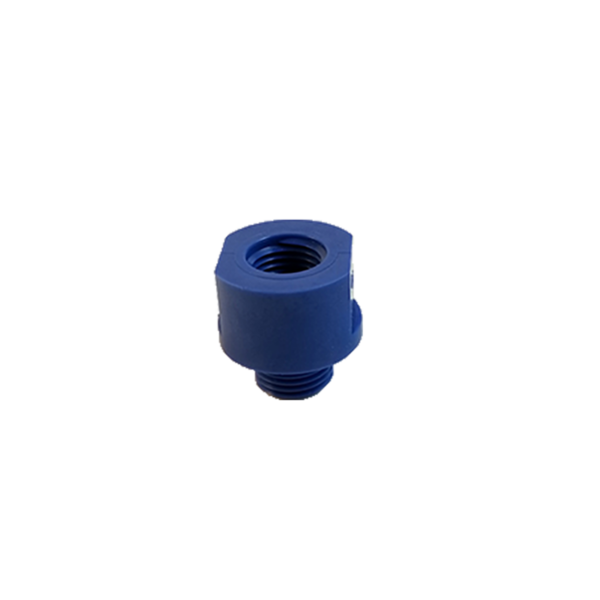

| 2100-12721 | Adapter for 2100 – 1/4″ NPT | $19.50 | |||||||||

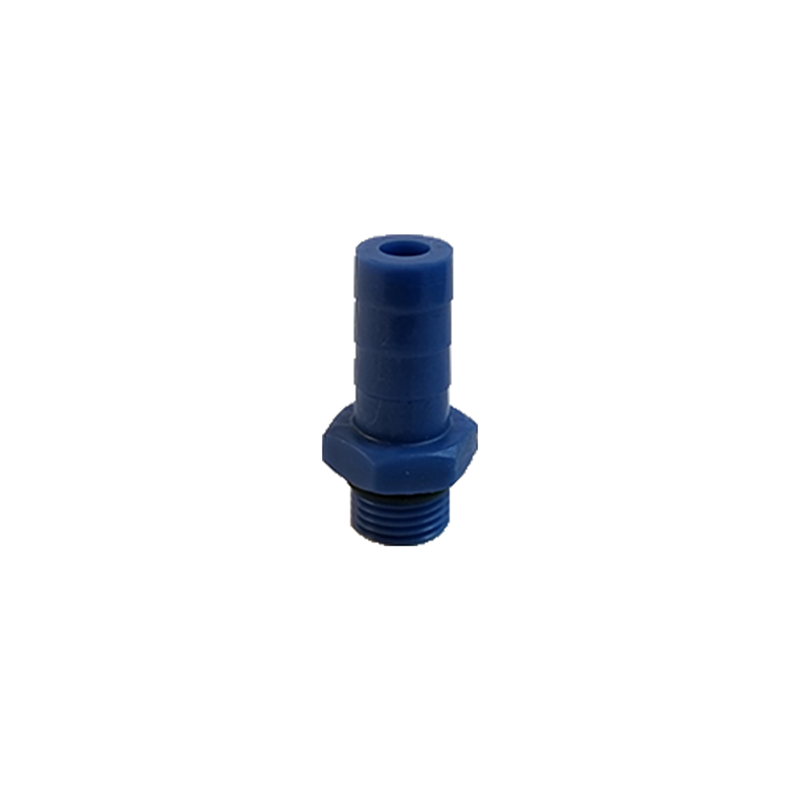

| 2100-12722 | Adapter for 2100 – 1/2″ Barbed, for 1/2″ ID hose | $19.50 | |||||||||
Note: Adapter fittings are available to convert the 9/16″-18 UNF-2B threaded port to other sizes. All fittings are made of polysulfone and are supplied with a Viton A o-ring seal assembled in place
