| TYPE | 19650 | 19651 |
|---|---|---|
| Housing | Brass | 316 SS |
| Paddle | 316 SS | |
| Shuttle | 316 SS | |
| Spring | 316 SS | |
| Reed Switch | 20 Watt SPDT20 Watt SPDT | |
| Wire | 18 AWG 24″ Lg. Polymeric | |
| Temperature | -34°C~150°C | |
| Pressure | 58 bar max | |
| Mounting | 1” NPT | |
| Repeatability | ±5% | |

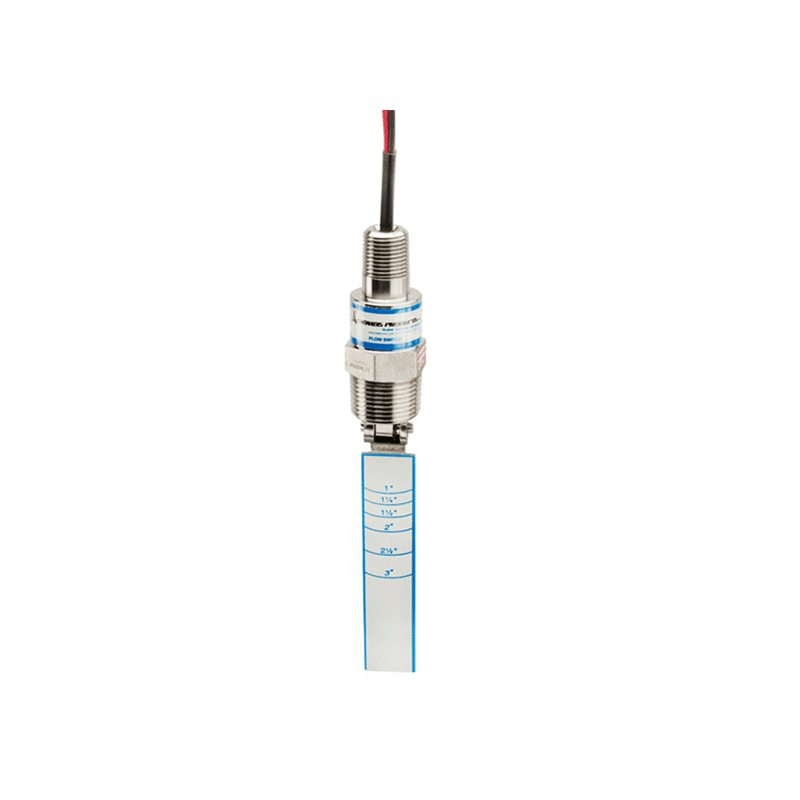

2400 – Adjustable Paddle Type Flow Switches
Vertically Mounted Flow Switches, Brass and 316 SS versions
- Weight: 1 lbs
- Dimensions: 8 × 5 × 3 inches
- Housing Material: Brass, SST
Brand: THOMAS PRODUCTS
Usually in stock
Request a quoteScroll down for product range
- Thomas Liquid Flow Switches - Brochure 244.37 KB
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2400-19650 | Liquid Flow Switch Brass | $590.00 | |||||||||
| 2400-19651 | Liquid Flow Switch Stainless Steel | $824.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech Instruments Ltd are New Zealand distributors for Thomas Products. Please contact the Thomas Products distributor in your country if you require sales or service support for Thomas Products.
