Capacity: Maximum diameter 7/8” (22 mm)
Mounting: Mounting bracket included for mast mounting as shown, maximum diameter 1-1/2”, mast not included
Size: 4-1/2” shield diameter, 10” height (6”shield cup assembly plus mounting bracket)
Shipping Weight: 1 lb. / 0.4kg

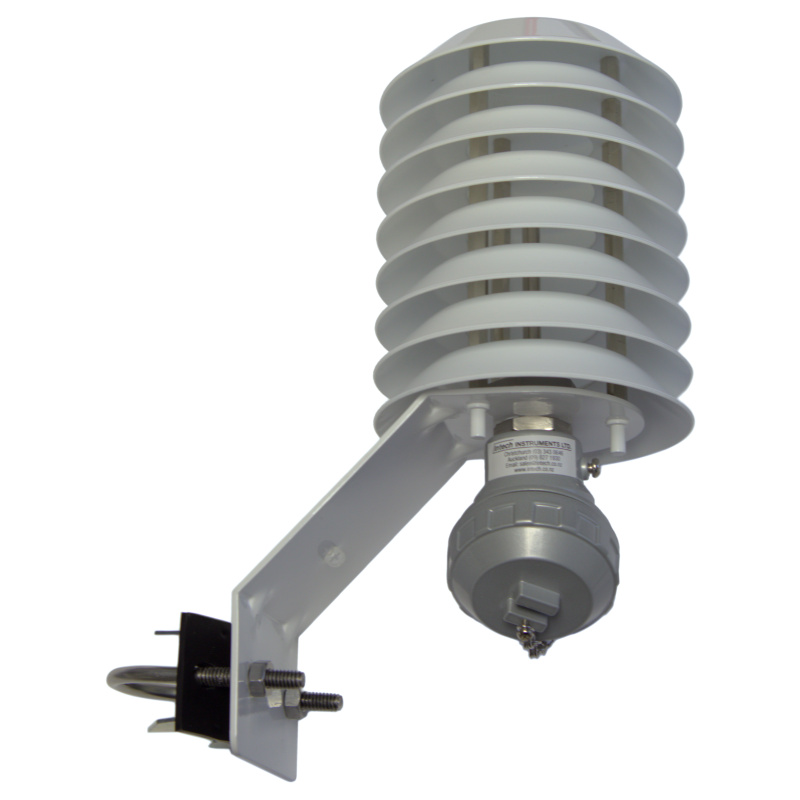

COL-RAD – Radiation Shield for Temperature/ Humidity Probes
Self-Aspirating Radiation Shield
When accuracy is critical – especially in environments where your sensors may be subject to incident radiation from either direct sunlight or proximate surfaces – a radiation shield is the solution. This self-aspirating radiation shield will help you get the most accurate temperature and/or humidity readings.
Features
– Self-aspirating, requiring no electricity to operate.
– Gloss white powder-coated aluminum construction insures high surface reflectivity and provides long-lasting protection from exposure, even in harsh environments.
– Overlapping, eight-cup design allows efficient air circulation, absolutely no penetration of incident radiation.
– Very easy to assemble and install.
– Easy to mount with heavy gauge, thermally isolated sensor support.
Scroll down for product range
- COL-RAD Radiation Shield - Data Sheet 234.89 KB
Product Range
Code | Specifications | Price | Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
COL-RAD | Self-Aspirating Radiation Shield – Cylindrical in shape, 250mm high and 115mm in diameter | $660.00 | |||||||||
COL-RAD-P | Self-Aspirating Radiation Shield – Cylindrical in shape, 250mm high and 115mm in diameter – Includes Probe RHP-S6.4-75-SA (NZ9728) + Washers and Hex nut | $835.00 | |||||||||
