Frequency counting type multi-range IC timer. Using high Frequency oscillator to generate a stable pulses, through multi stages of counter to provide multi timers’ scale for application. Comes in a compact DIN 48 x 48 for both surface and flush mounting.

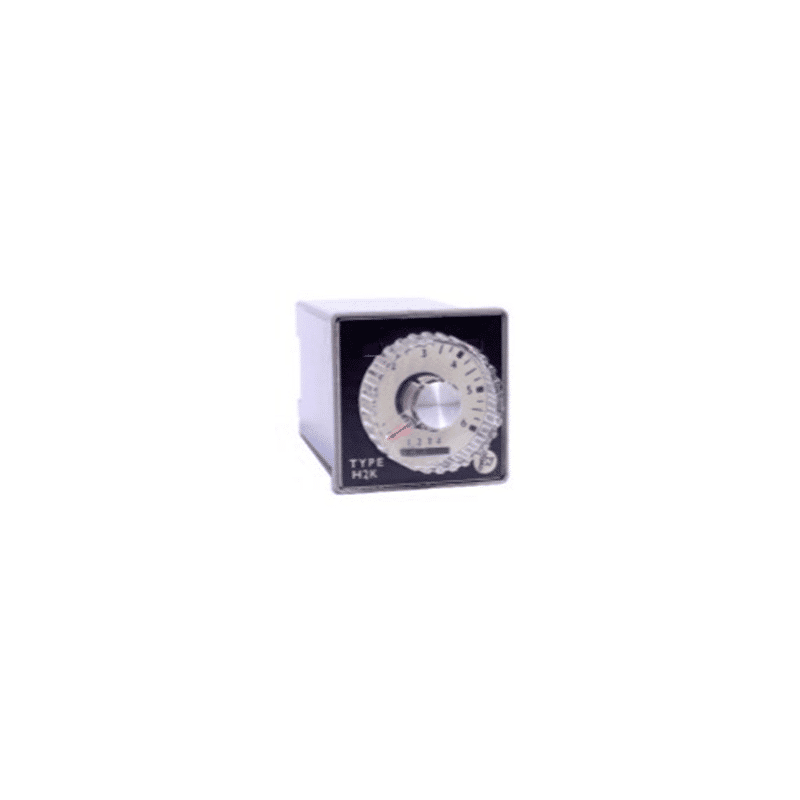

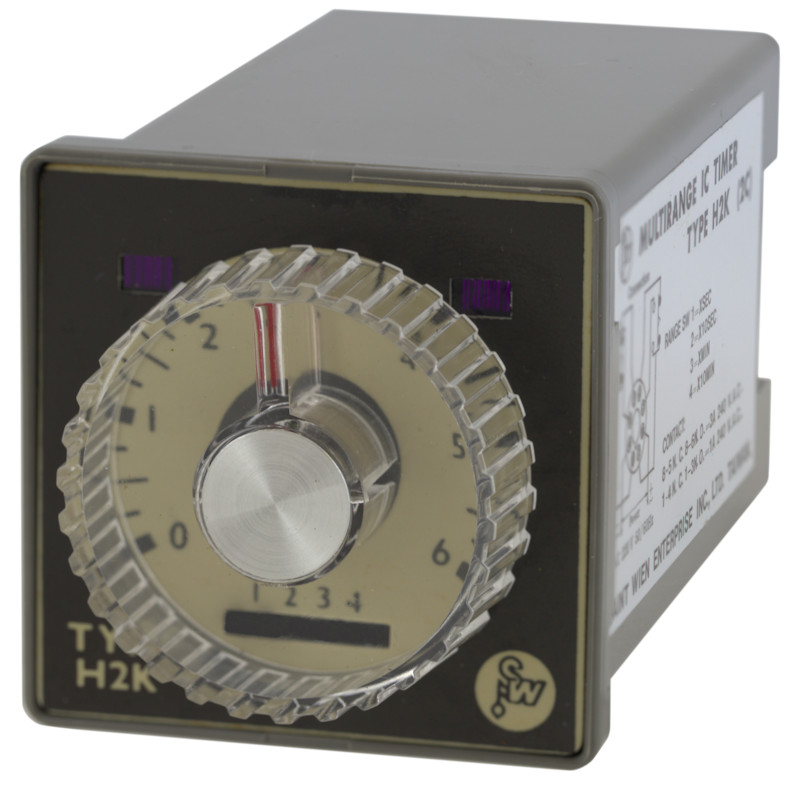

H2K – Analogue Timers
Multirange IC Timer
H2K Features
- High stable timing on any scale.
- Wide range of timer for selection.
- High repetition for high speed cycling.
- compact size DIN 48 x 48mm, one time for both surface & flush mounting.
- Fast resetting time for timer on or midway off.
Brand: SAINT WIEN
Usually in stock
Request a quoteScroll down for product range
| TYPE | H2K |
| Power supply: | 220Vac. |
| Mode: | 1 preset. On delay. |
| Start/reset: | Power on/off. |
| Ranges: | 4 selectable ranges, 6 sec, 60 sec, 6 min, 60 min. |
| Relay rating: | 3A, 250Vac. |
| Price includes 8 pin base. | |
| Size: | 48 x 48 |
- Analogue Timer H2K - Datasheet 293.92 KB
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H2K1 | Analogue Timer, 1 timed SPDT. | $69.00 | |||||||||
| H2K2 | Analogue Timer, 1 timed DPDT. | $70.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech Instruments Ltd are New Zealand distributors for Saint Wien Enterprise Inc., Ltd products. Please contact the Saint Wien Enterprise Inc., Ltd distributor in your country if you require sales or service support for Saint Wien Enterprise Inc., Ltd products.
Intech Instruments Ltd are New Zealand distributors for Saint Wien Enterprise Inc., Ltd products. Please contact the Saint Wien Enterprise Inc., Ltd distributor in your country if you require sales or service support for Saint Wien Enterprise Inc., Ltd products.
