The H5K-52-5U digital timer comes in a compact size DIN 48 x 48 for both surface and flush mounting.

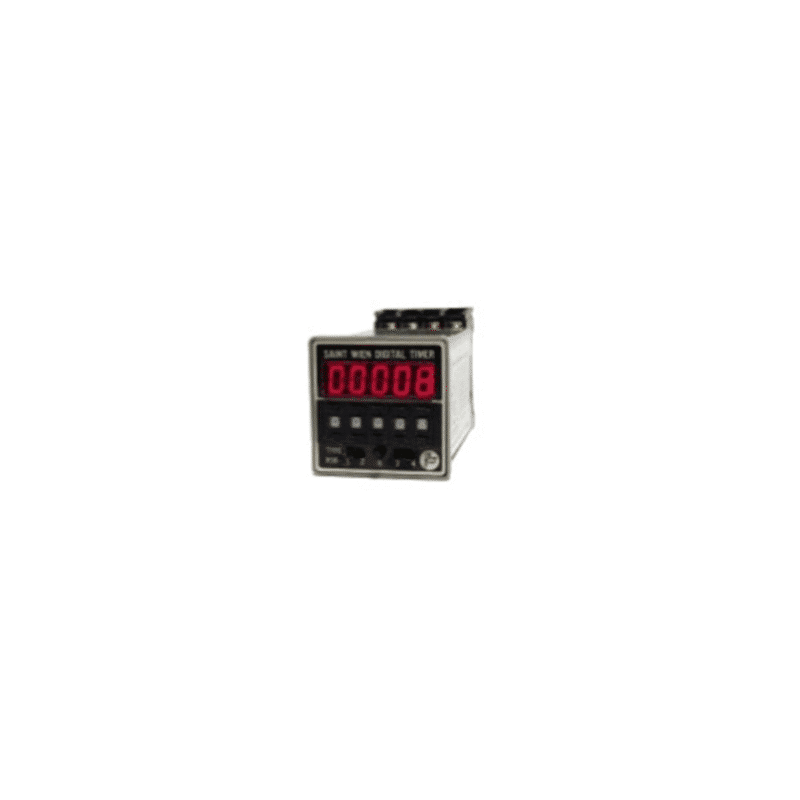

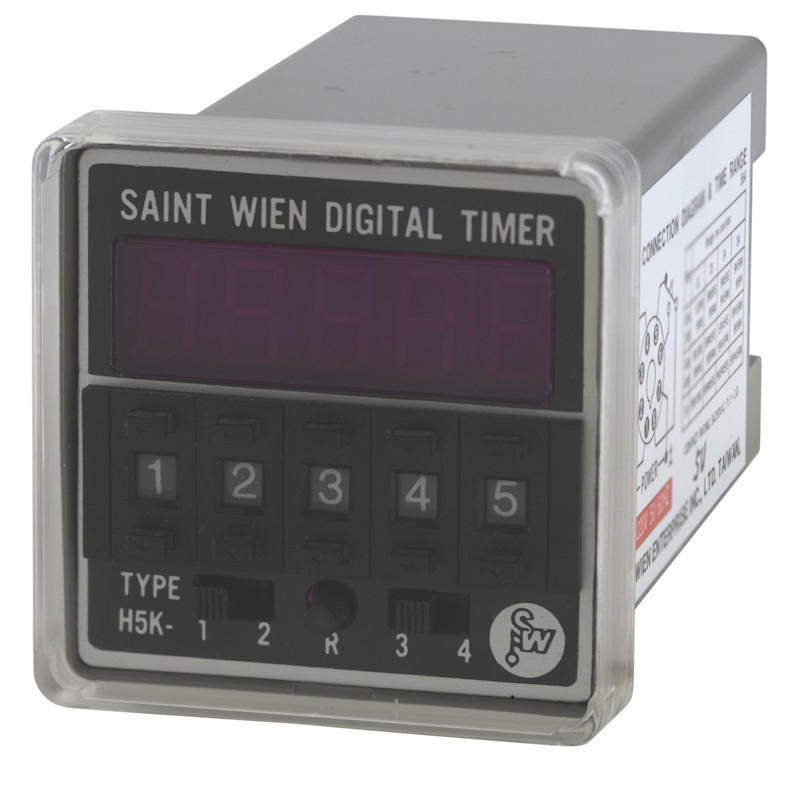

H5K-52-5U – Digital Timer
48x48mm Microcomputer based Digital Timer
H5K-52-5U Features
- Incorporative an exclusive one-chip microcomputer based miniature Digital Timers.
- Up or Down count is available.
- Front panel with 2 range SW, provides 4 different range, covers 0.01S to 999H59M & 9999H.
- External gate input is provided for timer hold.
- Front panel with manual reset push button SW.
- All timer with dispaly.
Brand: SAINT WIEN
Usually in stock
Request a quoteScroll down for product range
| TYPE | H5K-52-5U |
| Digits: | 5 digit LED. 1 preset. |
| Power supply: | 220Vac. |
| Mode: | On delay. |
| Start/reset: | Power on/off. |
| Ranges: | 4 selectable ranges, 999.99S, 999M59S, 9H59M59S, 999H59M. |
| Input: | External gate for timer hold. |
| Output: | Relay SPDT. 3A, 250Vac. |
- Digital Timer H5K -Datasheet 345.15 KB
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H5K-52-5U | Upcount, 5 digit, 50Hz, 220V Digital Timer. | $228.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
