H7N-6DM incorporates a one-chip microprocessor, with 2 counting direction, 4 counting speeds, 3 operation modes and 7 counting versions. Eeprom backup for memory protection.

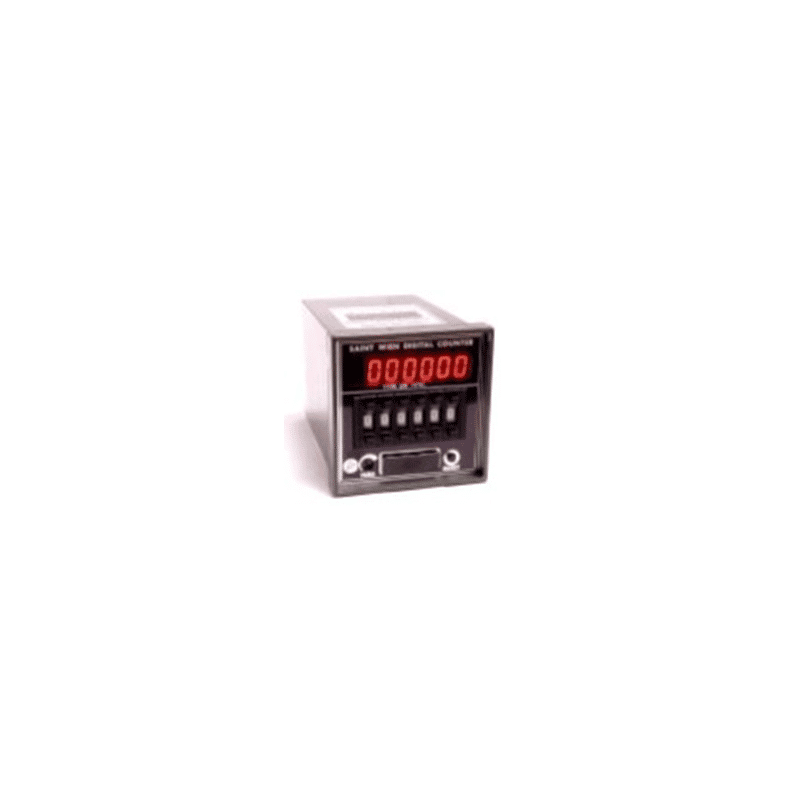

H7N-6DM – Programmable Digital Counter.
72 x 72, 6 digit LED Counter.
H7N-6DM Features
- One-chip microprocessor
- 2 counting directions, 4 counting speeds, 3 operation modes, 7 counting versions)
- All inputs and outputs isolated with photo isolator
- Up, down count and reversible versions available
- 0.05~10s adjustable for auto reset control
- Single or double step preset available
- 8 operation modes for auto/man reset. Operation modes of crpqh for auto reset, nfk for man reset
Brand: SAINT WIEN
Usually in stock
Request a quoteScroll down for product range
| TYPE | H7N-6DM |
| Digits: | 6 digit LED. 1 presets. |
| Power supply: | 110/220Vac. |
| Output: | Relay SPDT. 3A, 250Vac. |
| Sensor power: | 12Vdc, 50mA. |
| Counter……….. | |
| Mode: | Up/down/reversible. |
| Reset: | Panel/remote, Auto/man. |
| Input: | Contact. 30 Hz max. |
| Solid state. 3k Hz max. |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| H7N-6DM | 72 x 72, 6 digit LED programmable digital counter | $300.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
