Cost effective hydrostatic level transmitter for liquid level measurement

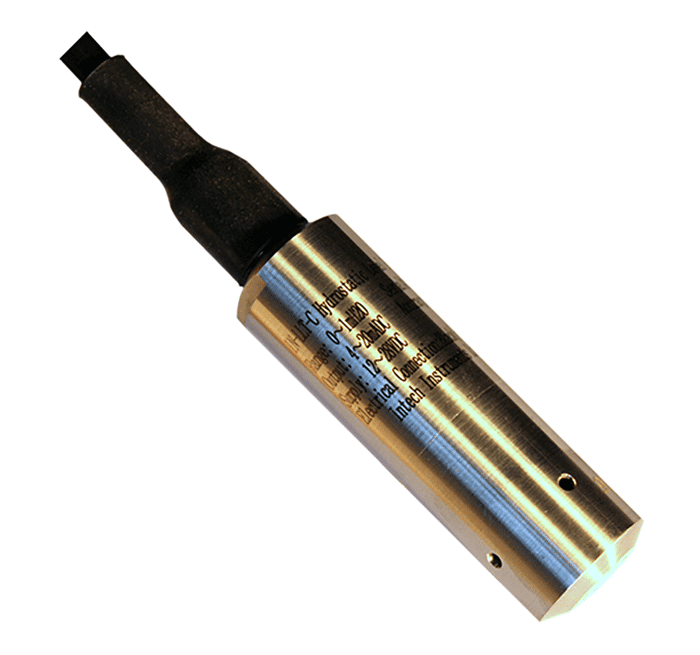

The Intech IN-LLT (Rev 1) hydrostatic level transmitter is a fully sealed submersible pressure instrument. It is designed for liquid level measurement (Water Applications).
The sensor and electronics are housed within a stainless steel IP68 housing and provide end users with an Industrial 4~20mA loop powered or 0~5Vdc signal.
| IN-LLT Specifications | |

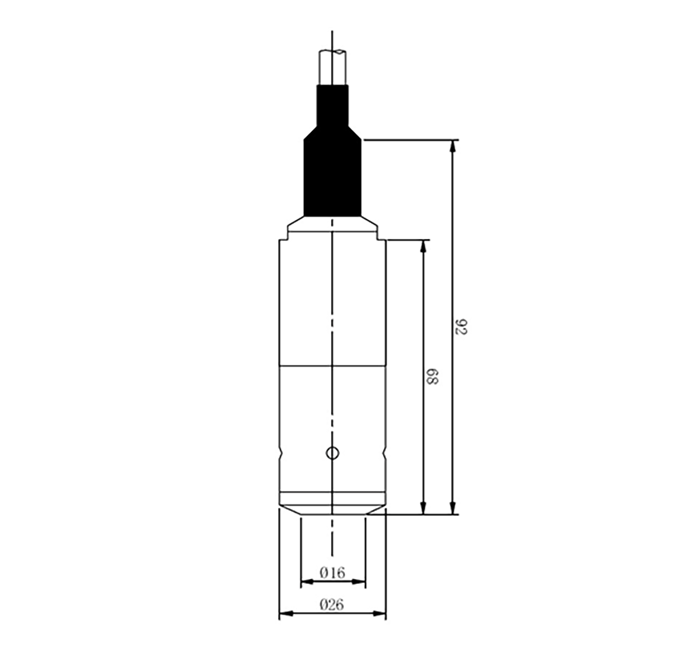

| Housing: | 92mm x ø26mm, Stainless Steel |
| Protection: | IP68. |
| Cable: | Polyethylene Ø9mm. |
| Accuracy: | On full scale, 0.5%. |
| Operating temp: | -10~80°C. |
| Temp coefficient: | ±0.2% / 10°C. |
| Load resistance: | <(UT-12)/0.02. |
| ITEMS | CODE | DESCRIPTION | |||
| SERIES | IN-LLT- | Hydrostatic Level Transmitter | |||
| OUTPUT | C- | 4~20mA Output (loop powered) | |||
| V- | 0~5Vdc Output | ||||
| RANGE | 1 | 0~1 m H2O with 10m Cable | |||
| 5 | 0~5 m H2O with 10m Cable | ||||
| 10 | 0~10 m H2O with 15m Cable | ||||
| 20 | 0~20 m H2O with 30m Cable | ||||
| 50 | 0~50 m H2O with 60m Cable | ||||
| 100 | 0~100 m H2O with 110m Cable | ||||
| 150 | 0~150 m H2O with 160m Cable | ||||
| 200 | 0~200 m H2O with 210m Cable | ||||
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| IN-LLT-C-1 | 0~1m H2O with 10m of cable. 4-20mA Output. | $800.00 | |||||||||
| IN-LLT-C-5 | 0~5m H2O with 10m of cable. 4-20mA Output. | $800.00 | |||||||||
| IN-LLT-V-5 | 0~5m H2O with 10m of cable. 0~5Vdc Output. | $710.00 | |||||||||
| NAA-101 | Terminal box with filter without OVP | $92.00 | |||||||||
| NAA-102 | Terminal box with filter and integral OVP | $432.00 | |||||||||
| NAA-105 | Cable Holding Sliding Sleeve | $234.00 | |||||||||
| NAA-209 | Cable Mounting Wedge Clamp | $40.00 | |||||||||
| -404392-FILT | Pressure equalization filter for cable | $29.00 | |||||||||
Note: Other ranges and cable lengths are available on request, please contact us
All prices are in NZ$, and GST exclusive and are subject to change without notice.Not sure what you need? Ask us anything!
