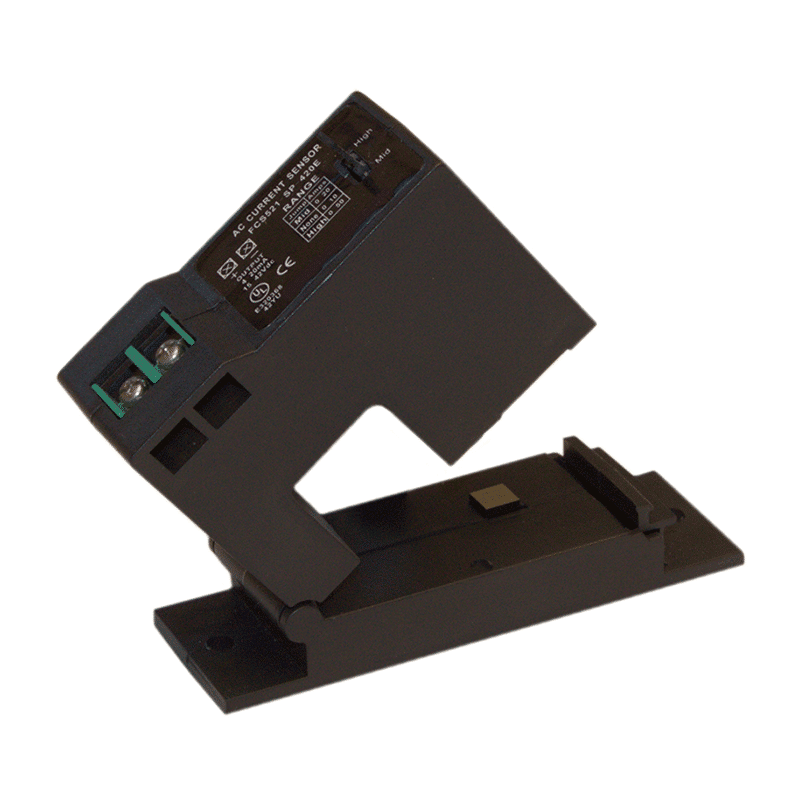

Split Core Current Transmitters
Description
The INCCT Series Split Core Current Transmitters & Switch are a low cost alternative for measuring power and monitoring the operation of fans, pumps, and other equipment.
The Split Core allows easy installation without disconnecting cables. Each of the transmitter models offer three jumper selectable ranges, for measuring from 10A up to 200A.
Output: 4~20mA loop powered.
Typical Applications
| TYPE | INCCT-Transmitter | |
| Amperage Range | Field selectable; up to 200A (depending on model) | |
| Output | 4~20mA loop powered | |
| Power Requirements | Loop powered; 24Vdc | |
| Accuracy | 1% typical | |
| Operating Temperature | -30°C~50°C (-22°F~122°F) | |
| Operating Humidity | 10 to 90% (non-condensing) | |
| Response Time | 200ms | |
| Isolation Voltage | 2000V | |
| Frequency | 50~60 Hz | |
| Enclosure Rating | UL, 94 V-O flammability rated, ABS plastic housing | |
| Agency Approvals | CE, UL, RoHS | |
| Dimensions | Overall | L=100, W=32.5, H=64mm |
| Cable Entry | W=20.5, H=21.5mm | |
| TYPE | INCCT-Switch | |
| Amperage Range | Amperage Range 1.5 to 200Aac | |
| Maximum Switch Rating | 1 A @ 240Vac NOTE: this unit can only switch mains AC, it cannot switch DC signals |
|
| Output | Triac output, normally open | |
| Power Requirements | Self powered from induced current | |
| Operating Temperature | -30°C~50°C, (-22°F~122°F) | |
| Operating Humidity | 0 to 90% (non-condensing) | |
| Isolation Voltage | 2000V | |
| Frequency | 10~100 Hz | |
| Enclosure Rating | UL, 94 V-O flammability rated, ABS plastic housing | |
| Agency Approvals | CE, UL, RoHS | |
| Dimensions | Overall | L=100, W=32.5, H=64mm |
| Cable Entry | W=20.5, H=21.5mm | |
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| INCCT-521-SP | Current Transmitter, Selectable Ranges: 10A, 20A, 50A | $187.00 | |||||||||
| INCCT-2151-SP | Current Transmitter, Selectable Ranges: 100A, 150A, 200A | $187.00 | |||||||||
| INCCT-521-RMS | Current Transmitter, Selectable Ranges: 10A, 20A, 50A, True RMS | $210.00 | |||||||||
| INCCT-2151-RMS | Current Transmitter, Selectable Ranges: 100A, 150A, 200A, True RMS | $210.00 | |||||||||
| INCCS-04K-SW | Current switch, Adjustable: 1.5~200A in 3x ranges, self-powered | $152.00 | |||||||||
