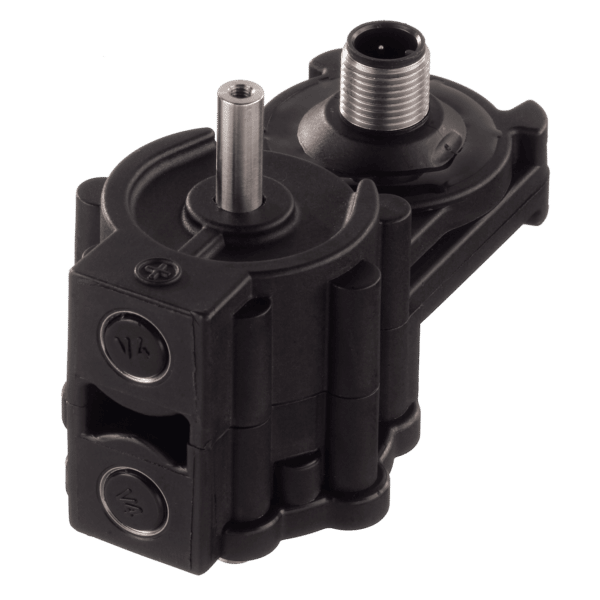

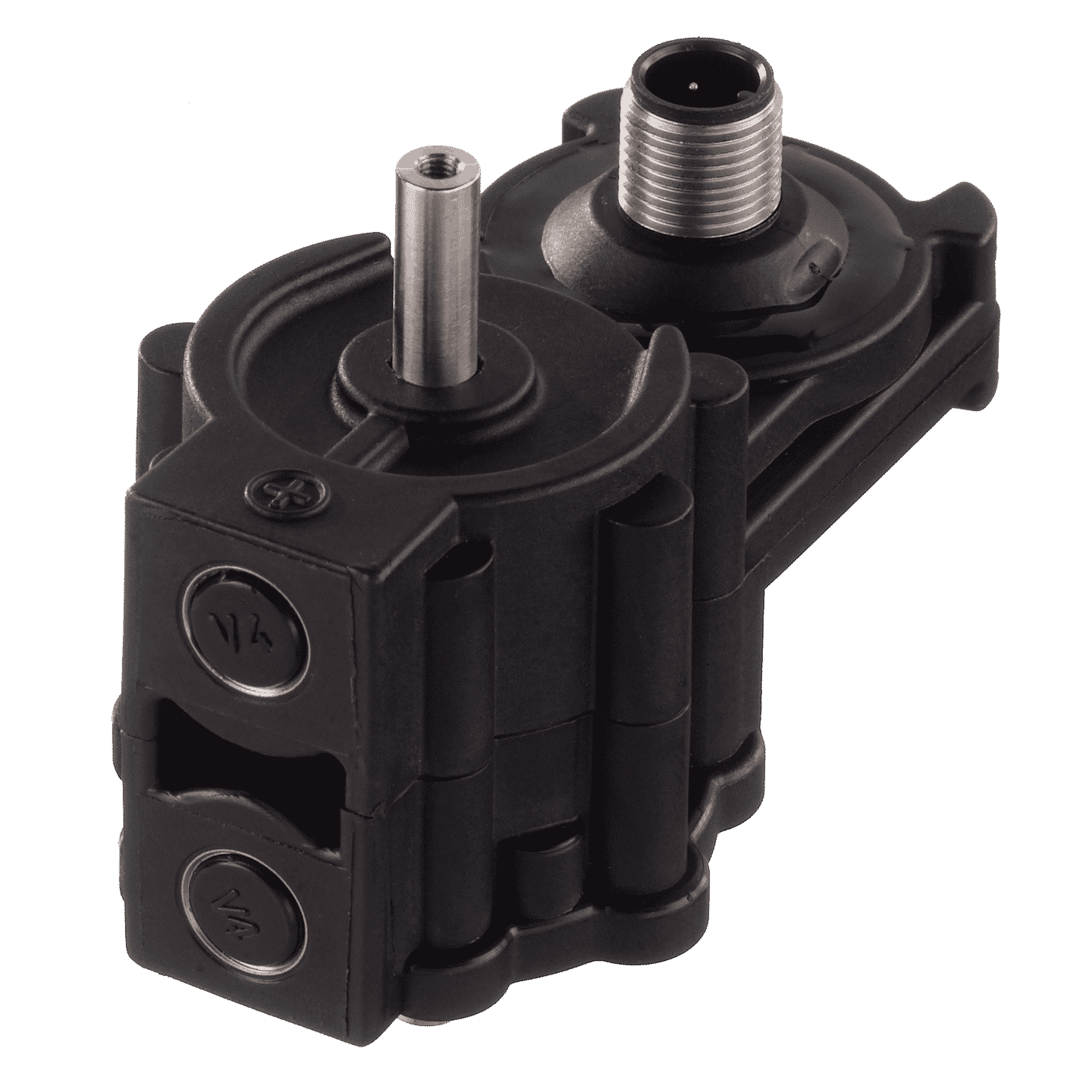

The product acquires the differential pressure in liquid as well as gaseous media and transforms it into an analog output signal. The transmitter is used in particular in filter monitoring.
Brief description
This differential pressure transmitter measures the pressure in liquid and gaseous media.
The difference between the two pressures is converted into an analogue output signal.
The piezo-resistive silicon sensor is built into a stainless steel housing.
| Midas DP10 Specifications | |
| Output | 4~20mA, 2 wire |
| Supply voltage | 10~30Vdc (for 4~20mA output) |
| Operating temperature | Ambient -20~80ºC. Medium -15~100ºC Storage -50~100ºC |
| Cable | Optional Angled socket M12x1 with 2m PVC cable (not included) |
| Mounting bracket | Angled or straight (not included) |
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 401050-452 | Midas DP10 Differential Pressure Transmitter 0~0.4bar | $915.00 | |||||||||
| 401050-457 | Midas DP10 Differential Pressure Transmitter 0~4bar | $915.00 | |||||||||
| 401050-458 | Midas DP10 Differential Pressure Transmitter 0~6bar | $915.00 | |||||||||
| 401050-459 | Midas DP10 Differential Pressure Transmitter 0~10bar | $915.00 | |||||||||
| -00409334- | M12x1 Plug 2m PVC Angled Cable – Unvented | $52.00 | |||||||||
| 401050-AMB | Angled Mounting Bracket | $68.00 | |||||||||
| 401050-SMB | Straight Mounting Bracket | $31.00 | |||||||||
