For liquids and gas.

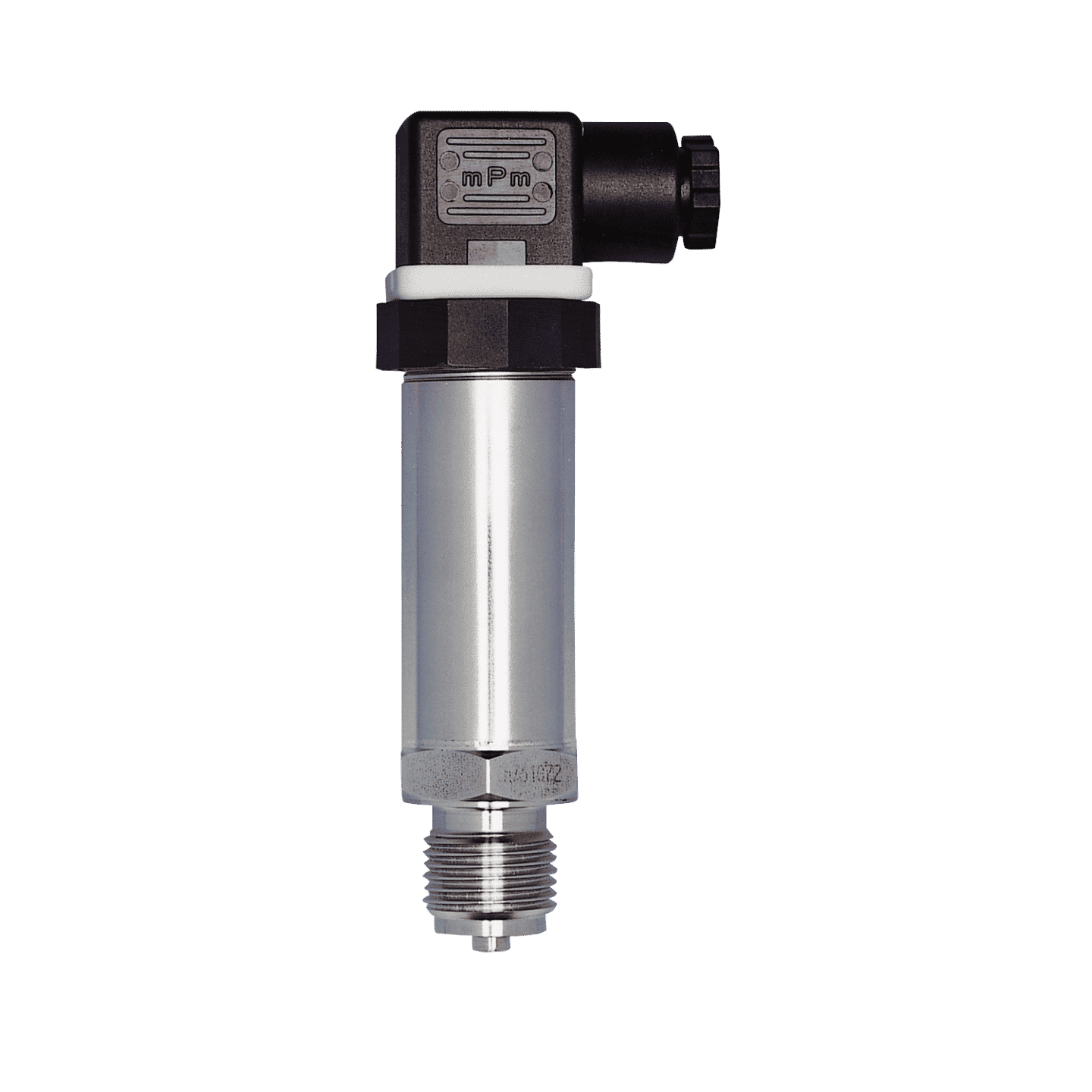

The Jumo dTRANS p30 records the pressure of liquid and gaseous media according to the piezoresistive or thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.
Features:
| JUMO dTRANS P30 Specification | |
| Pressure Transmitter | 2 wire, loop powered |
| Protection | IP65 |
| Wetted Parts | Stainless steel |
| Mounting Position | Unrestricted |
| Temperature | Medium, -30~125°C |
| Ambient | -20~100°C |
| Output | 4~20mA. 2 wire, loop powered UT = 10...30V dc |
| Load Resistance | RL = (US-10V) / 0.02A. max |
| Range | Ranges in gauge pressure; from -1~0 bar to -1~9 bar and from 0~0.1 bar to 0~600 bar. Also some ranges in absolute pressure are available |
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 404366-451-504 | 0~0.25 bar, dTRANS P30 1/2″BSP. | $1,122.00 | |||||||||
| 404366-452-504 | 0~0.4 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-453-504 | 0~0.6 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-454-504 | 0~1 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-456-504 | 0~2.5 bar, dTRANS P30 1/2″BSP. | $1,122.00 | |||||||||
| 404366-457-504 | 0~4 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-458-504 | 0~6 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-459-504 | 0~10 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-460-504 | 0~16 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-461-504 | 0~25 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-463-504 | 0~60 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-464-504 | 0~100 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-465-504 | 0~160 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-466-504 | 0~250 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-468-504 | 0~600 bar, dTRANS P30 1/2″BSP. | $1,122.00 | |||||||||
| 404366-478-504 | -1~0 bar, dTRANS P30 1/2″BSP. | $1,122.00 | |||||||||
| 404366-480-504 | -1+1.5 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-482-504 | -1+5 bar, dTRANS P30, 1/2″BSP. | $1,122.00 | |||||||||
| 404366-483-504 | -1+9 bar, dTRANS P30 1/2″BSP. | $1,122.00 | |||||||||
| 404366-999-504 | -1~+1 bar, dTRANS P30 1/2″BSP. | $1,122.00 | |||||||||
| 00512341_ | M12x1 Plug 5m PVC Straight Cable – Vented | $107.00 | |||||||||
| 00404425 | M12 Adaptor for P30 | $75.00 | |||||||||
| P30-504-Adaptor | 1/2″BSPP to 1/2″ BSPT Adaptor c/w Teflon Crush Washer. | $60.00 | |||||||||
Other models available on request.
