The KR17 Series is designed for the control of temperature, humidity and other physical values of general industrial equipment.

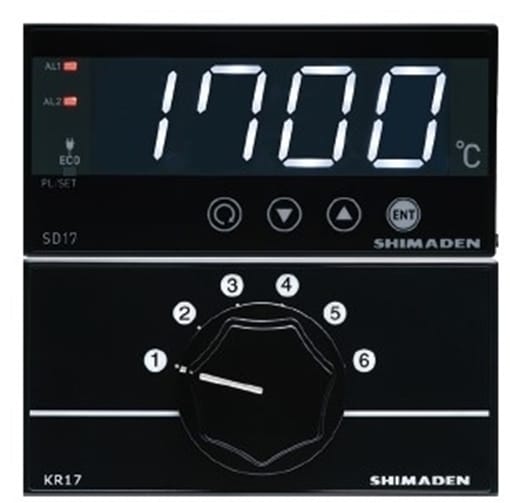

KR17 – Selector Switch (96 x 48mm)
6 Point Rotary Selector Switch.
KR17 Features
- 6 Point Rotary Selector Switch
- Can switch thermocouple and voltage up to 6 points
- Panel Mount
- Ideal for use with the SD17 or SD24 digital indicators
Brand: SHIMADEN
Usually in stock
Request a quoteScroll down for product range
| TYPE | KR17 |
| No of switching points: | 6 |
| No of switching circuits : | 2 |
| Swtiching operation: | Rotary switching |
| Applicable signal: | Thermocouples, voltage (R.T.D. not supported) |
| Contact rating: | |
| Contact method: | Contact Slide |
| Voltage: | 30V DC Maximum |
| Current: | 100mA DC maximum |
| Contact resistance : | 300m ohms maximum |
| Operating Ambient Temperature: | -10 ~+50°C |
| Operating ambient humidity range: | 90%RH or less (no dew condensation) |
| Applicable standard: | Safety standard: IEC 61010-1 and EN 61010-1; IEC 61010-2-030 and EN 61010-2-030 EMC standard: EN 61326-1 Complies with RoHS Directive |
| Material: | PPE resin |
| Color: | Case: Munsell N1 equivalent Front side: Munsell N1 equivalent |
| External dimensions : | H48 x W96 x D128mm (100 mm depth inside the mounting panel) |
| Panel cutout: | H45 x W92 mm |
| Installation: | One-touch mounting through panel cutout |
| Panel thickness: | 1.0-4.0mm |
| Weight: | Approx. 250gr |
| ITEMS | CODE | SPECIFICATIONS | |
| SERIES | KR17- | Six point Rotary selector switch | |
| REMARKS | 0 | Without | |
| 9 | With | ||
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| KR17-0 | 6 Way Multiple Point Selector Switch | $255.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.
