| TYPE | LPI-CT |
| Input | Current: 0~1Aac or 0~5Aac; 50/60Hz |
| Input | DC Resistance 0.01Ω Max |
| Max Over-range | 10Aac Continuous |
| Output | mA: 2 wire 4~20mA (Loop Powered) |
| mV Test | 40~200mV ±1% ∝ 4~20mA. Other Test Voltages Available. e.g. 1~5V Note: mV Test Increases Power Supply & Decreases Load Resistance |
| Power Supply | 9~33Vdc |
| Supply Voltage Sensitivity | <±0.01%/V FSO |
| Output Load Resistance | 750Ω @ 24Vdc (50Ω/V Above 9Vdc) |
| Maximum Output Current | Limited to <30mA |
| EMC Emissions Compliance | EN 55022-A |
| EMC Immunity Compliance | EN 50082-1 |
| Safety Compliance | EN 60950 |
| Mains Isolation. | 300Vac |
| Isolation Test Voltages | AC Input to Output; 3000Vac 50Hz for 1 min Between 2 LPI-CT-X2 Units; 3000Vac 50Hz for 1 min |
| Linearity and Accurate to | <±0.5% FSO Typical |
| Repeatability | <±0.1% FSO Typical |
| Ambient Drift | <±0.02%/C FSO Typical |
| R.F. Immunity | <1% Effect FSO Typical |
| Response Time | 2sec Typical |
| Operating Temperature | 0°C~70°C |
| Storage Temperature | -20°C~80°C |
| Operating Humidity | 5~85%RH Max, Non-Condensing |
| Weight | LPI-CT-X1; 130g, LPI-CT-X2; 170g |
| Dimensions | L=100, W=22.5, H=100mm |

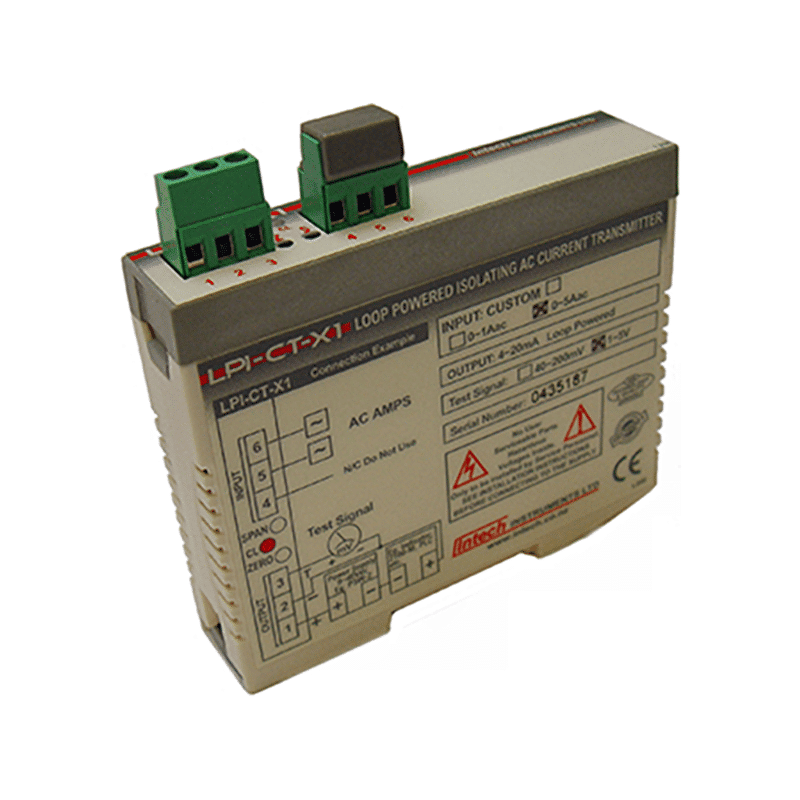

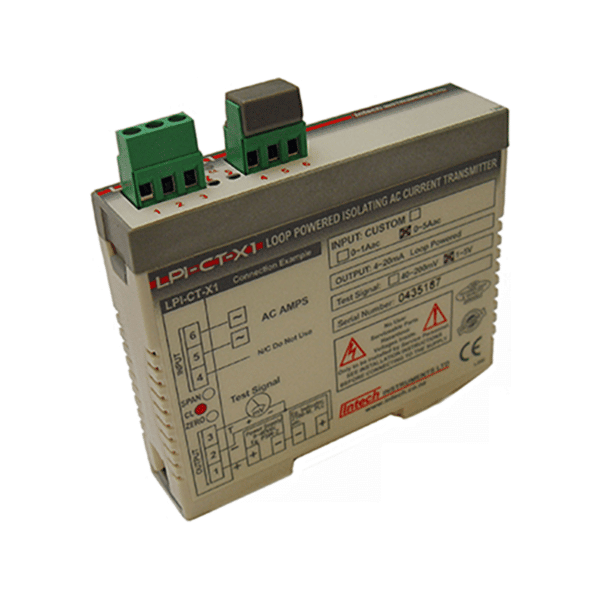

LPI-CT-X – AC Current Transmitter
AC Current to DC Isolating Transmitter
LPI-CT-X Features
- Field programmable 1Aac or 5Aac
- Mains isolated
- High accuracy
- Reverse polarity protected
- LED indication of current loop (CL)
- Compact DIN rail mount enclosure
- 40~200mV output test signal
- Easy to install
- Low cost
- Power supply range 9~33Vdc
- Available with one or two transmitters per enclosure
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPI-CT-X1-5 | 0~5Aac Input Range, One Transmitter in one enclosure | $297.00 | |||||||||
| LPI-CT-X2-5 | 0~5Aac Input Range, Two Transmitters in one enclosure | $440.00 | |||||||||
Other ranges available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
