The M7 indicator is powered by a 4~20mA loop (no extra power required), and connects directly onto the 4~20mA loop using a Hirschmann plug type. The indicator can display up to 4 digits: from -1999 to 9999 with high precision. The on board industrial-grade microcontroller delivers a highly accurate reading in real time. The display can be easily configured to any application using the two buttons for setup and calibration.

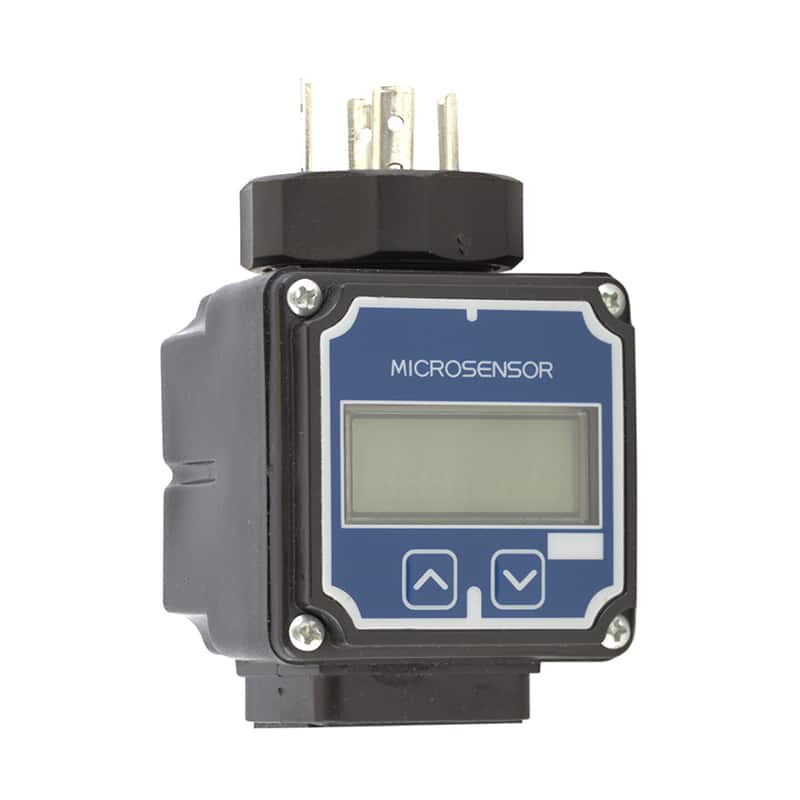

M7 – 4~20mA Loop Powered Indicator

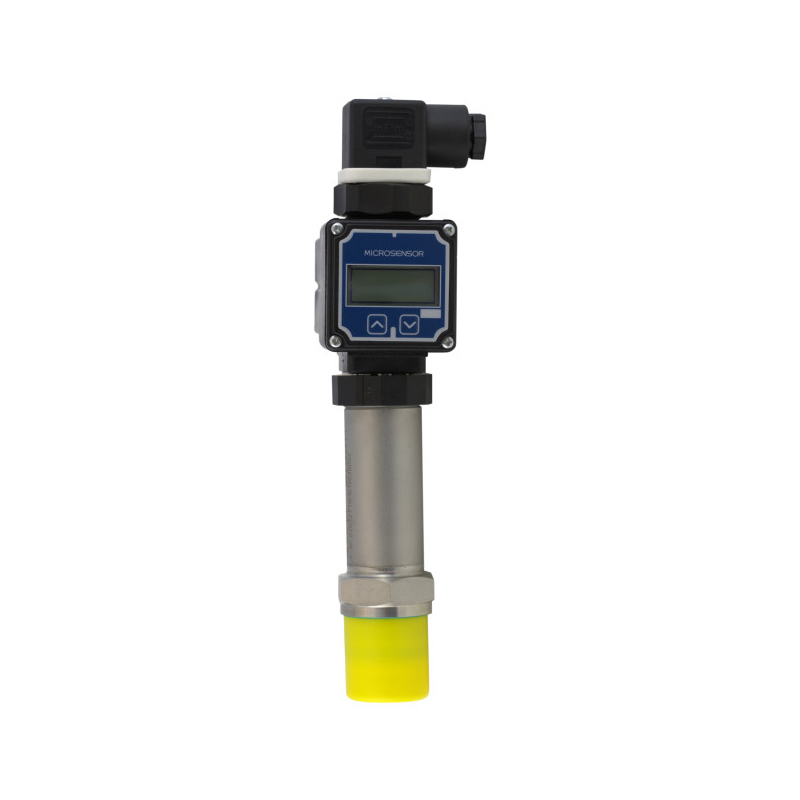

Usually used with our Pressure Transmitters.
M7 features
- 4~20mA loop powered input.
- 4 digit display, -1999 to 9999.
- Stable and reliable performance.
- Easy calibration via on-screen menu.
- Widely used both in bright light and dark light conditions.
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
| TYPE | M7 |
|---|---|
| Power Supply | 4~20mA DC (Loop Powered). |
| Range | 3~25mA. |
| Limited Range | <80mA. |
| Accuracy | ±0.2%FS. |
| Display detail | 4 Digits LCD. |
| Display range | -1999~9999. |
| Voltage drop | ≤3.8V. |
| Operation Temperature | -10°C~60°C. |
| Storage Temperature | -20°C~70°C. |
| Operating Humidity | 0%~85%RH Non Condensing. |
| Temperature Coefficient | ≤80ppm/°C Typical |
| Sampling rate | 3 times per second. |
| Shock | 5g, 10Hz~200Hz. |
| Impact | 50g, 11ms. |
| Electrical connection | Hirschmann plug type. |
| Housing | Plastic. |
| Dimensions | 45.4 x 66.9 x 46.9mm (WxHxD). |
| Weight | 70g. |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M7 | 4~20mA Loop Powered Indicator for P30 | $195.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
