| MTL SERIES | |||||||||||
| Technical Specifications and Ordering Information | |||||||||||
| Item | Code | Specification | |||||||||
| Model | MTL- | Mineral Insulated Thermocouple with Leads | |||||||||
| Hot Junction | I | Isolated Junction (Standard) | |||||||||
| B | Bonded Junction | ||||||||||
| Outer Diameter | 1.0 | Millimetres | |||||||||
| 1.5 | Millimetres | ||||||||||
| 3.0 | Millimetres | ||||||||||
| 4.5 | Millimetres | ||||||||||
| 6.0 | Millimetres | ||||||||||
| 10.8 | Millimetres | ||||||||||
| Calibration | K | Thermocouple (-270~1260°C) | |||||||||
| J | Thermocouple (-210~750°C) | ||||||||||
| T | Thermocouple (-270~370°C) | ||||||||||
| N | Thermocouple (-270~1300°C) | ||||||||||
| 2K | Duplex Thermocouple | ||||||||||
| 2J | Duplex Thermocouple | ||||||||||
| 2T | Duplex Thermocouple | ||||||||||
| 2N | Duplex Thermocouple | ||||||||||
| X | Other (Type R, S, etc). | ||||||||||
| Sheath Material | 310- | Stainless Steel (K, N) 1100°C | |||||||||
| 600- | Inconel ® (K, N) 1200°C | ||||||||||
| NCB- | Nicrobell ® (K, N) 1250°C (Duplex available on 6.0mm Sheath) |
||||||||||
| 610- | Ceramic (Max 1400°C) | ||||||||||
| 710- | Ceramic (Max 1600°C) | ||||||||||
| X- | Other | ||||||||||

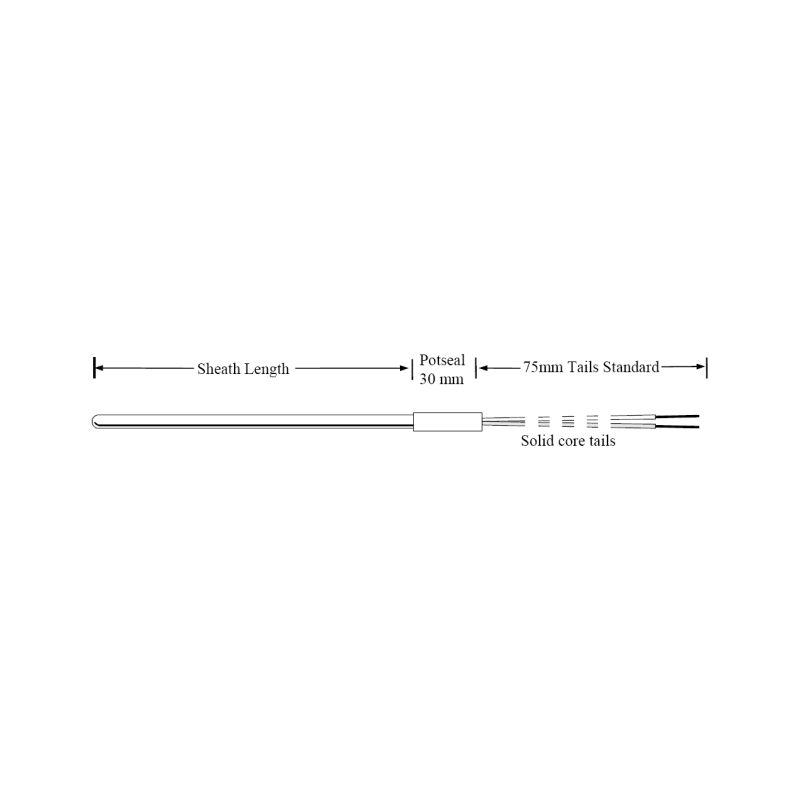

| Sheath Length | xxx | Millimetres | |||||||||
| Potseal Epoxy | EL | Max Temp 120°C | |||||||||
| EH | Max Temp 300°C | ||||||||||
| Tails/Lead | A | Solid Core Tails | |||||||||
| B | 7/0.2 PVC Insulated Tails | ||||||||||
| C | 7/0.2 Fibreglass Insulated Tails | ||||||||||
| D | 7/0.2 PVC/PVC Lead | ||||||||||
| E | 7/0.2 F/G-F/G Lead | ||||||||||
| F | 7/0.2 F/G-F/G-SSOB Lead* | ||||||||||
| G | 7/0.2 PTFE/PTFE Lead | ||||||||||
| H | 7/0.2 PTFE/PTFE Lead SSOB* | ||||||||||
| X | Other | ||||||||||
| Tail/Lead Length | xxx | Millimetres | |||||||||

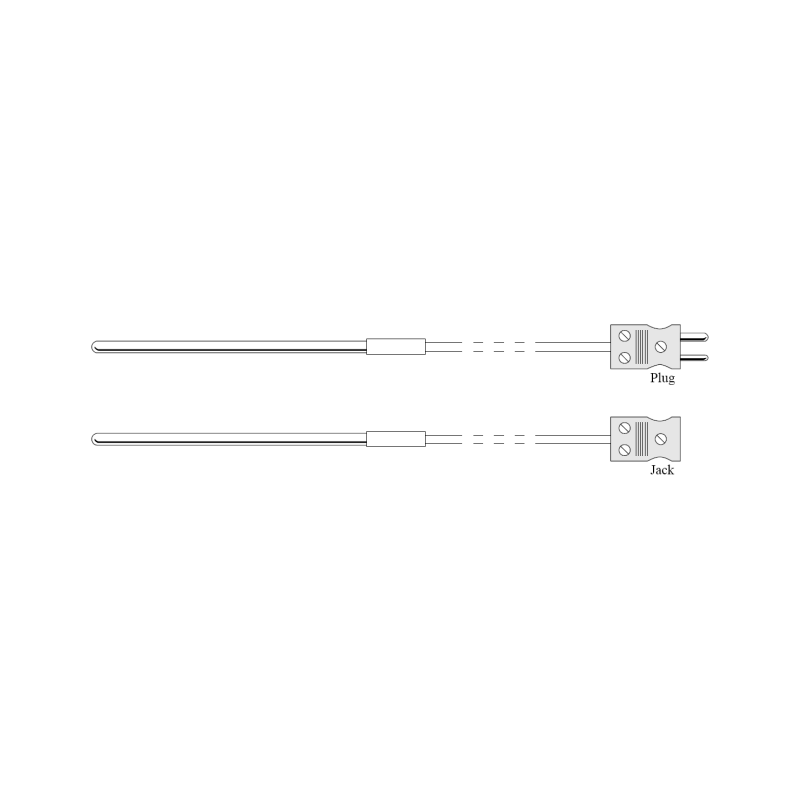

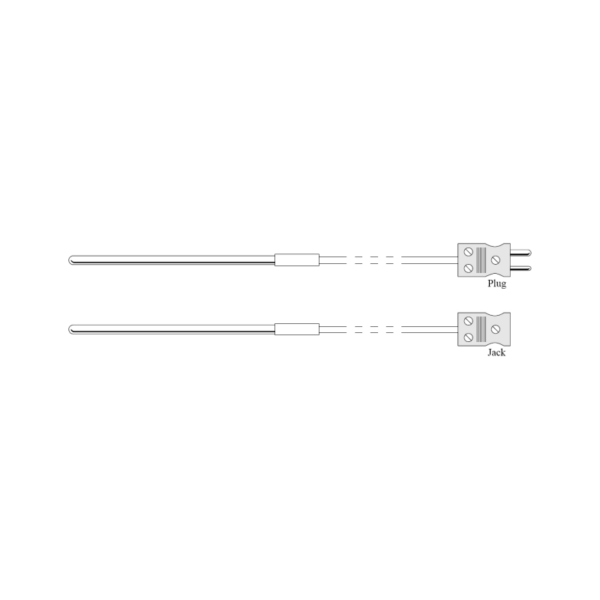

| Connector | X | None | |||||||||
| MP | Mini Plug (180°C) | ||||||||||
| MJ | Mini Jack (180°C) | ||||||||||
| P | Standard Plug (180°C) | ||||||||||
| J | Standard Jack (180°C) | ||||||||||
| XP | High Temperature Plug (260°C)** | ||||||||||
| XJ | High Temperature Jack (260°C)** | ||||||||||
| * Stainless Steel Overbraid – SSOB | |||||||||||
| ** Standard size Plugs and Jacks only. | |||||||||||
|
Model No. Example: MTL-I4.5K310-150EHF2000X (Mineral Insulated Thermocouple with Lead, Isolated Junction, 4.5mm diameter, Type K, 150mm long, Stainless Steel Sheath Length, Max Temp 300°C and 2m of F/G F/G SSOB Lead). |
|||||||||||
MTL Series – Thermocouples with Leads

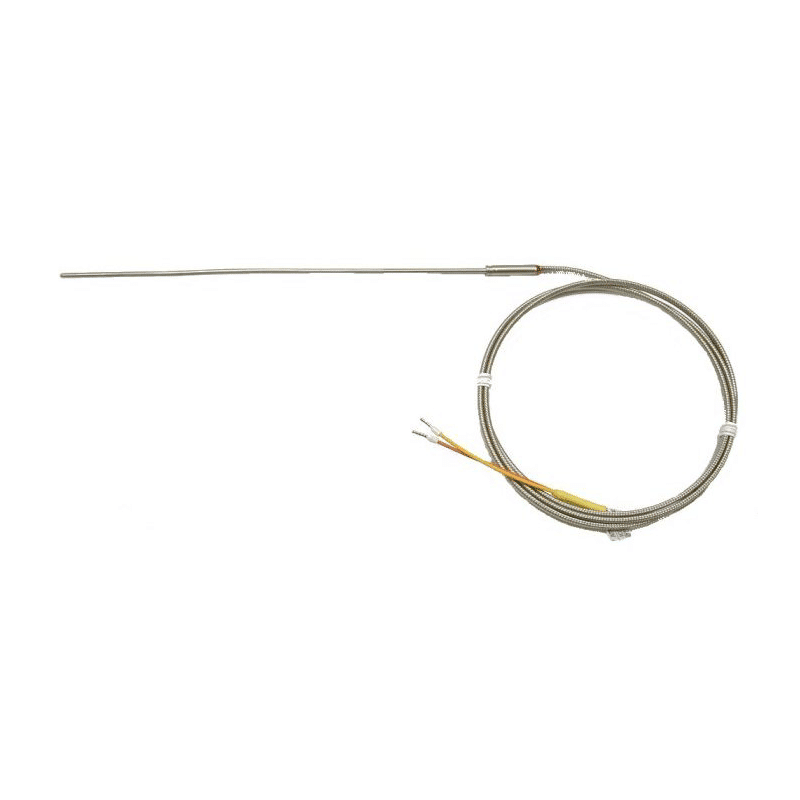

Mineral Insulated Thermocouples with leads
MTL Series Features:
- K, J, T and N calibration
- Temperature ranges from -270 to +1600°C
- Maximum temperature at probe tip: 1100°C
- Pot seal rated to 300°C
- Isolated and bonded hot junctions
- Various sheath materials for different environments (Inconel 600, 310SS, Cupro Nickel, Nicrobell)
- Sheath diameters from 1.0mm to 10.8mm
- Various Lead insulation materials (PVC, Fibreglass, Stainless Steel Overbraid, Stainless ArmourFlex)
Brand: INTECH
Usually in stock
See Temperature Tables for Thermocouple HERE
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTL-I3.0K310-150EHF2000X | MTL Thermocouple 3.0mmØ x 150mm, Type K, 2m Fiberglass SSOB | $114.00 | |||||||||
| MTL-I3.0K310-300EHF2000X | MTL Thermocouple 3.0mmØ x 300mm, Type K, 2m Fiberglass SSOB | $116.00 | |||||||||
| MTL-I4.5K310-100EHF2000X | MTL Thermocouple 4.5mmØ x 100mm, Type K, 2m Fiberglass SSOB | $114.00 | |||||||||
| MTL-I4.5K310-300EHF2000X | MTL Thermocouple 4.5mmØ x 300mm, Type K, 2m Fiberglass SSOB | $120.00 | |||||||||
| MTL-I4.5K310-300EHE1000XN | Thermocouple Probe with Lead, 4.5mm x 300mm, Type K, 1m of Fiberglass cable | $100.00 | |||||||||
| MTL-I6.0K310-150-EHF2000X | MTL Thermocouple 6.0mmØ x 150mm, Type K, 2m Fiberglass SSOB | $117.00 | |||||||||
| MTL-I6.0K310-300EHF2000X | MTL Thermocouple 6.0mmØ x 300mm, Type K, 2m Fiberglass SSOB | $124.00 | |||||||||
| MTL-MISC | MTL Custom Made Probe – If you need something that is not here. | $0.00 | |||||||||
Note: The above covers the more common Thermocouple probes. We can supply probes to your particular specification. Please see Ordering information and contact us.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
