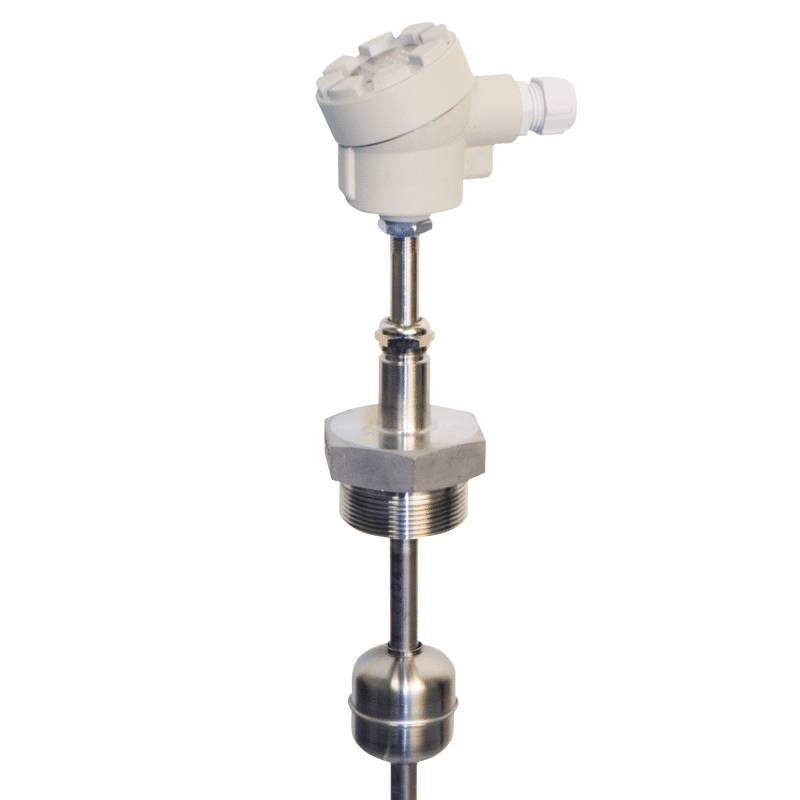

The NIVOPOINT magnetic float level switches are suitable for single, or multipoint level controlling tasks in non-hazardous or hazardous areas. The device consists of a probe tube, a float incorporating a magnet and a housing containing the connection terminals. A maximum of 5 switches can be incorporated in the probe. A sliding sleeve on the top of the probe provides for a simultaneous ±25 mm adjustment possibility of the positioning of the switches. The wetted parts of the level switch are made of stainless steel. The plastic coated versions are suitable for level detecting of aggressive liquids, and the ATEX certified versions are applicable for level switching of explosive materials.
Floats and process connections can be selected according to the measured medium and the application.
The mini type NIVOPOINT magnetic float level switches are suitable for maximum level indication in small tanks. The small size and easy mounting of the switch allows maximum level detection in appliances or tanks using process connections made for different other purposes.
