| TYPE | PI-D | |
| Input | Voltage | Field Programmable From 10mV to 150Vdc and Bipolar |
| Minimum Input Resistance = 200kΩ | ||
| Maximum Over-range = 170Vdc Continuous | ||
| Current | Field Programmable From 200µA to 100mAdc and Bipolar | |
| Input Resistance = 25Ω | ||
| Maximum Over-range = 120mAdc Continuous | ||
| Transmitter | P/S 20Vdc±5% Common to Input Com (Terminal 4) | |
| Max Load = 30mA | ||
| Ripple < 20mV Typical at 30mA Load | ||
| Output | Voltage | Field Programmable From 500mV to ±12Vdc |
| Maximum Output Drive = 10mA | ||
| Current | Field Programmable From 1mA to ±20mAdc | |
| Maximum Output Drive = 10Vdc (500Ω @ 20mA) | ||
| Power | H | 85~264Vac/dc; 50/60Hz; 5VA |
| M | 22~85Vac/dc; 50/60Hz; 5VA, 32Vac Min, When Using 20V TX. P/S | |
| L | 10~28Vac/dc; 50/60Hz; 5VA | |
| Circuit | Sensitivity <±0.001%/V FSO Typical | |
| Accurate to | <±0.1% FSO Typical | |
| Linearity & Repeatability | <±0.1% FSO Typical | |
| Ambient Drift | <±0.01%/C FSO Typical | |
| Noise Immunity | 125dB CMRR Average (1600Vdc Limit) | |
| EMC Compliances | Emissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical | |
| Safety Compliance | EN 60950 | |
| Mains Isolation | 250Vac | |
| Isolation Test Voltages | Mains to Input/Output 3kVac 50Hz for 1min; Input to Output 1.6kVdc for 1min | |
| Response Time | 200msec Typical (From 10 to 90% 50msec Typical) | |
| Operating Temperature & Humidity | 0°C~60°C (Storage Temperature -20°C~80°C) 5~85%RH max, Non-Condensing | |
| Dimensions and Mounting | L=80, W=50, H=120mm. Mounts on 35mm Symmetrical Mounting Rail | |

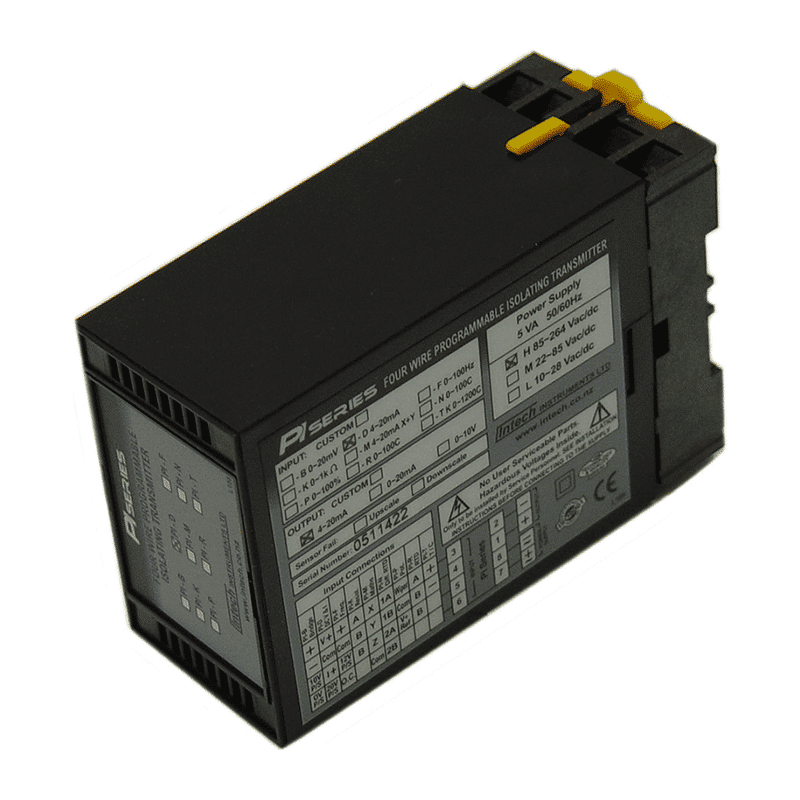

PI-D – Programmable Isolating DC Transmitter
Programmable Isolating DC Voltage or DC Current Input to DC Current or DC Voltage Output Transmitter
PI-D Features
- Field programmable input and output ranges
- Bi-Polar input and output ranges
- Isolated input to output 1.6kV
- High accuracy 0.1%
- Universal AC/DC power supply
- Selectable 3 second input damping
- Transmitter power supply standard
- Compact DIN rail mount enclosure
- Available standard or special calibration
- Programmable input ranges from 0~10mV to 150V, 0~200uA to 50mA
- Programmable output ranges from 0~500mV to ±12V, 0~1mA to ±20mA
- On board 20Vdc power supply for primary transmitter
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PI-D-X | DC Transmitter Input 4~20mA; Output 4~20mA; 85~264Vac/dc Power Supply | $530.00 | |||||||||
| PI-D-12-9-L | DC Transmitter Input 4~20mA; Output 4~20mA; 10~28Vac/dc Power Supply | $610.00 | |||||||||
Other ranges available on request.
