Inductive proximity sensors are a class of non-contact devices that can detect the presence or absence of metallic objects without the need for physical contact.

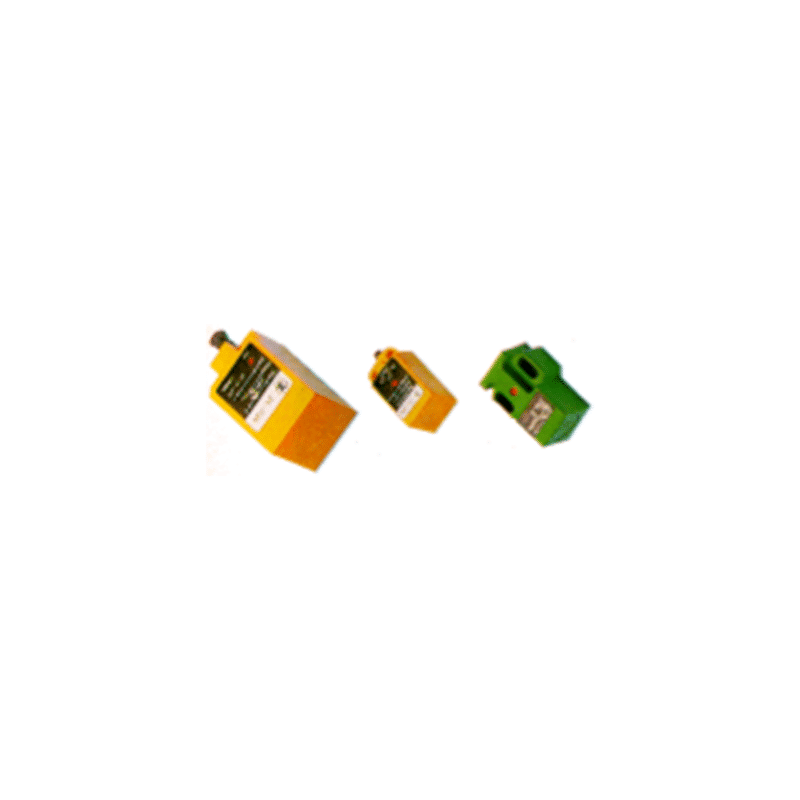

PL Series – Inductive Proximity Sensor with LED indicator
Square Sensors.
PL Series Features
- LED indicator
- IP67 Protection
- Square design
Brand: SAINT WIEN
Usually in stock
Request a quoteScroll down for product range
| Type | PL Series |
|---|---|
| Sensing Distance (Max mm) | PL10 = 10mm PL4 = 4mm PLH5 = 5mm |
| Detectable object (Min. mm) | 3x3mm Ferrous metal |
| Response (Max) | 200Hz |
| Power Source | 10~30Vdc |
| Load Current (Max) | 200mA |
| Consumption | 5mA |
| Cable Length | 2m |
| Housing Material | ABS |
| Ambient Temperature | -25°C~70°C RH85% max. |
| Dimensions (mm) | PL10 = 52(L) x 30(W) x 30(H) PL4 = 36(L) x 18(W) x 18(H) PLH5 = 48(L) x 18(W) x 18(H) |
| Protection Grade | IP67 |
| Output | PL10 / PLH5 = PNP PL4 = PNP/NPN |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PL4P | 4mm range, 18 x 18 x L35mm, Output PNP, Proximity Sensor. | $32.00 | |||||||||

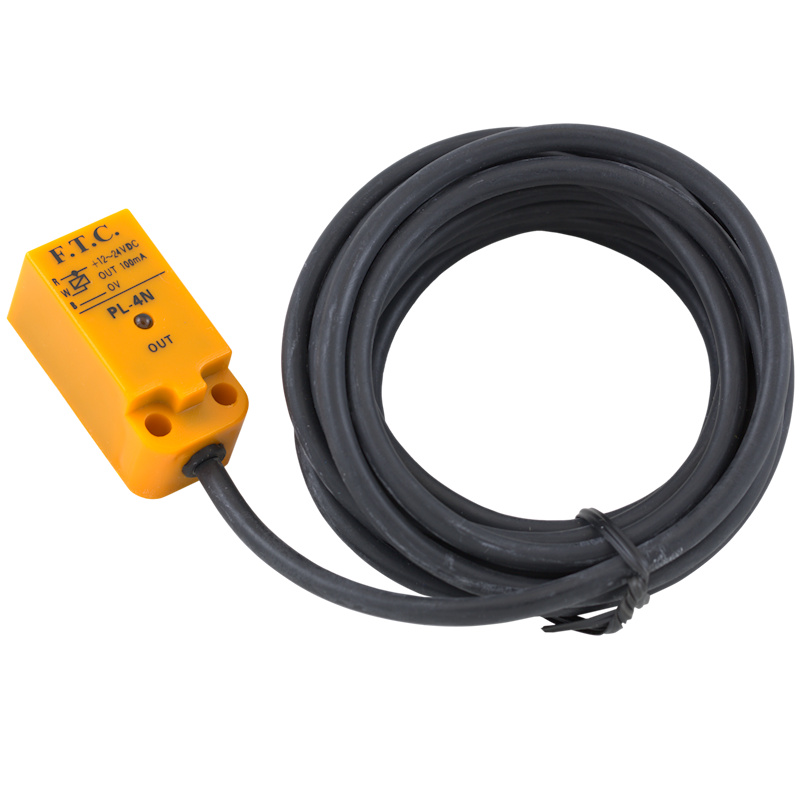

| PL4N | 4mm range, 18 x 18 x L35mm, Output NPN, Proximity Sensor. | $32.00 | |||||||||
| PLH5P | 5mm range, 18 x 18 x L38mm, Output PNP, Proximity Sensor. | $34.00 | |||||||||
| PL10P | 10mm range, 30 x 30 x L53mm, Output PNP, Proximity Sensor. | $60.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
