PR Series – Paperless Recorders

Low cost, Popular and High-end Paperless Recorders.

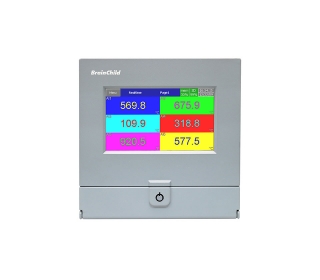

Paperless Recorder PR10
PR20 Paperless Chart Recorder

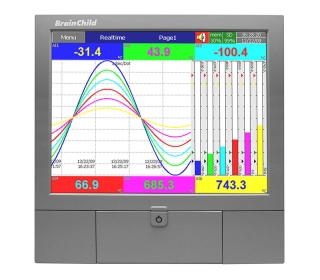

Paperless Graphic Recorder PR30

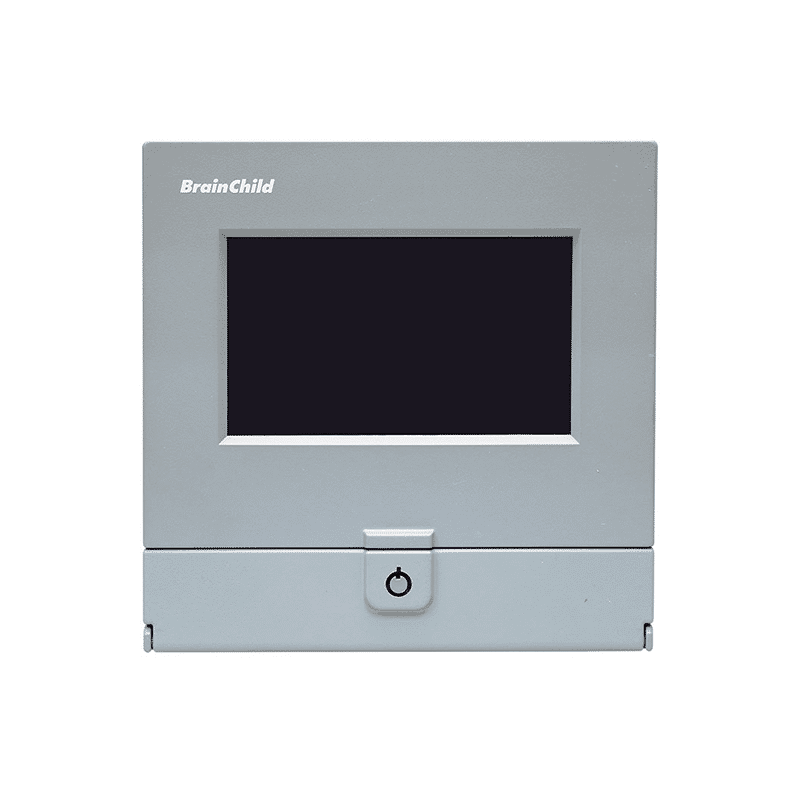

Paperless Temperature Recorder PR10

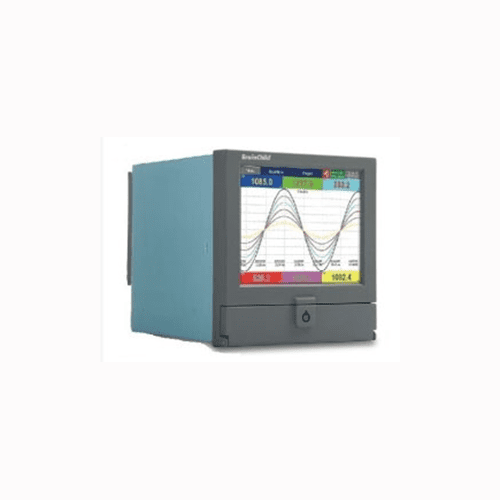

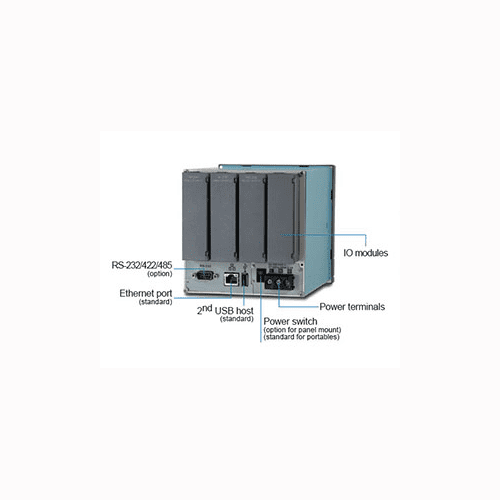

PR20 Paperless Chart Recorder

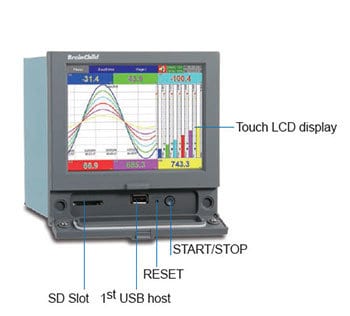

PR20 Paperless Chart Recorder

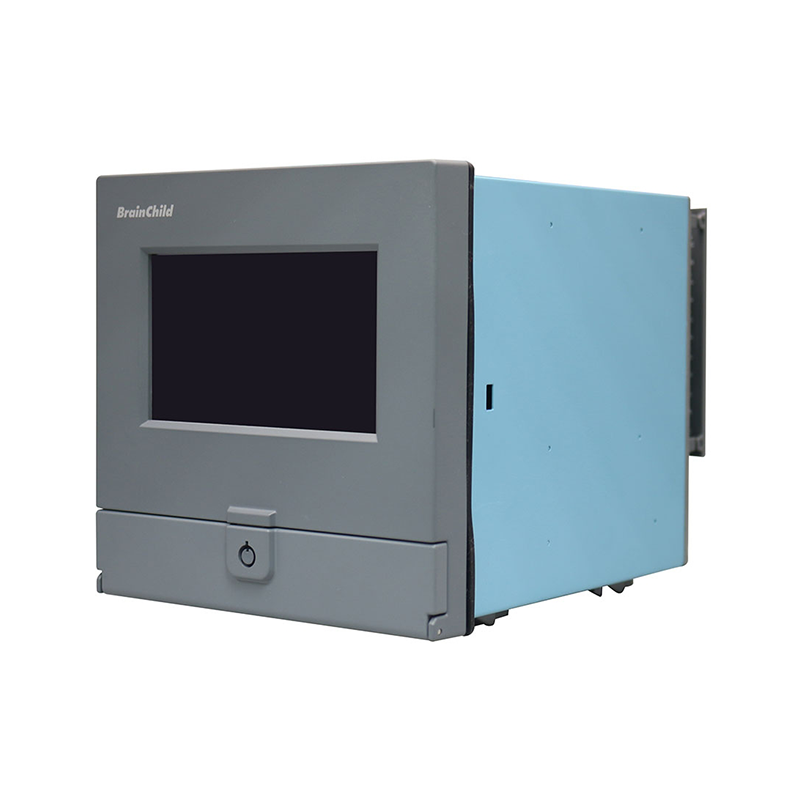

Chart Recorder Paperless Brainchild PR10 Side

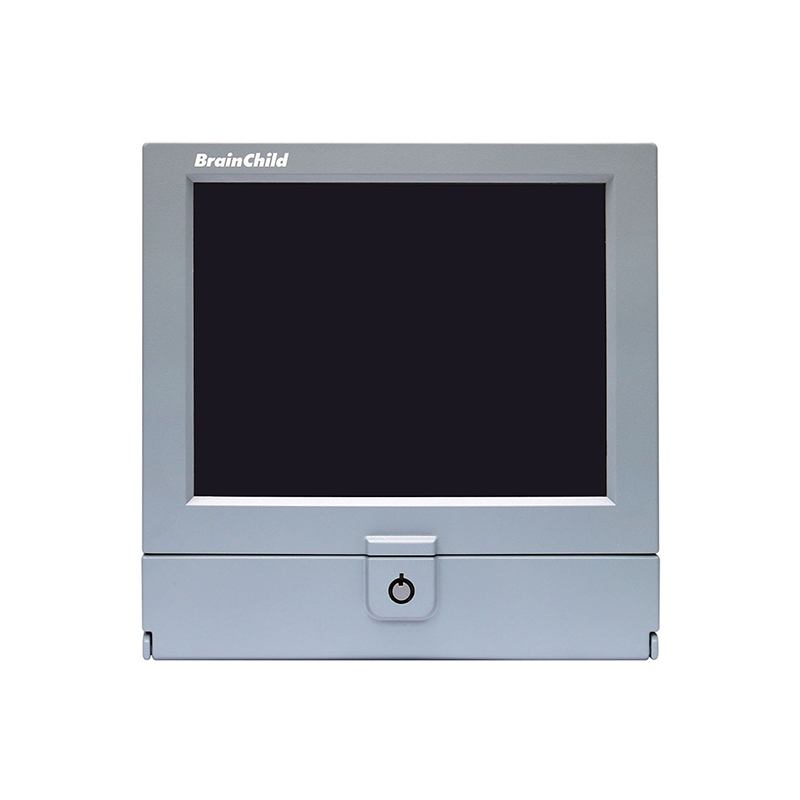

Chart Recorder Paperless Brainchild PR20

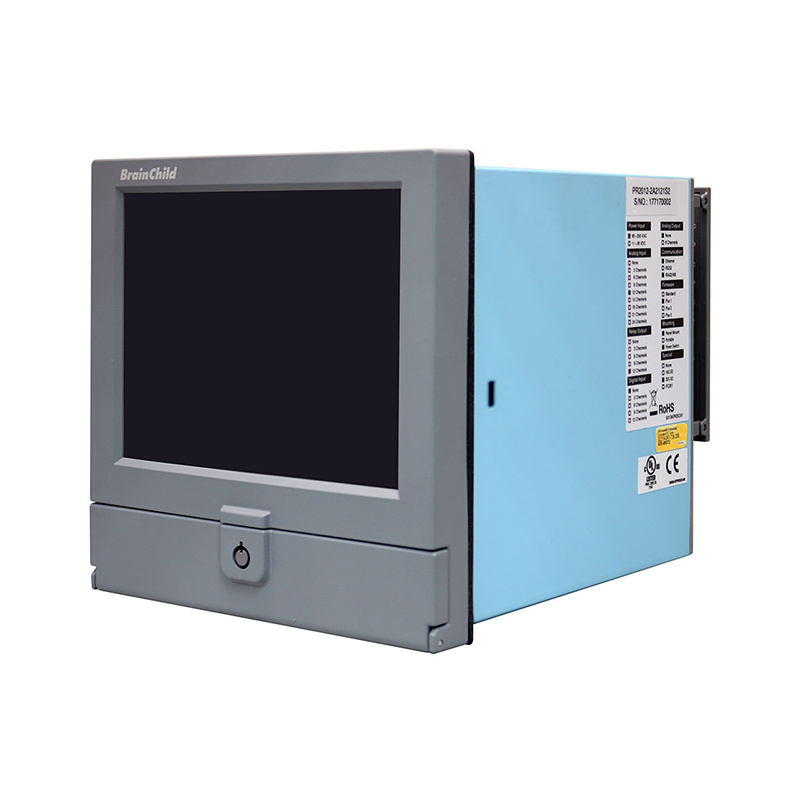

Chart Recorder Paperless Brainchild PR20 Side

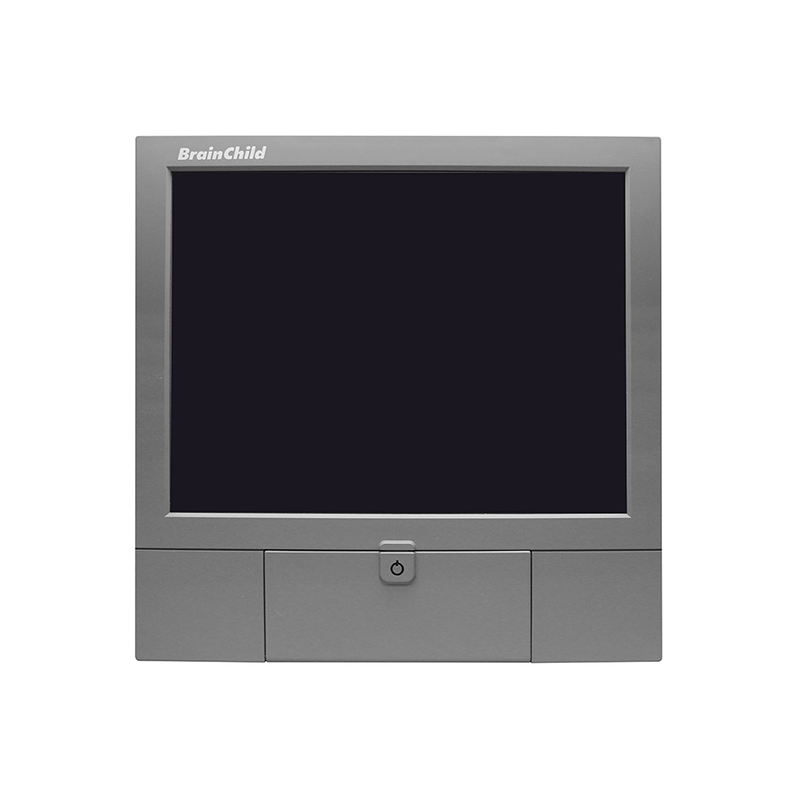

Chart Recorder Paperless Brainchild PR30

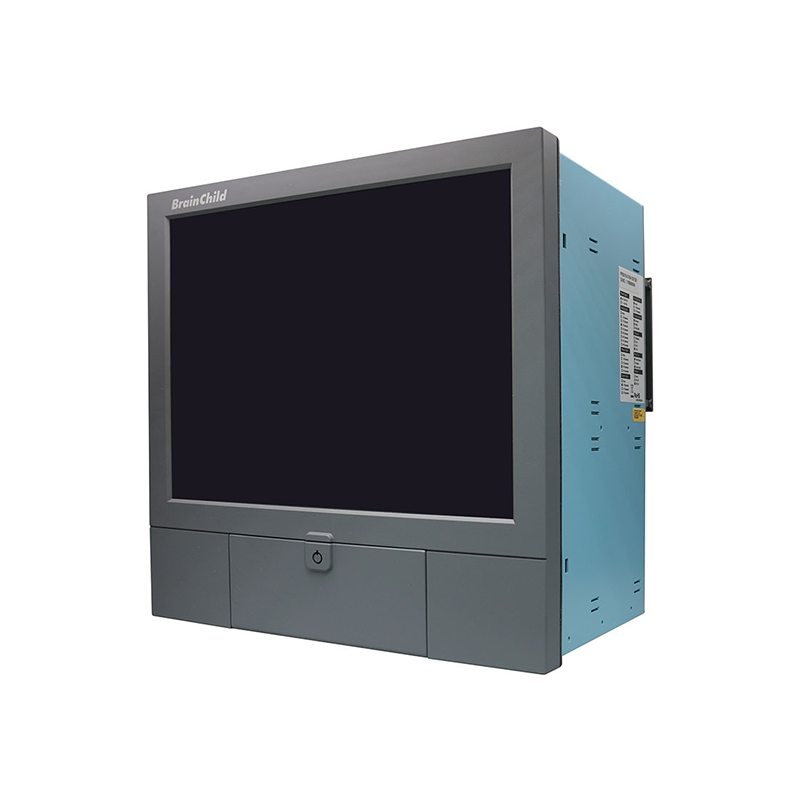

Chart Recorder Paperless Brainchild PR30 Side

PR Series Features

  • Touch Screen, TFT, 65K colour.
  • 100 msec. scan rate
  • Internal memory: 256 MB Flash
  • CPU: ARM Cortex-A8, 1Ghz
  • Power Supply: 90~250Vac Standard.
  • 11~36Vdc Optional
  • Standard: Ethernet, SD slot & USB.
  • Option: RS232/422/485 & Pulse input.
  • Protection: IP65 front & IP20 rear.
  • Standards: CE, cULus & RoHS.
  • Pulse input for flow applications.
  • Direct Printer connectivity.
  • Remote IO channels, Virtual channels.
  • Webserver & Email directly from Recorder.
  • Master & Slave, Modbus RTU and TCP protocols
  • Custom display pages similar to HMI.
  • Batch operations, built in security & FDA 21 CFR.
Brand: BRAINCHILD
Available on request
Request a quote
Scroll down for product range

The new PR series paperless recorders are launched in full product range with outstanding specifications and features. PR series includes a low-cost PR10, a popular PR20 and a high-end PR30. Compared with the first generation VR series, PR series offers much more, for example recorders in 4.3” & 12.1” displays in addition to 5.6”, 100 msec. sampling rate, external channels, batch, custom display, more strict FDA 21 CFR part 11, handwriting messages, SD slot, 2 USBs, pulse input, field calibration, Web Server, email, 19 languages, IP65, and yet in shorter depth 167mm.



TypePR10PR20PR30
Product positionLow-cost one, good for replacing 6-dotting chart recorders, and 1, 2, 3 pen recordersMedium size and powerful one, input numbers up to the highest 24 channelsBig size and high-end one, good for sophisticated applications, for example power industry
Input numbers3, 6 channels3, 6, 12, 18, 24channels6, 12, 18, 24, 30, 36, 42, 48 channels
True universal inputs Thermocouples: J, K, T, E, B, R, S, N, L, U, P, W5, W3, LR, A1, A2, A3, M
RTD: Pt50, Pt100, Pt200, Pt500, Pt1000 (α=0.00385), Pt50, Pt100 (α=0.00391), Cu10 (α=0.00427), Cu50, Cu100(α=0.00426, 0.00428), Ni100, Ni200, Ni500, JPt50, JPt100, JPt200, JPt500, JPt1000 (α=0.003916) Ni1000 (α=0.00617) mA, V, mV
The fastest sampling rateTo reach 100 msec / dot, default setting at 1 sec / dot
Math, External channels, Batch, Custom display, FDA 21 CFR part 11Math in standard version, others in Plus versions
Display4.3" TFT wide touch screen5.6" TFT wide touch screen12.1" TFT touch screen
Resolution480 x 272640 x 4801024 x 768
MTFB backlight at 25°C30,000 hrs60,000 hrs
BacklightLED
Screen saver, EmailYes
A faster CPUARM Cortex-A8, 1Ghz
Internal flash memory256 MB
RAM256 MB
EthernetModbus TCP/IP
RS-232/422/485Optional RS-232 or RS-422/485 Modbus RTU
SD card slot, USB host x 2Standard, one USB in the front, another USB in the back
Pulse inputOptional DI card offering either logic or high frequency pulse counter
START / STOP keyTo start / stop record and to turn off the display only, not recorder itself so that a quick start possible
Calibration correctionOn-site calibration possible, or using handy features of Offset and Gain for correction
MultilingualConvenient for local users by offering 19 languages including English, Japanese, Danish, Italian, Polish, Russian, Dutch, Korean, Thai, Turkish, Portuguese, Chinese (simplied, traditional), French, German, Spanish, Swedish, Brazil Portuguese, Czech, other languages negotiable
PC software historical viewer+ configurationStandard
Extensive software data acquisition studioOptional real-time monitoring
Power supply90-250VAC or 11-36VDC
Outer dimensions (W x H x L mm)144 x 144 x189144 x 144 x189288 x 288 x 189
Shorter mounting depth (mm)171171171
DIN panel cutout (W x H mm)137 x 137137 x 137281 x 281
ProtectionIP65 front, IP20 rear
Operating temperature0°C to 50°C
Storage temperature-30°C to 70°C
Safety standardsCE, cULus, RoHS

Product Range

Product Range:
CodeSpecificationsPriceQuantity
PR10

Low cost Paperless Recorder 4.3″
3, 6 channels

 $0.00
PR20

Popular Paperless Recorder 5.6″
3, 6, 12, 18, 24 channels

 $0.00
PR30

High-end Paperless Recorder 12.1″
3, 6, 12, 18, 24, 30, 42, 48 channels

 $0.00

Please contact us for pricing.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for Brainchild products. Please contact the Brainchild distributor in your country if you require sales or service support for Brainchild products.
