The SD24 was designed for the control of temperature, humidity and other physical values of general industrial equipment
Options:

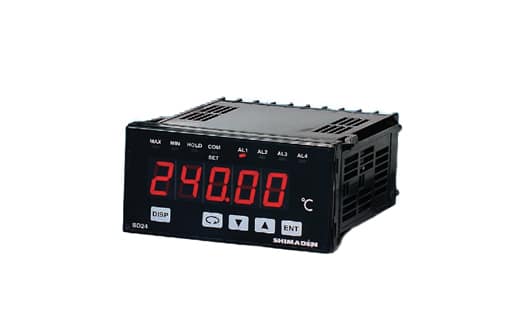

The SD24 is a high functionality type indicator of high precision ±0.1% FS + 1 digit, 1/1000°C display (Pt 0.000–30.000 °C).
It features peak hold, bottom hold, display hold function, external 2-point control input which are standard features.
A 5 digit bright display makes reading from long distance and low light locations easier. The SD24 supports Modbus/Shimaden communication protocols.
A six way rotary selector switch (KR17) is available for combined use on this unit.
Example Diagram
| General Specifications | |
|---|---|
| Data storage | Non-volatile memory (EEPROM) |
| Ambient conditions for operations | |
| Temperature | -10~50°C |
| Humidity | Max 90% RH (no dew condensation) |
| Elevation | Max 2000 m above sea level |
| Category | II |
| Pollution class | 2 |
| Storage temperature | -20~65°C |
| Supply voltage | 100~240V AC±10%, 50/60 Hz |
| Input/noise removal ratio | Normal mode minimum 40 dB (50/60 Hz) |
| Common mode minimum 120 dB (50/60 Hz) | |
| Insulation resistance | Between input/output terminals and power terminal Min. 500V DC, 20MΩ |
| Between ground and power terminal Min 500V DC, 20MΩ | |
| Dielectric strength | Between input/output terminals and power terminal 2300V AC 1 minute |
| Between ground and power terminal 1500V AC 1 minute | |
| Power consumption | Max 13 VA for 100 – 240V AC |
| Max 9 VA for 24V AC | |
| Max 7 W for 24V DC | |
| Applicable standards EMC | EN61326: 2006 |
| Safety | IEC61010-1 and EN61010-1: 2001 |
| Dust-proof and drip-proof structure | IP66 equivalent |
| Material of case | PPO resin molding (flame resistant grade UL94V-1) |
| External dimensions | H48×W96×D111 mm (in panel 100 mm) |
| Panel thickness | 1.0~4.0 mm |
| Panel cutout | H45×W92 mm |
| Weight | 400 g maximum |
| ITEM | CODE | SPECIFICATIONS | |||||||
| SERIES | SD24- | DIN 48×96 Digital Indicator, DI 2 points | |||||||
| INPUT | 8 | Universal-input Input resistance: 500kΩ minimum • Thermocouple • R.T.D. Pt100/JPt100 • Voltage (mV): -10~10, 0~10, 0~20, 0~50, 10~50, 0~100, -100~100mV DC |
Refer to “Measuring Range Codes” for details of input type and measuring range | ||||||
| 6 | Voltage (V) Input resistance: 500kΩ minimum -1~1, 0~1, 0~2, 0~5, 1~5, 0~10, -10~10V DC |
Voltage mV, V, Current mA rangeScaling Possible (inverse scaling possible)
Range: -9999~30000 units Span: 10~40000 units |
|||||||
| 4 | Current (mA) Receiving impedance: 250Ω 0~20, 4~20mA DC |
||||||||
| POWER SUPPLY | 90- | 100~240V AC ±10%, (50/60 Hz) | |||||||
| 08- | Discontinued | ||||||||
| ALARM OUTPUT (OPTION) | 0 | None | |||||||
| 1 | 1 Individually set/output 4 points (a contact) | ||||||||
| 2 | 2 Individually set/output 2 points (c contact) | ||||||||
| ANALOG OUTPUT/ CONMMUNICATION FUNCTION (OPTION) |
00 | None | |||||||
| 03 | 0~10mV DC Output resistance: 10Ω | Scaling Possible (inverse scaling possible) (within measuring range) | |||||||
| 04 | 4~20mA DC Load resistance: 300Ω max. | ||||||||
| 06 | 0~10V DC Load resistance: 2mA max | ||||||||
| 50 | RS-485 | ||||||||
| 70 | RS-232C | ||||||||
| SENSOR DC POWER SUPPLY (OPTION) | 0 | Without | |||||||
| 1 | With 24V DC 50 mA | ||||||||
| REMARKS | 0 | Without | |||||||
| 9 | With (Please consult before ordering) | ||||||||
SD24 Series are Shimaden Lite Software Compatible – Software Available “Free”
