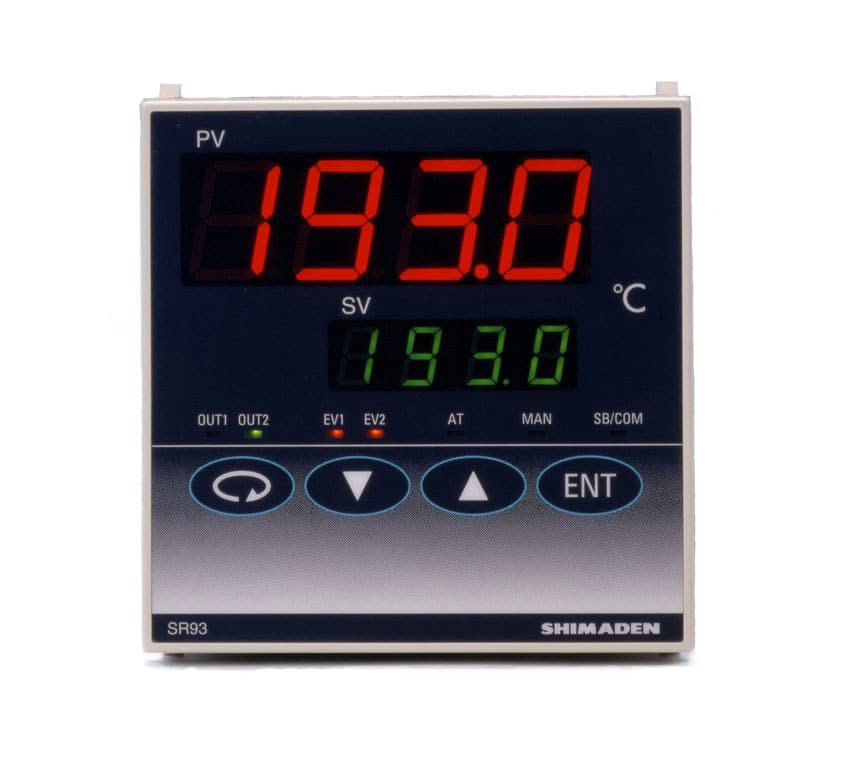

SR93 – 96 x 96mm Digital Controller

The SR90 series is extremely versatile which makes it suitable for a wide range of applications

SR93 Features

Multi-purpose controller for multi-input (thermocouple, RTD, mV)
Dustproof and drip-proof structure suitable for IP66
Auto tuning controller with PID
Standard alarms and event output
Optional heater break alarm
Communicates with MicroScan SCADA and Shimaden Lite software
Heating and cooling outputs (optional)
Outputs: Current, SSR drive, Voltage, Relay
Optional retransmission of process value or set value
Optional set value bias by digital input
Options:
- Second control output for Heat cool control (Add $100.00)
- RS232/485 Communications (Add $160.00)
- Analogue retransmission output (Add $100.00)
- Set value bias / DI (Add $63.00)

Brand: SHIMADEN
Usually in stock

Request a quote
Scroll down for product range

The SR90 series are low cost, high featured controllers. With ±0.3% accuracy and a list of options including selectable input, second control output for Heat cool control, Auto / Manual, RS232/485 Communications, selectable event outputs, analogue retransmission output and 240Vac or 24Vac/dc power supply.

The SR90 series is extremely versatile which makes it suitable for a wide range of applications.

Download the PDF brochure for detailed information or give us a call, our friendly sales staff would be pleased to discuss your application and the SR90 series controllers with you.

Newly added features under the new specifications of the SR90 series (Ver. 1.42):

1. STBY function is newly introduced. PV display will switch between PV/STBY when STBY is activated. Indication of PV value at PV mode. Indication of STBY letters at STBY mode ON/OFF switching function for EV output is newly introduced under STBY mode.

2. DI allocation function is newly introduced. SB/STBY are selectable.

3. Modbus ASCII/RTU communication functions are newly introduced.

4. Kelvin range is newly introduced.
K 10.0~350.0K
AuFe-Cr 0.0~350.0K
K 10~350K
AuFe-Cr 0~350K

General specifications SR93
Data storage	Non-volatile memory (EEPROM)
Environmental conditions for instrument operation
Temperature	−10~50°C
Humidity	90% RH or less (no dew condensation)
Height	2000m from the sea level or lower
Category	II
Degree of pollution	2
Storage temperature	−20~65°C
Supply voltage	Either 100-240V AC±10% 50/60Hz or 24V AC/DC±10% to be designated.
Power consumption	SR93: 100-240VAC 15VA maximum for AC; 8W for DC 24V; 9VA for AC 24V
Input/noise removal ratio	50 dB or higher in normal mode (50/60 Hz) 130 dB or higher in common mode (50/60 Hz)
Applicable standards	Safety: IEC1010 and EN61010-1
EMC	EN61326
Insulation resistance	Between input/output terminals and power terminal 500V DC 20MOhms or above; Between input/output terminals and protective conductor terminal 500V DC 20MOhms or above
Dielectric strength	Between input/output terminals and power terminal 2300V AC/minute; Between power terminal and protective conductor terminal 1500V AC/minute
Protective structure	Only front panel has dust-proof and dripproof structure equivalent to IP66.
Material of case	PPO resin molding (equivalent to UL94V-1)
External dimensions	SR93: H96 × W96 × D111 (Panel depth: 100) mm
Mounting	Push-in panel (one-touch mount)
Panel thickness	1.0~4.0 mm
Panel cutout	SR93: H92 × W92 mm
Weight	SR93: Approximately 330 g

ITEM	CODE								SPECIFICATIONS
SERIES	SR93-								MPU-Based Auto-Tuning PID Digital Controller, DIN H96 × W96 × D110mm
	SR94-								MPU-Based Auto-Tuning PID Digital Controller, DIN H96 × W48 × D110mm
INPUT		8	Multi input						Thermocouple: B, R, S, K, E, J, T, N, PLII, Wre5-26 {U, L (DIN 43710)} R.T.D.: Pt100 Ω /JPt100 Ω Voltage: -10~10, 0~10, 0~20, 0~50, 10~50, 0~100mV DC
		4							Current (mA): 0~20, 4~20mA DC Receiving impedance: 250 Ω	For voltage and current input:Scaling Possible Range: -1999~9999 Span: 10~5000 Note: Inverse scaling is not possible
		6							Voltage (V): -1~1, 0~1, 0~2, 0~5, 0~10V DC Load resistance: 600Ω max
CONTROL OUTPUT (1)			Y-						Contact: 1a, Contact capacity: 240V AC 2A/resistive load Proportional cycle: 1~120 sec
			I-						Current: 4~20mA DC Load resistance: 600Ω max
			P-						SSR drive voltage: 12V±1.5V DC/30mA max. Proportional cycle: 1~120 sec
			V-						Voltage: 0~10V DC Load current: 2mA max
CONTROL OUTPUT (2) (OPTION)				N-					None
				Y-					Contact: 1a, Contact capacity: 240V AC 2A/resistive load Proportional cycle: 1~120 sec
				I-					Current: 4~20mA DC Load resistance: 600Ω max (RA when shipped)
				P-					SSR drive voltage: 12V±1.5V DC/30mA max Proportional cycle: 1~120 sec
				V-					Voltage: 0~10V DC Load current: 2mA max
POWER SUPPLY					90-				100V~240V AC±10%, 50/60Hz
					08-				24V AC/DC±10%, 50/60Hz
EVENT OUTPUT/HEATER BREAK ALARM (OPTION)						0			None
						1			Event output (2a) Ev1, Ev2 Contact capacity: 240V AC 1A/resistive load	Note: Available only when control output (1) is Y or P is selected
						2			Event output (Ev1) + Heater break alarm (with CT30A)
						3			Event output (Ev1) + Heater break alarm (with CT50A)
ANALOG OUTPUT (OPTION)							0		None
						Analog output	30		Voltage: 0~10mV DC, Output resistance: 10Ω
							40		Current: 4~20mA DC, Load resistance: 300Ω max
							60		Voltage: 0~10V DC, Load current: 2mA max
						Set value bias (S V bias)	08		1 point (setting range: -1999~5000), Non-voltage contact or Open collector input Open collector input rating: approx. 5V/1mA max
						Analog output +Set value bias (S V bias)	38		Voltage: 0~10mV DC, Output resistance: 10Ω SV bias 1 point
							48		Current: 4~20mA DC, Load resistance: 300Ω max SV bias 1 point
							68		Voltage: 0~10V DC, Load current: 2mA max SV bias 1 point
						Communication	05		RS-485
							07		RS-232C
REMARKS								0	Without
								9	With (Please consult before ordering.)

SR90 Series are Shimaden Lite Software Compatible – Software Available “Free”

SR90 V1.42 supports Modbus/Shimaden communication protocols

Download Shimaden Lite Software here

Shimaden SR93 Digital Controller - Instruction Manual 835.01 KB
Shimaden SR93 Digital Controller - Communication Interface Manual 558.29 KB
Shimaden Digital Controllers SR90 Series - Brochure 128.82 KB

Product Range

Product Range:
Code	Specifications	Price
SR93-8Y-N-90-1000	Multi input, Contact output (relay), 2 event relays, 100~240Vac	$398.00
SR93-8Y-N-08-1000	Multi input, Contact output (relay), 2 event relays, 24Vac/dc	$478.00
SR93-8Y-Y-90-1000	Multi input, Contact output (relay), Contact output (2), alarms, 100~240Vac	$498.00
SR93-8V-N-90-1000	Multi input, Voltage output (relay), 2 event relays, 100~240Vac	$398.00
SR93-8P-N-90-1000	Multi input, SSR output, 2 event relays, 100~240Vac	$398.00
SR93-8I-N-90-1000	Multi input, 4~20mA output, 2 event relays, 100~240Vac	$398.00
SR93-4Y-N-90-1000	4~20mA input, Contact output (relay), 2 event relays, 100~240Vac	$398.00
SR93-4I-N-90-1000	4~20mA input, 4~20mA output, 2 event relays, 100~240Vac	$398.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.
