The XI-P series input powered isolators is available with 1,2 or 4 transmitters per enclosure. It comes in a compact DIN rail mount design making it easy and convenient to install. The XI-P series is a low cost option offering a high accuracy.
XI-P – Input Powered Isolators
Isolating 4~20mA Input to 4~20mA Output Input Powered Transmitter
XI-P Features
- No power supply needed – input powers transmitter
- Ideal for isolating a typical 4~20mA loop
- Also good for line filtering at the receiving end of line
- Input to output isolation 1kV
- High accuracy
- Reverse polarity protected
- Compact DIN rail mount enclosure
- Available with 1, 2 or 4 transmitters per enclosure
- Easy to install
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
| TYPE | XI-P |
| Input | 4~20mA or 0~20mA, Must be inserted in a current loop |
| Maximum Current≤50mA, Output Current tracks Input Current | |
| Minimum XI-P Loop Resistance @ 20mA is 200Ω(4V) with 0Ω Output Load | |
| Maximum XI-P Loop Resistance @ 20mA is 800Ω(16V) with 600Ω Output Load | |
| Output | 4~20mA or 0~20mA, Output Current tracks Input Current |
| Output Load = Input Effective Loop Resistance - 200Ω(4V) | |
| Minimum Output Load = 0Ω at 20mA (0V) | |
| Maximum Output Load = 600Ω at 20mA (12V) | |
| Accuracy | < ±0.15% Typical at 250Ω Output Load |
| < +0.1%/100Ω Typical for Output Load < 250Ω | |
| < -0.1%/100Ω Typical for Output Load > 250Ω | |
| EMC Emissions Compliance | EN 55022-A |
| EMC Immunity Compliance | EN 50082-1 |
| Safety Compliance | EN 60950 |
| Linearity & Repeatability | <±0.1% FSO Typical |
| Ambient Drift | <±0.01%/C FSO Typical |
| Noise Immunity | 125dB CMRR Average (1.0kVdc Limit) |
| R.F. Immunity | <1% Effect FSO Typical |
| Isolation Test Voltages | Between Input and Output: 1000Vdc for 1min |
| Between the Separate XI-P transmitters: 1000Vdc for 1min | |
| Response Time | 100msec Typical (From 10 to 90% 25msec Typical) |
| Operating Temperature | 0°C~70°C |
| Storage Temperature | -20°C~80°C |
| Operating Humidity | 5~85%RH Max, Non-Condensing |
| Mounting | 35mm Symmetrical Mounting Rail |
| Dimensions | L=100, W=22.5, H=100mm |
| Note: Specifications unless stated otherwise are based on a XI-P with a 250R load on the output | |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

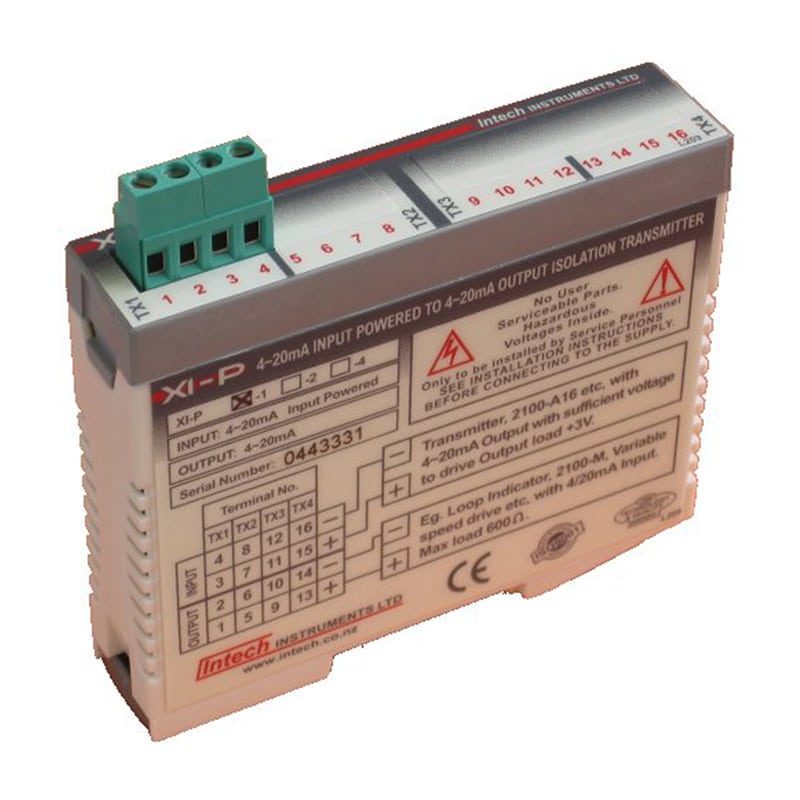

| XI-P1 | Input Powered Isolator – 1 Channel Input Powered isolator | $330.00 | |||||||||

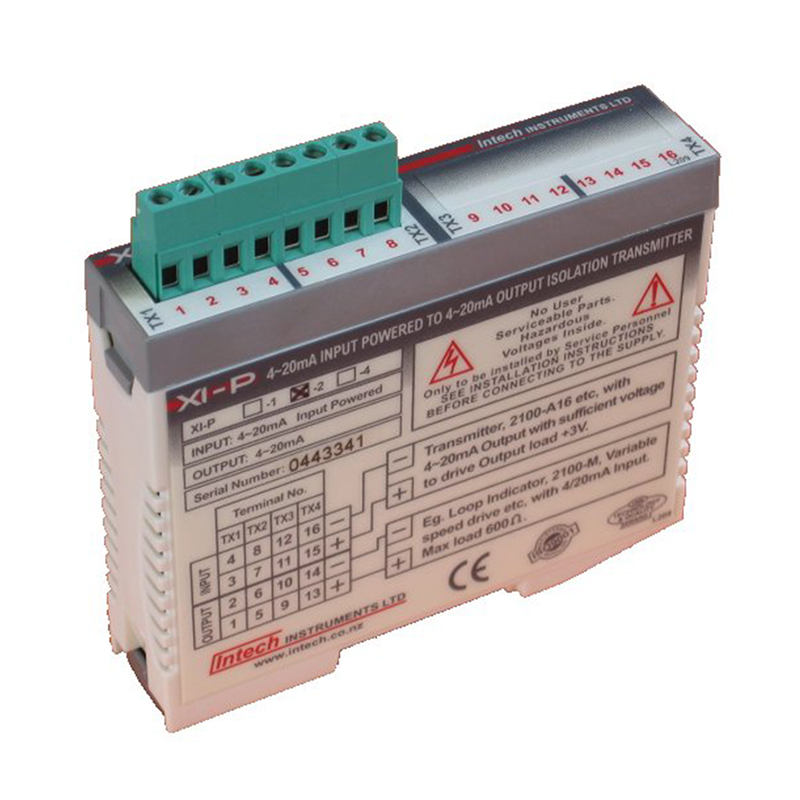

| XI-P2 | Input Powered Isolator – 2 Channel Input Powered isolator | $580.00 | |||||||||

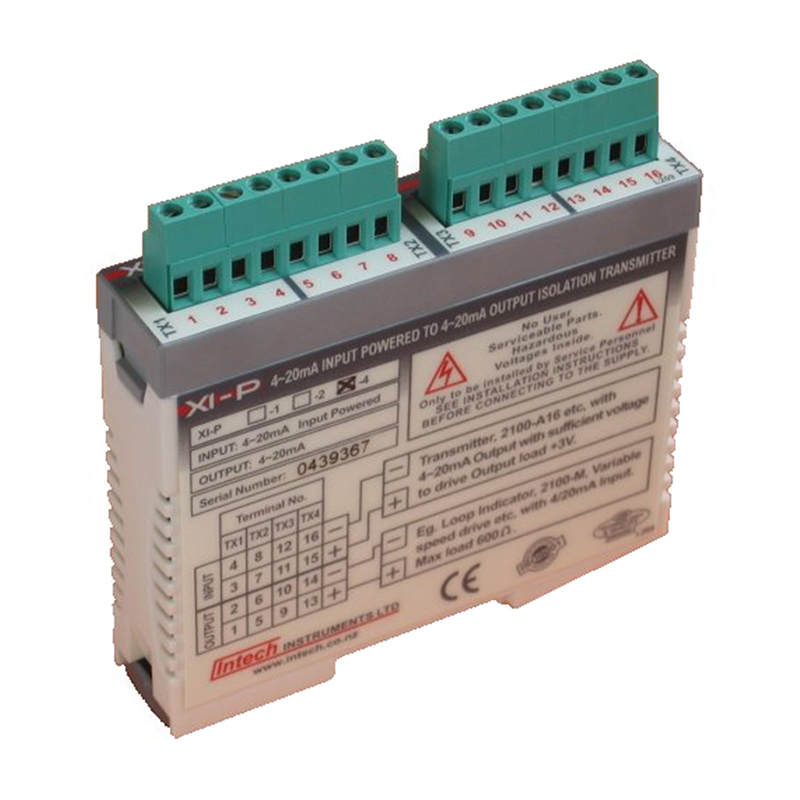

| XI-P4 | Input Powered Isolator – 4 Channel Input Powered isolator | $845.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech is our own brand of products, for all aftersales and technically support please contact us.
