This auxiliary-powered isolator is designed to measure signals from position, acceleration, current, and a wide range of other industrial sensors with exceptional speed, accuracy, and stability. With isolation capabilities up to 2.5kV, it safeguards your control system from transients and noise. The device accepts a 4–20mA process current input and delivers an active 4–20mA output signal, ensuring reliable and precise performance in demanding environments.

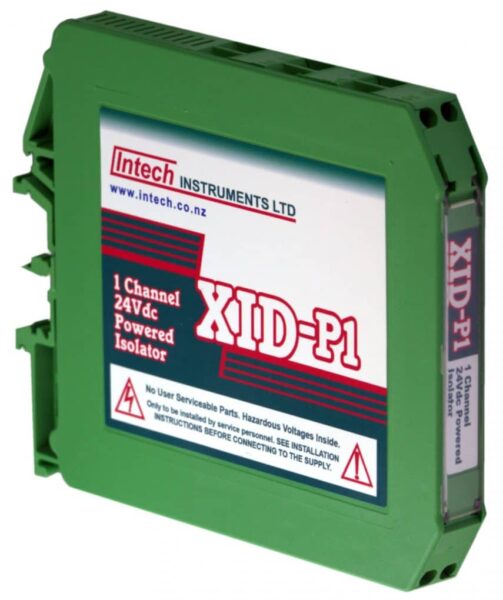

XID-P1 – 24Vdc Powered Isolator
Isolating 4~20mA Input to 4~20mA Output 24Vdc Powered Transmitter
XID-P1 Features
- Ideal for isolating a typical 4~20mA current loop
- Device power supply powers the output loop
- Input to output isolation 2.5KV
- High accuracy 0.03%
- Reverse polarity protected
- Compact DIN rail mount enclosure
- Easy to install
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
| TYPE | XID-P1 |
| Input | 4~20mA, Must be inserted into a current loop |
| Input Voltage Protection | 30Vdc |
| Current Protection | PTC |
| Output | 2 wire 4~20mA |
| Output Load Resistance | 500Ω Max |
| Power Supply | 10~30Vdc, 0.8W max (Isolated from Input & Output) |
| EMC Emissions Compliance | EN 61326-1 |
| EMC Immunity Compliance | EN 61326-1 |
| Safety Compliance | EN 61010-1 |
| Accurate to | <±0.03% of span typical |
| Linearity & Repeatability | <±0.03% of span typical |
| Ambient Drift | <±0.01%/°C of span typical |
| R.F. Immunity | <0.5% Effect of span typical |
| Isolation Test Voltages | Between Input and Output: 2.5KV |
| Between Power and Input / Output 2.5KV | |
| Between the separate XID-P transmitters: 2.5KV | |
| Response Time | <50msec (From 0~90%, 100~10%) |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -20°C~85°C |
| Calibration Temperature | 20°C~28°C |
| Operating Humidity | 5~85%RH Max, Non-Condensing |
| Mounting | 35mm Symmetrical Mounting Rail |
| Dimensions | H=90, W=12.5, D=112mm |
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| XID-P1 | Single Channel input 24Vdc powered isolator | $288.00 | |||||||||
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Intech is our own brand of products, for all aftersales and technically support please contact us.
