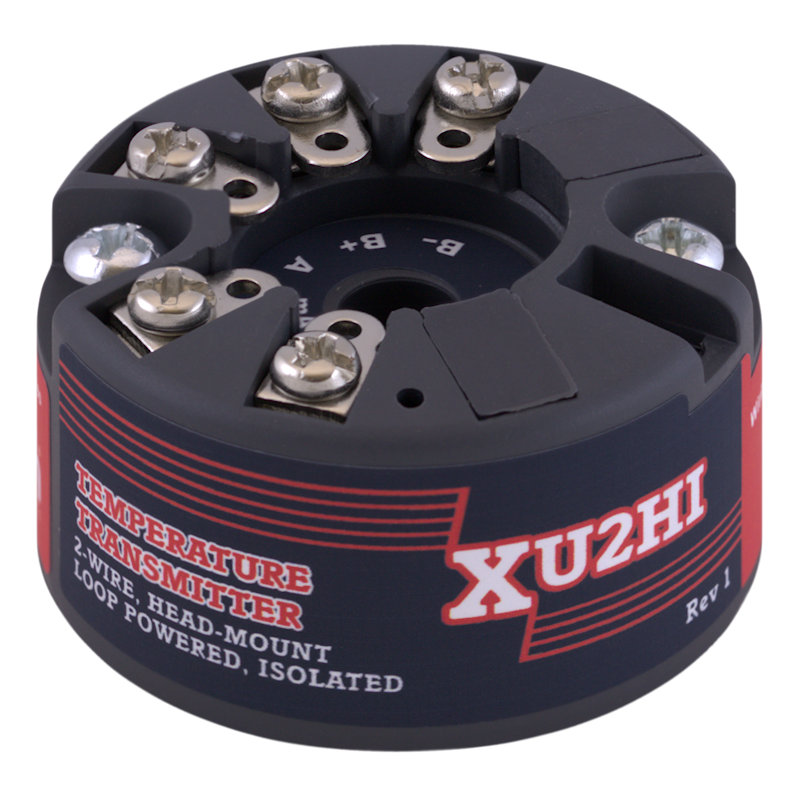

USB Programmable, Isolating, In-Head RTD Input Single Transmitter
The XU2HI features a isolated design and is loop powered for streamlined operation. Fast, hassle-free USB programming using XU-USB programming key and the XU Software.
Additionally, the sensor’s enhanced EMC specifications ensure reliable performance in electrically noisy environments.
| TYPE | XU2HI |
| Output | 2-wire 4~20mA (Loop Powered) |
| Power Supply | 9.5~36Vdc |
| Supply Voltage Sensitivity | <±0.005%/V FSO |
| Output Load Resistance | 700Ω at 24Vdc (50Ω/V above 9.5Vdc) |
| Maximum Output | Current Limited to <28mA (Emission and Immunity) |
| Emissions Compliance | EMC EN 61326 |
| Immunity Compliance | EMC EN 61326 |
| Safety Compliance | EMC EN 61010-1 |
| Accurate to | <±0.03% FSO Typical |
| Ambient Drift | <±0.003%/°C FSO Typical |
| Noise Immunity | 125dB CMRR Average (2.0kVdc Limit) |
| R.F. Immunity | <1% effect FSO Typical |
| Isolation Test Voltages | Between Input and Output: 3750Vac for 1min |
| Response Time | 400msec Typical (10~90% 300msec Typical) |
| Sensor Fail | Low 3.8mA, High 21mA |
| Startup Time | 3 seconds, 3.7mA output |
| Operating Temperature | -20°C~85°C |
| Storage Temperature | -20°C~100°C |
| Operating Humidity | 5~85%RH Max (Non-Condensing) |
| Mounting Head | Mount |
| Dimensions | H=44, W=44, D=23mm |
| ITEMS | CODE | DESCRIPTION | |||
| SERIES | XU2HI– | Head Mount RTD Transmitter Isolated | |||
| Type of Input | Pt100- | RTD Pt100 DIN (Options JIS & CN10) | |||
| Pt1000- | RTD Pt1000 DIN (Options JIS & CN10) | ||||
| Tc ()- | Thermocouple Type; B, E, J, K, N, R, S, T | ||||
| Measuring range | – | State Measuring Range | |||
| Output Action on Sensor Fail | US | Upscale | |||
| DS | Downscale | ||||
Ordering Example:
* XU2HI-Pt100-0~100C-DS = XU2HI; RTD Pt100 DIN 0~100°C Input; Downscale; 4~20mA Output.
* XU2HI-Tc K-0~1200C-US = XU2HI; Thermocouple Type K 0~1200°C Input; Upscale; 4~20mA Output.
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| XU2HI | In-Head Isolated Transmitter, Thermocouple Type K, 0°C~1200°C Input Standard, Upscale, 4~20mA Output | $215.00 | |||||||||
| XU-USB_15 | USB Programming cable, used to set up different ranges. | $120.00 | |||||||||
Other ranges available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Not sure what you need? Ask us anything!
